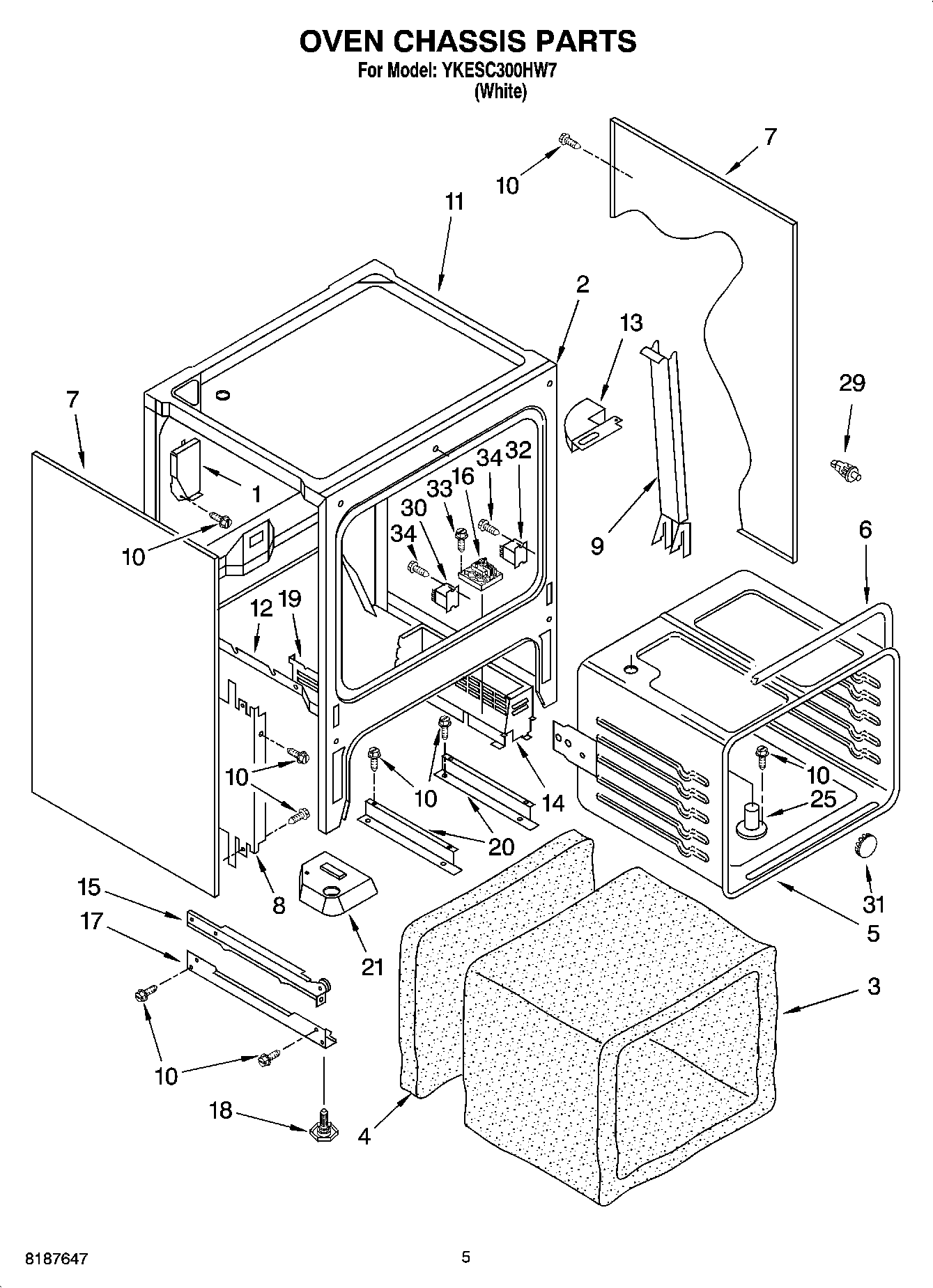

YKESC300HW7 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Shield, Insulation
9	Duct, Side Fan
10	WP4159387 Whirlpool Compactor Screw
11	Burner Box
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
21	Block, Balance
25	Vent Tube
29	Door Switch
30	Relay, Dlb.
31	Button, Plug
32	Relay
33	Screw, (3) No.8 x 1``
34	Screw
