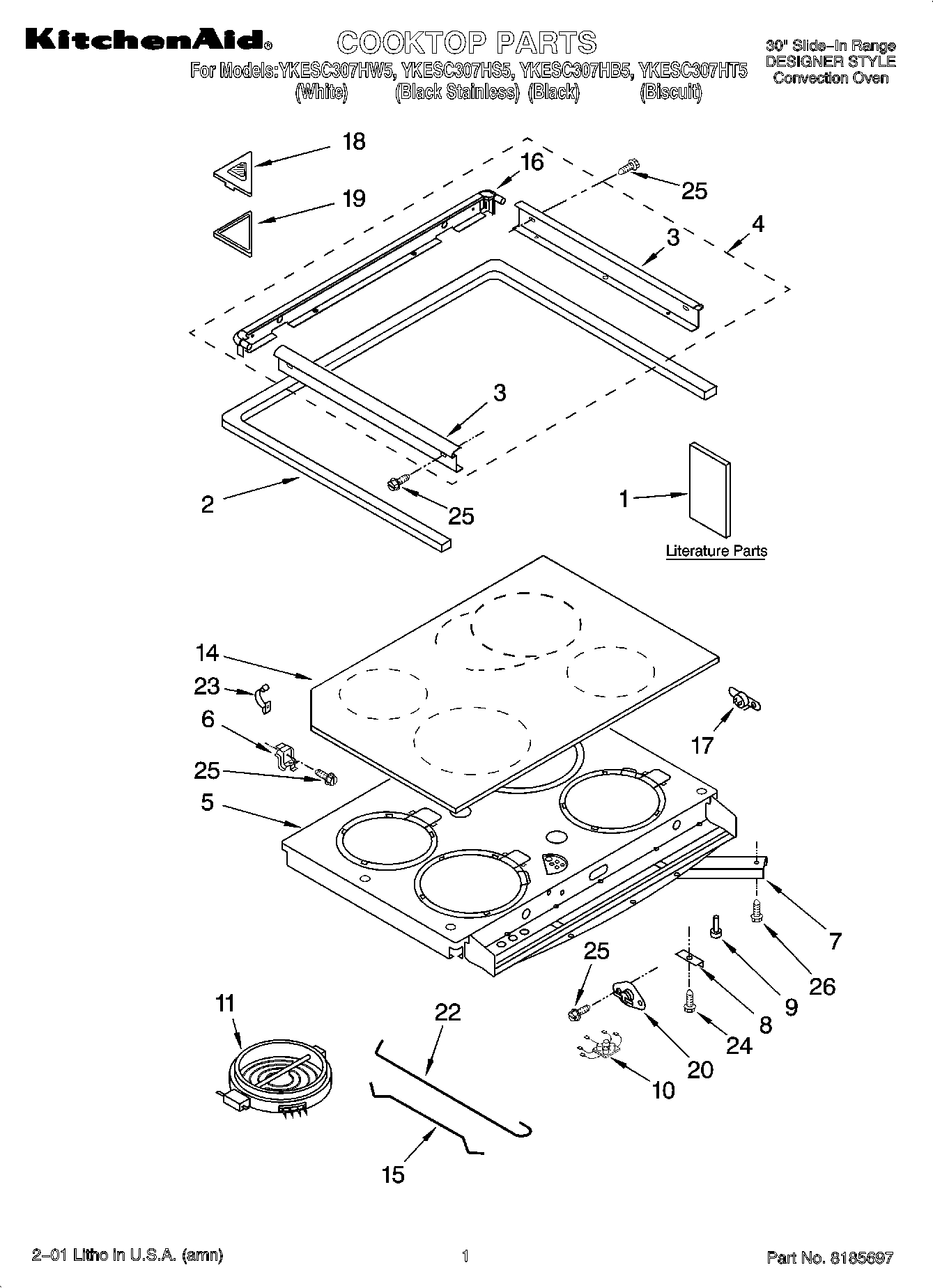

YKESC307HB5 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	WPL LIT9753027
1	WPL LIT9752775
1	Literature Parts (Use & Care Guide)
1	SMART & EASY GUIDE (FRENCH)
1	Literature Parts (Smart & Easy Guide)
1	Use & Care Guide (French)
1	Literature Parts (Wiring Diagram)
2	Gasket, Cooktop
3	Trim, Side Frame (Black)
3	Trim, Side Frame (White)
3	Trim, Side (Biscuit)
4	Frame, Cooktop (Biscuit)
4	Frame, Cooktop (White)
4	Frame, Cooktop (Black)
5	Support, Element
6	Bracket, Pivot
6	Washer, Pivot
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823697 Whirlpool Surface Element
11	W10823692 Whirlpool Dual Radiant Element
11	W10823698 Whirlpool Surface Element Right Rear
11	W10823699 Whirlpool Right Front Surface Element
14	Cooktop, Ceran (White)
14	Cooktop, Ceran (Black)
14	Cooktop, Ceran (Biscuit)
15	Rod, Small Ceran Element
16	Trim, Back (Incl. End Caps) (Biscuit)
16	Trim, Rear Frame (Incls. End Caps) (Black)
16	Trim, Rear (Includes End Caps) (White)
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	WP9759944 Whirlpool Thermostat
22	Rod, Large Ceran Element
23	8528351 Whirlpool Clip
24	Screw, 10-16 x 1
25	WP4159387 Whirlpool Compactor Screw
26	Screw (4) 10 x 1/2
