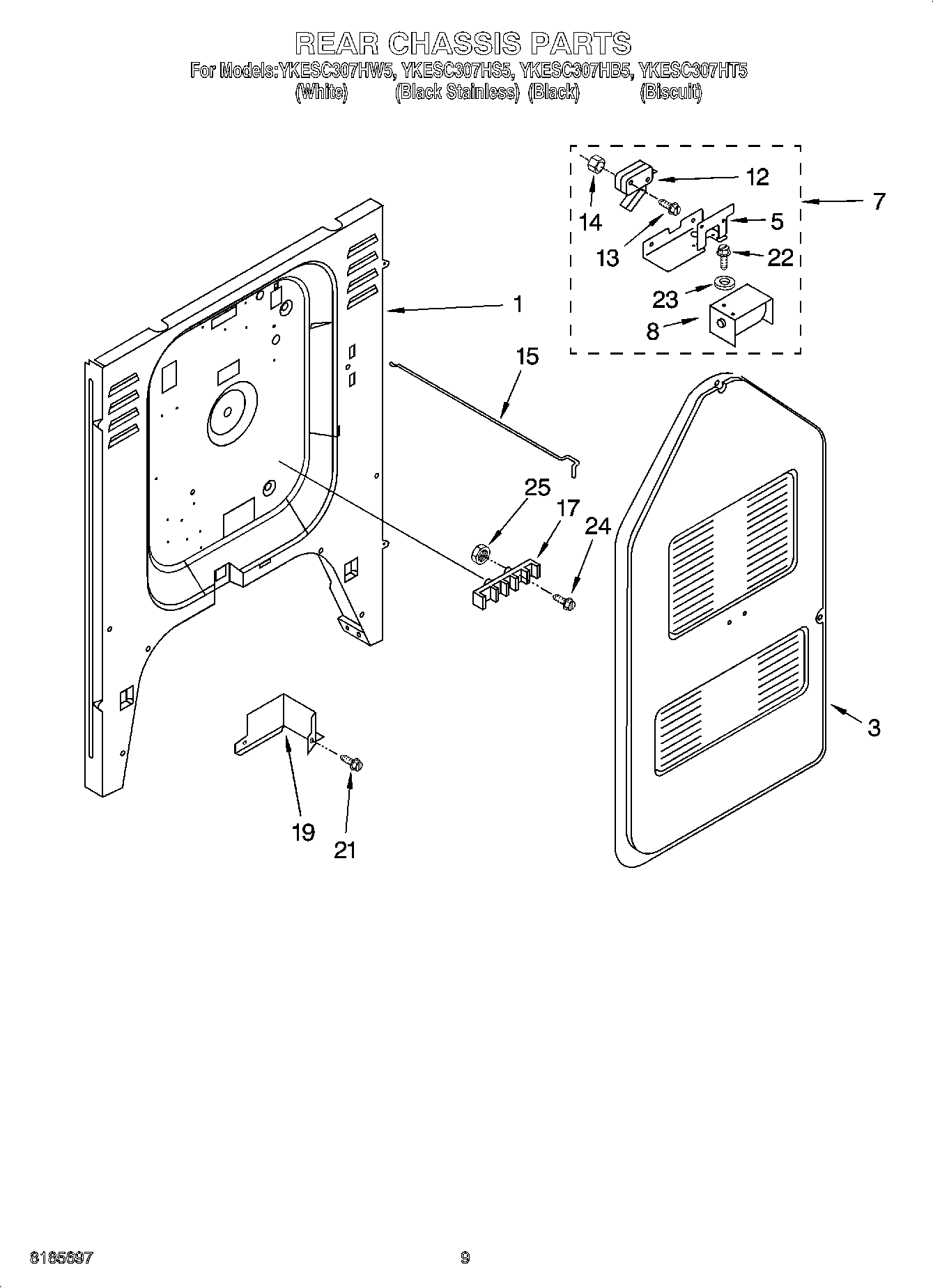

YKESC307HB5 06 – REAR CHASSIS PARTS

Products

PositionProduct
1Back panel, Chassis
3Panel, Rear Cover
5Bracket, Lock
7Oven Lock Assembly
8Solenoid
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
17Clip, Ground Wire
19WPL 9751798
21Screw (4) 10 x 1/2
22Screw (2) 10-32 x 5/16
23Washer (2)
24Screw, (2) 10-16 x 1
25WP112432 Whirlpool Nut Assembly
