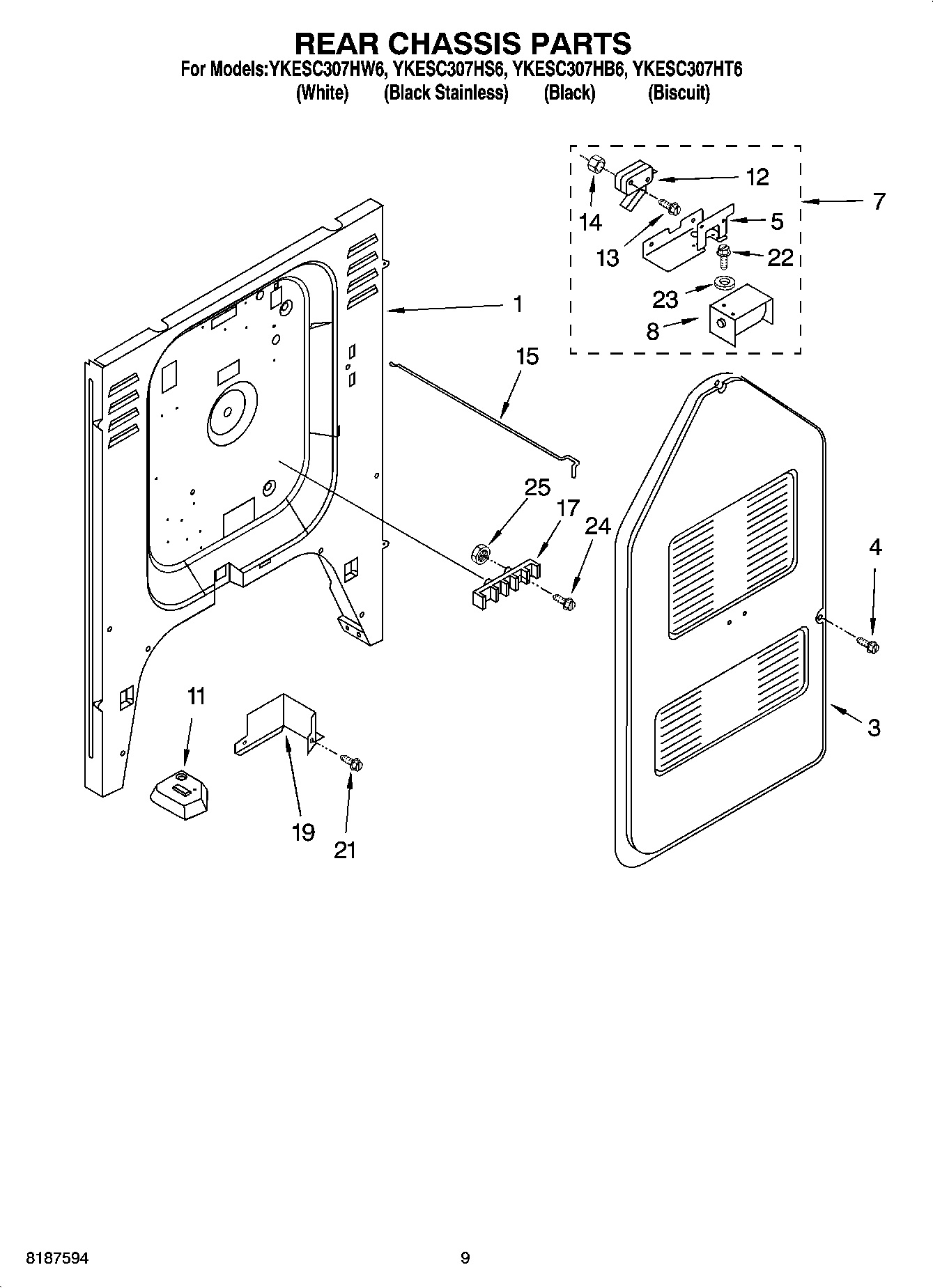

YKESC307HB6 06 – REAR CHASSIS PARTS

Products

Position	Product
1	Back panel, Chassis
3	Panel, Rear Cover
4	Screw (4) 10 x 3/8
5	Bracket, Lock
7	Oven Lock Assembly
8	Solenoid
11	Block, Balance
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
17	Clip, Ground Wire
19	WPL 9751798
21	Screw (4) 10 x 1/2
22	Screw (2) 10-32 x 5/16
23	Washer (2)
24	Screw, (2) 10-16 x 1
25	WP112432 Whirlpool Nut Assembly
