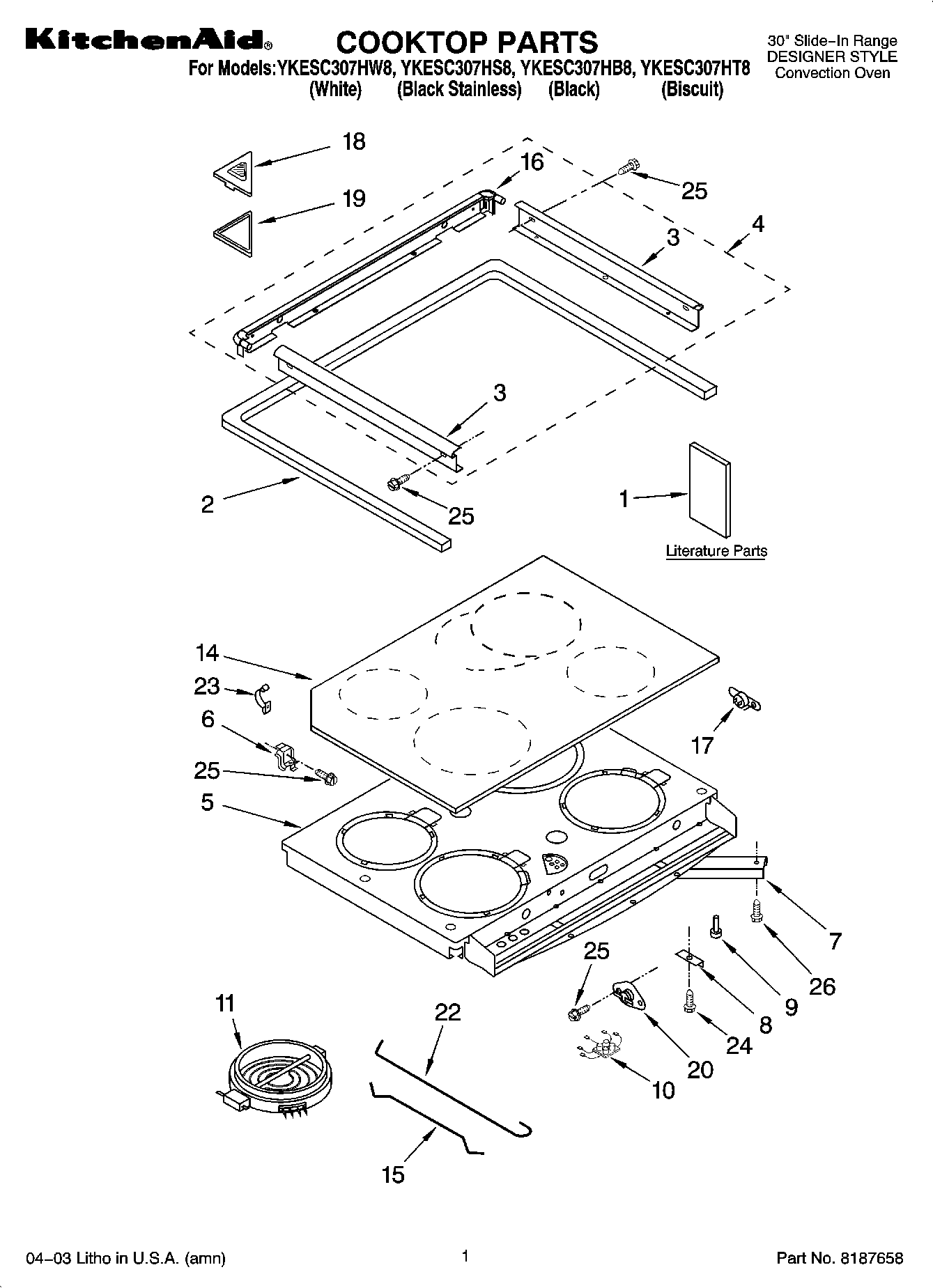

YKESC307HB8 01 – COOKTOP PARTS

YKESC307HB8 01 – COOKTOP PARTS

Written by

in

YKESC307HB8 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
1Use & Care Guide (French)
1Literature Parts (Installation Instructions)
1WPL LIT9752775
2Gasket, Cooktop
3Trim, Side Frame (White)
3Trim, Side Frame (Black)
3Trim, Side (Biscuit)
4Frame, Cooktop (Black)
4Frame, Cooktop (White)
4Frame, Cooktop (Biscuit)
5Support, Element
6Bracket, Pivot
6Washer, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823698 Whirlpool Surface Element Right Rear
11W10823692 Whirlpool Dual Radiant Element
11W10823699 Whirlpool Right Front Surface Element
11W10823697 Whirlpool Surface Element
14Cooktop, Ceran (Biscuit)
14Cooktop, Ceran (White)
14Cooktop, Ceran (Black)
15Rod, Small Ceran Element
16Trim, Rear (Includes End Caps) (White)
16Trim, Back (Incl. End Caps) (Biscuit)
16Trim, Rear Frame (Incls. End Caps) (Black)
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20WP9759944 Whirlpool Thermostat
22Rod, Large Ceran Element
238528351 Whirlpool Clip
24Screw, 10-16 x 1
25WP4159387 Whirlpool Compactor Screw
26Screw (4) 10 x 1/2
