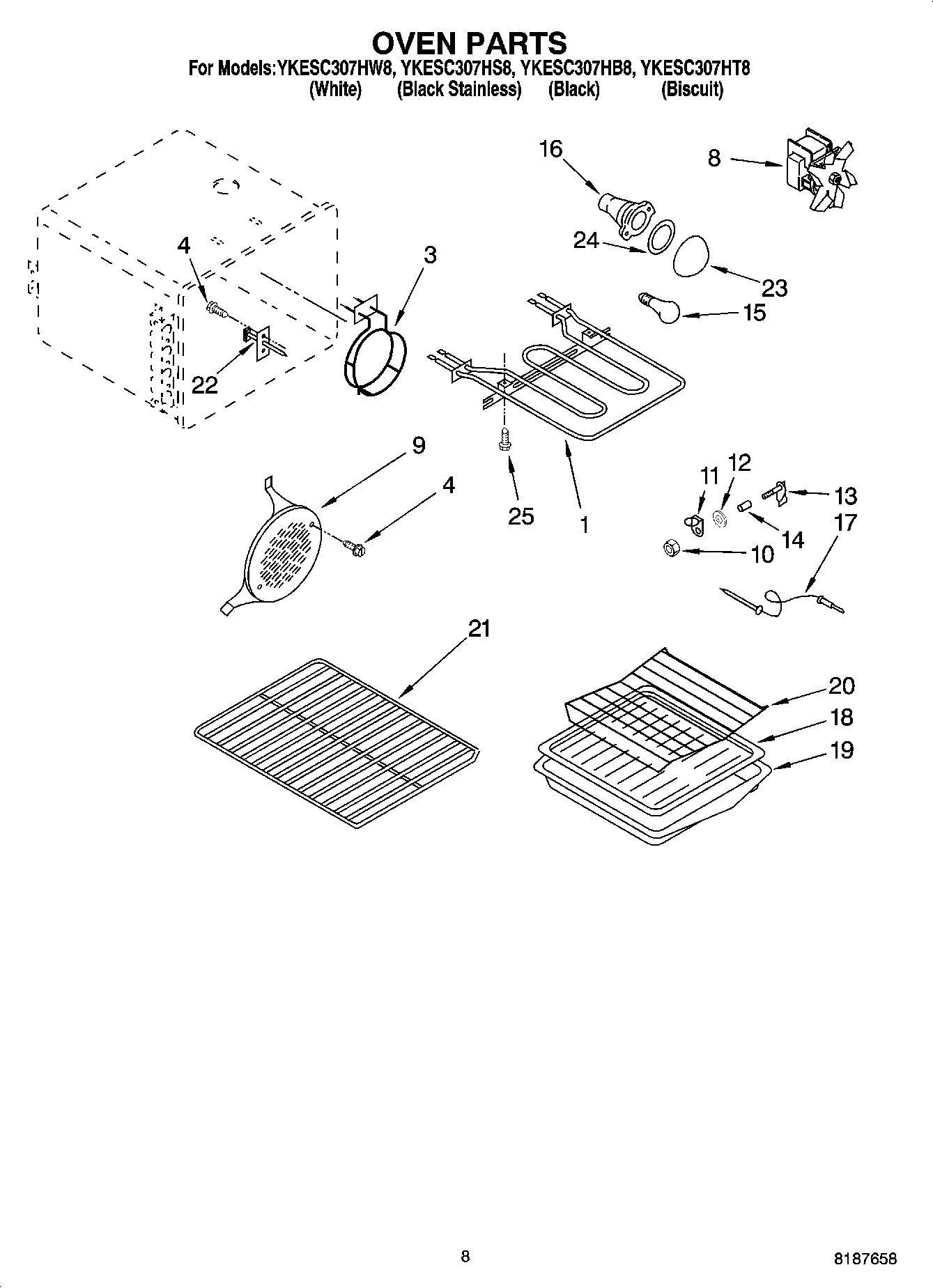

YKESC307HB8 05 – OVEN PARTS

Products

Position	Product
1	Element, Broil
3	WPW10280189 Whirlpool Element
8	Fan Assembly
8	Screw (4) 10 x 1/2
9	Screw
9	Baffle, Convection
10	Lock-Nut, Cvr.Jack
11	Jack Cover
12	Gasket
13	Receptacle, Probe
14	Spacer – Tubing
15	RANGE ONLY 40W 120V APPL BULB
16	W11594027 Whirlpool Range Oven Light Socket
17	Probe
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Roasting
21	Rack, Standard (3)
22	Sensor
23	WP9781049 Whirlpool Light Lens
24	WP3184533 Whirlpool Range Light Lens Gasket
25	340184 Whirlpool Screw
