YKESC307HS5 04 – CONTROL PANEL PARTS
Written by
in

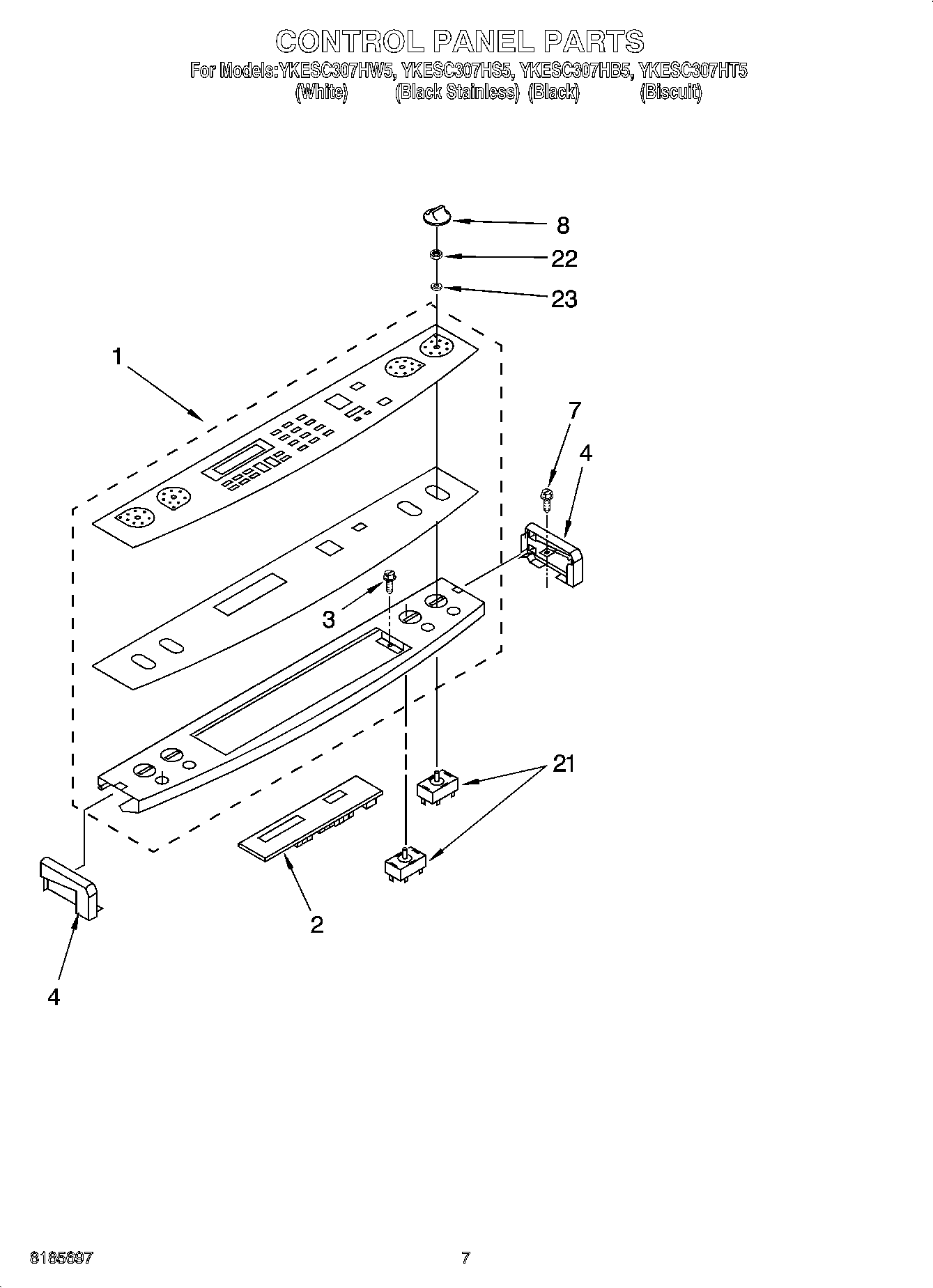

YKESC307HS5 04 – CONTROL PANEL PARTS
Products
Position
Product
1
Console, Glass (Biscuit)
1
Console, Glass (Black)
1
Console, Glass (White)
2
Timer, Electronic
3
Screw
4
End Cap (Right Hand) (White)
4
(End Cap Left Hand) (White)
4
(End Cap Left Hand) (Black)
4
End Cap (Left Hand) (Biscuit)
4
End Cap (Right Hand) (Biscuit)
4
End Cap Right Hand (Black)
7
WP4159387 Whirlpool Compactor Screw
8
WP9750372FW Whirlpool Knob Assembly
8
WP9750372FF Whirlpool Knob
8
WP9750372FC Whirlpool Knob
21
Switch, Infinite (1700W, RF)
21
Switch, Infinite (1250-1500W, LR)
21
8203536 Whirlpool Infinite Switch Primary
21
Switch, Infinite (2100-2600W, LF)
22
Nut, Mounting (Single Element)
22
Nut, Mounting (Dual Element)
23
Seal, Switch (4)
←
