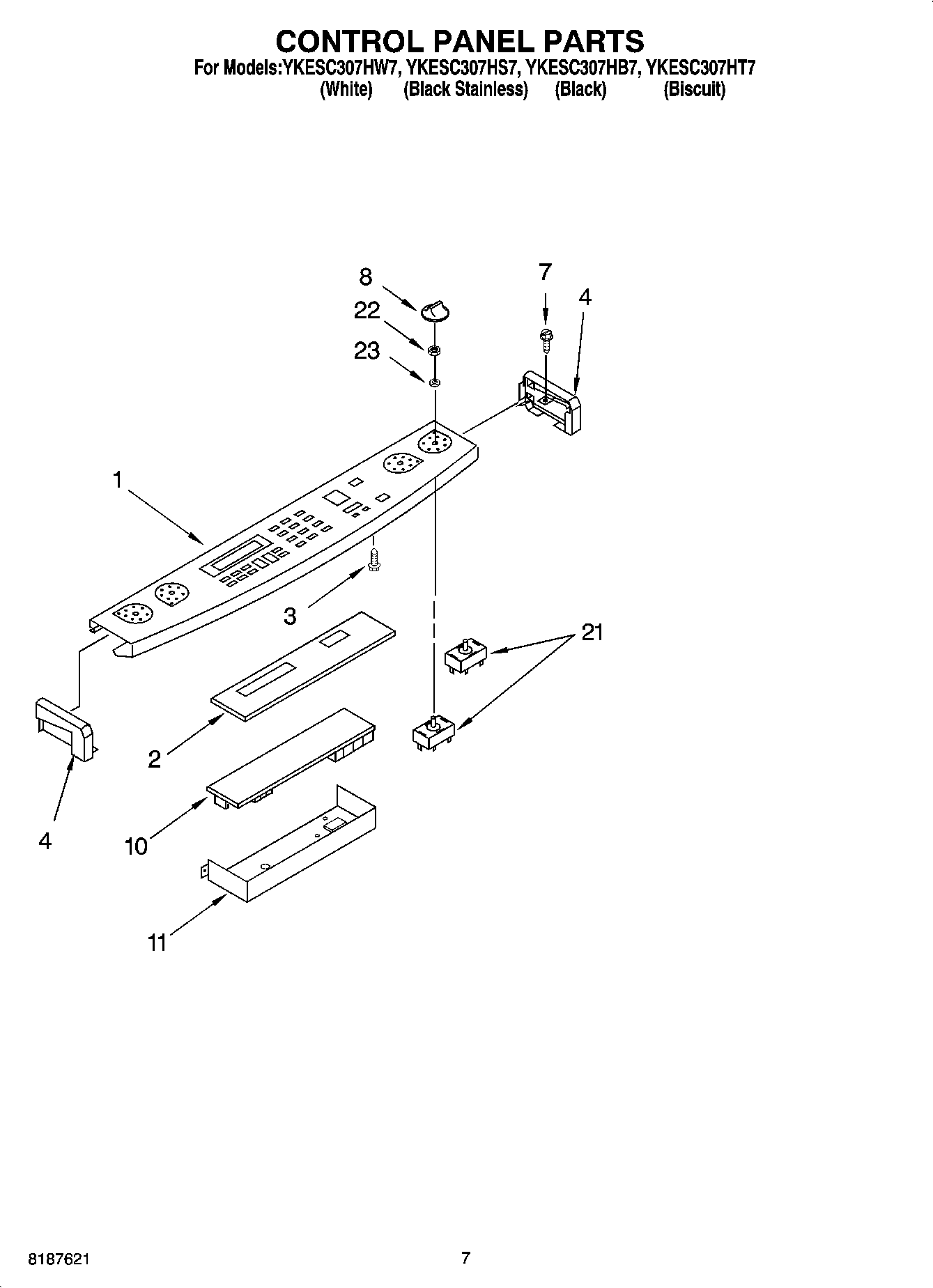

YKESC307HS7 04 – CONTROL PANEL PARTS

YKESC307HS7 04 – CONTROL PANEL PARTS

Written by

in

YKESC307HS7 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Console, Glass (Biscuit)
1Console, Glass (White)
1Console, Glass (Black Stainless)
2Display Board Assembly
3Screw
4End Cap (Right Hand) (White)
4End Cap (Left Hand) (Biscuit)
4(End Cap Left Hand) (White)
4(End Cap Left Hand) (Black)
4End Cap (Right Hand) (Biscuit)
4End Cap Right Hand (Black)
7WP4159387 Whirlpool Compactor Screw
8WP9750372FW Whirlpool Knob Assembly
8WP9750372FF Whirlpool Knob
8WP9750372FC Whirlpool Knob
10Microcptr
11Shield, Control Panel
21WP9755175 Whirlpool Infinite Switch
21Switch, Infinite (2100-2600W, LF)
21Switch, Infinite (1700W, RF)
21Switch, Infinite (1250-1500W, LR)
22Nut, Mounting (Single Element)
23Seal, Switch (4)
