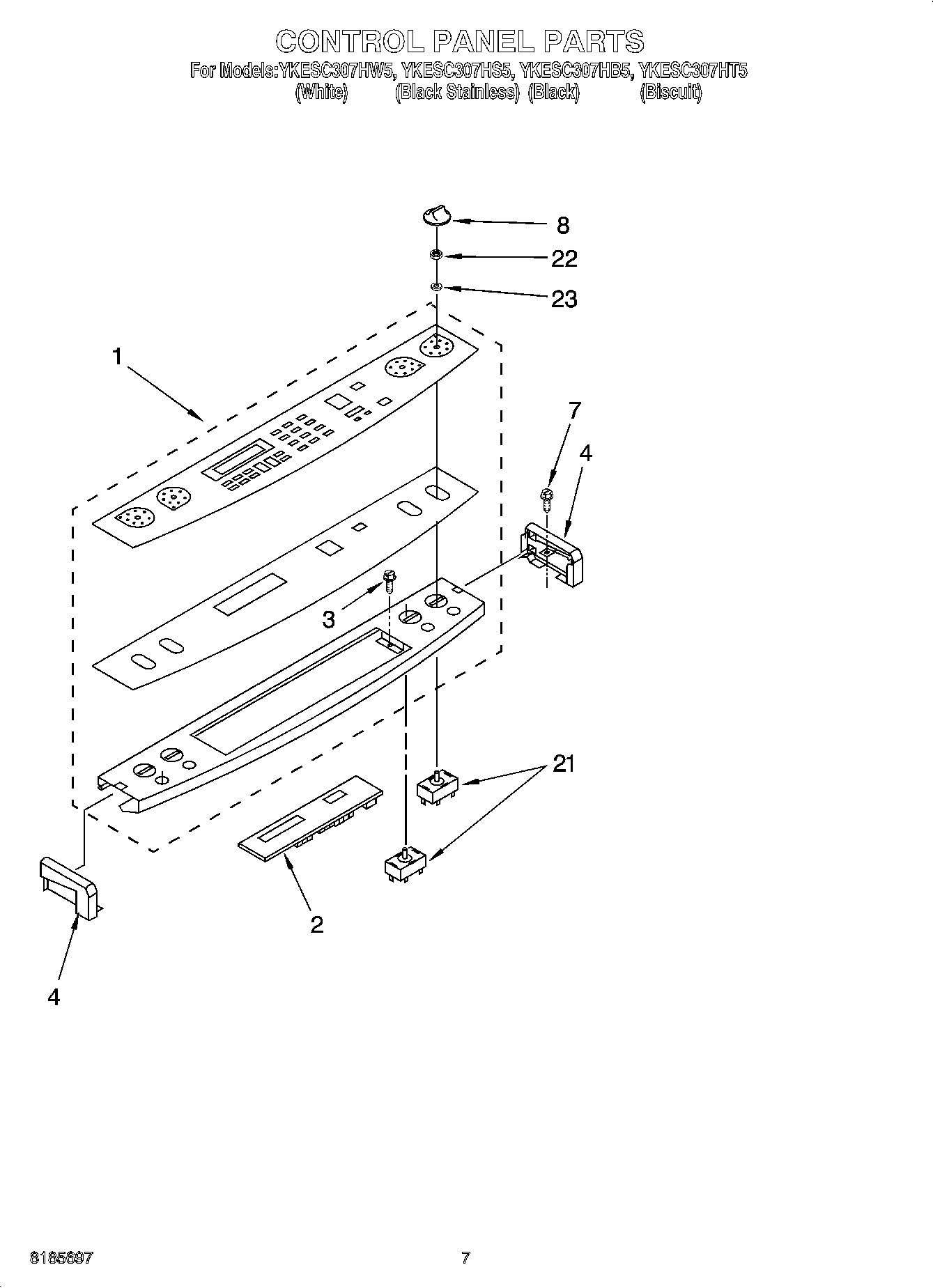

YKESC307HT5 04 – CONTROL PANEL PARTS

YKESC307HT5 04 – CONTROL PANEL PARTS

Written by

in

YKESC307HT5 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Console, Glass (Biscuit)
1Console, Glass (Black)
1Console, Glass (White)
2Timer, Electronic
3Screw
4End Cap (Right Hand) (White)
4(End Cap Left Hand) (White)
4(End Cap Left Hand) (Black)
4End Cap (Left Hand) (Biscuit)
4End Cap (Right Hand) (Biscuit)
4End Cap Right Hand (Black)
7WP4159387 Whirlpool Compactor Screw
8WP9750372FW Whirlpool Knob Assembly
8WP9750372FF Whirlpool Knob
8WP9750372FC Whirlpool Knob
21Switch, Infinite (1700W, RF)
21Switch, Infinite (1250-1500W, LR)
218203536 Whirlpool Infinite Switch Primary
21Switch, Infinite (2100-2600W, LF)
22Nut, Mounting (Single Element)
22Nut, Mounting (Dual Element)
23Seal, Switch (4)
