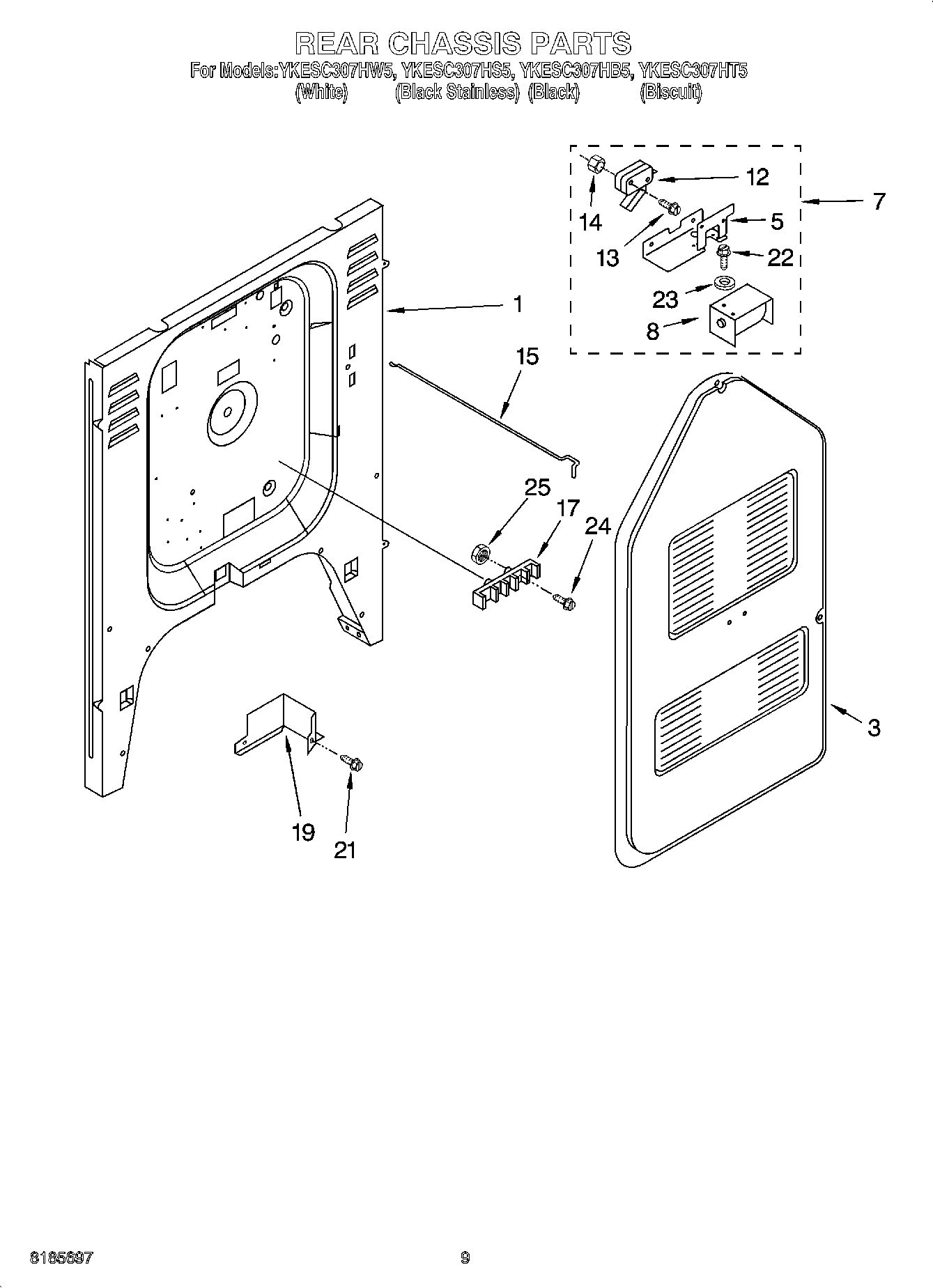

YKESC307HW5 06 – REAR CHASSIS PARTS

Products

Position	Product
1	Back panel, Chassis
3	Panel, Rear Cover
5	Bracket, Lock
7	Oven Lock Assembly
8	Solenoid
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
17	Clip, Ground Wire
19	WPL 9751798
21	Screw (4) 10 x 1/2
22	Screw (2) 10-32 x 5/16
23	Washer (2)
24	Screw, (2) 10-16 x 1
25	WP112432 Whirlpool Nut Assembly
