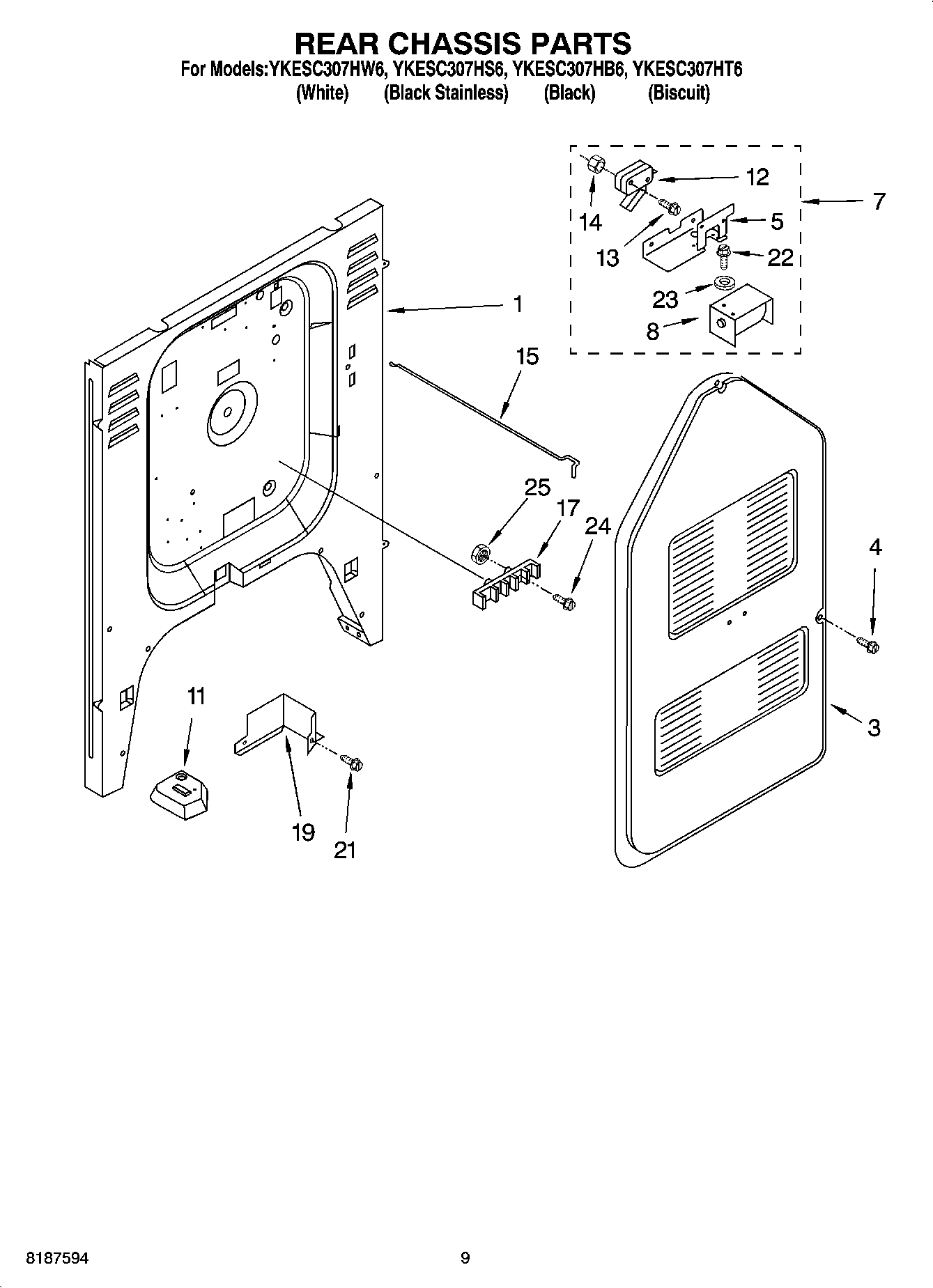

YKESC307HW6 06 – REAR CHASSIS PARTS

Products

PositionProduct
1Back panel, Chassis
3Panel, Rear Cover
4Screw (4) 10 x 3/8
5Bracket, Lock
7Oven Lock Assembly
8Solenoid
11Block, Balance
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
17Clip, Ground Wire
19WPL 9751798
21Screw (4) 10 x 1/2
22Screw (2) 10-32 x 5/16
23Washer (2)
24Screw, (2) 10-16 x 1
25WP112432 Whirlpool Nut Assembly
