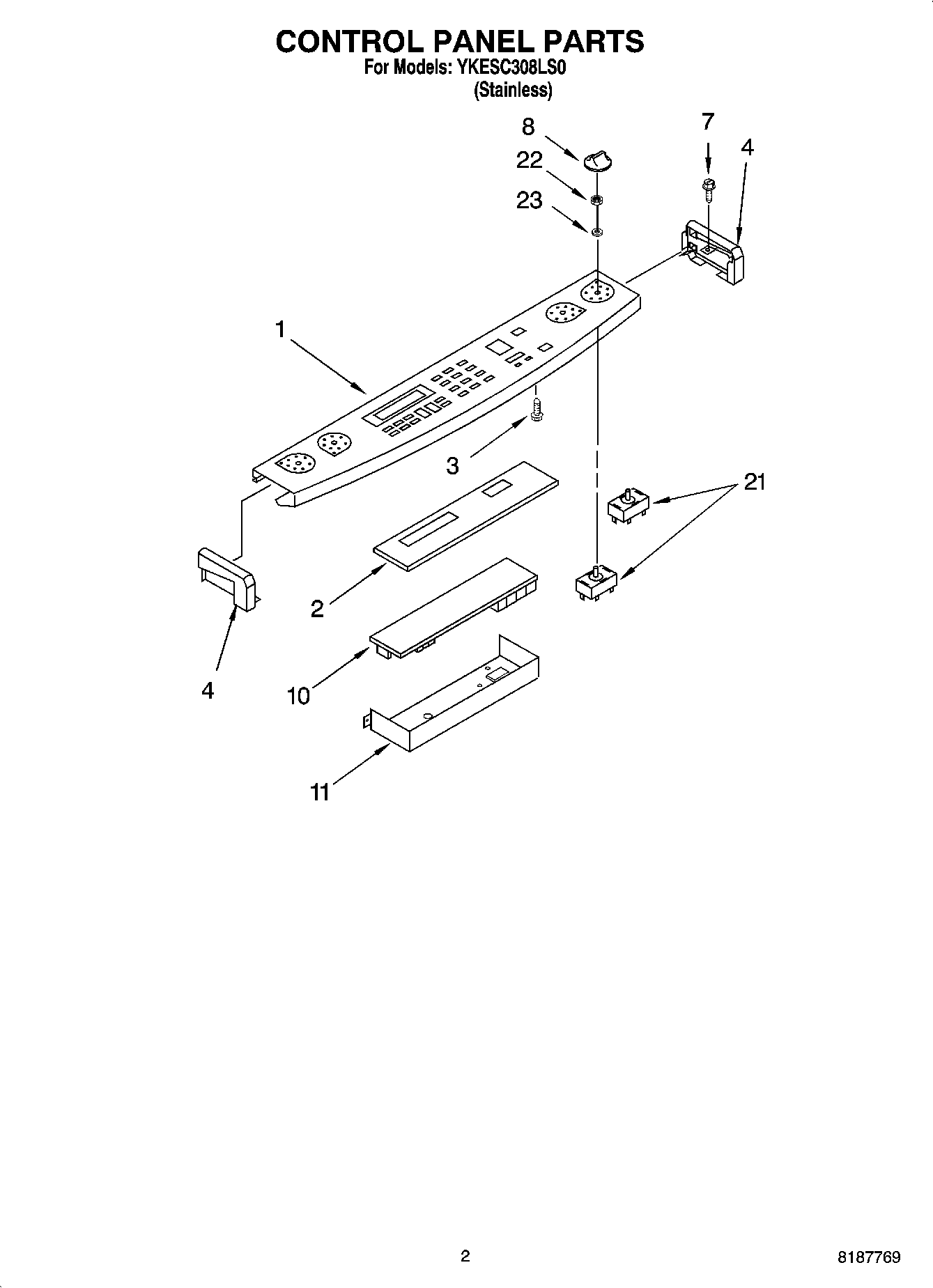

YKESC308LS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console, Glass (Black Stainless)
2Board, Display
3Screw
4End Cap Right Hand (Black)
4(End Cap Left Hand) (Black)
7WP4159387 Whirlpool Compactor Screw
8WP9750372FF Whirlpool Knob
10Board, Power
11Shield, Control Panel
21Switch, Infinite (1250-1500W, LR)
21Switch, Infinite (1700W, RF)
21WP9755175 Whirlpool Infinite Switch
21Switch, Infinite (2100-2600W, LF)
22Nut, Mounting (Single Element)
23Seal, Switch (4)
