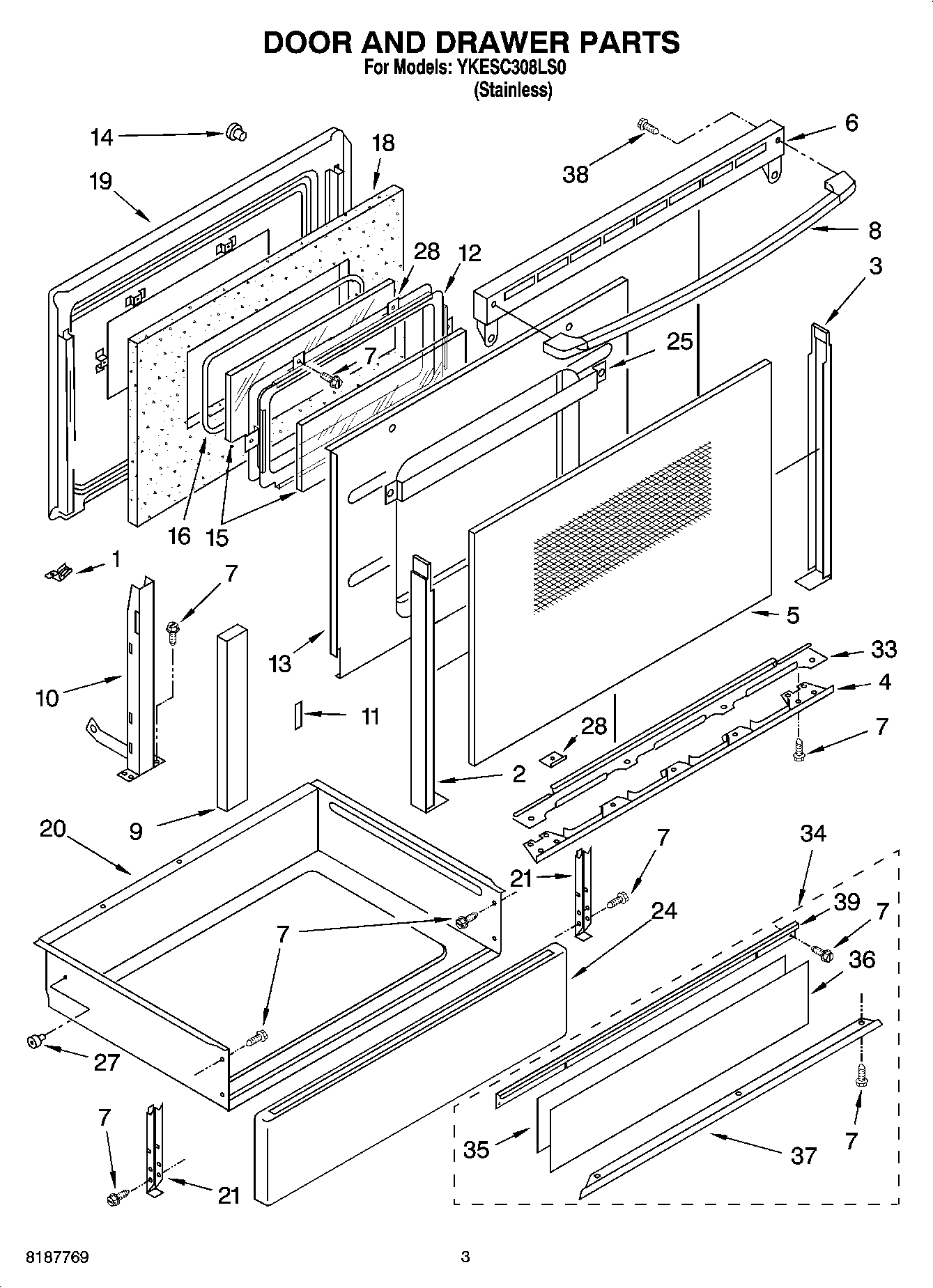

YKESC308LS0 03 – DOOR AND DRAWER PARTS

Products

Position	Product
1	Retainer, Glass
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
5	Glass, Door (Black Stainless)
6	Vent, Door
7	Vent, Door (Gasket, Vent)
7	WP4159387 Whirlpool Compactor Screw
8	Handle, Door
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
10	WP90296 Whirlpool Clip
11	Vent, Door (Seal, Door Vent Side)
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
24	Front, Drawer (Black Stainless)
25	Channel, Heat
27	814229 Whirlpool Primary Roller
28	Spacer, Door (8)
33	Deflector, Steam
35	WPL 9753329
36	Panel, Drawer
37	WPL 9750613PB
38	WP356418 Whirlpool Screw
39	WPL 9750614PB
