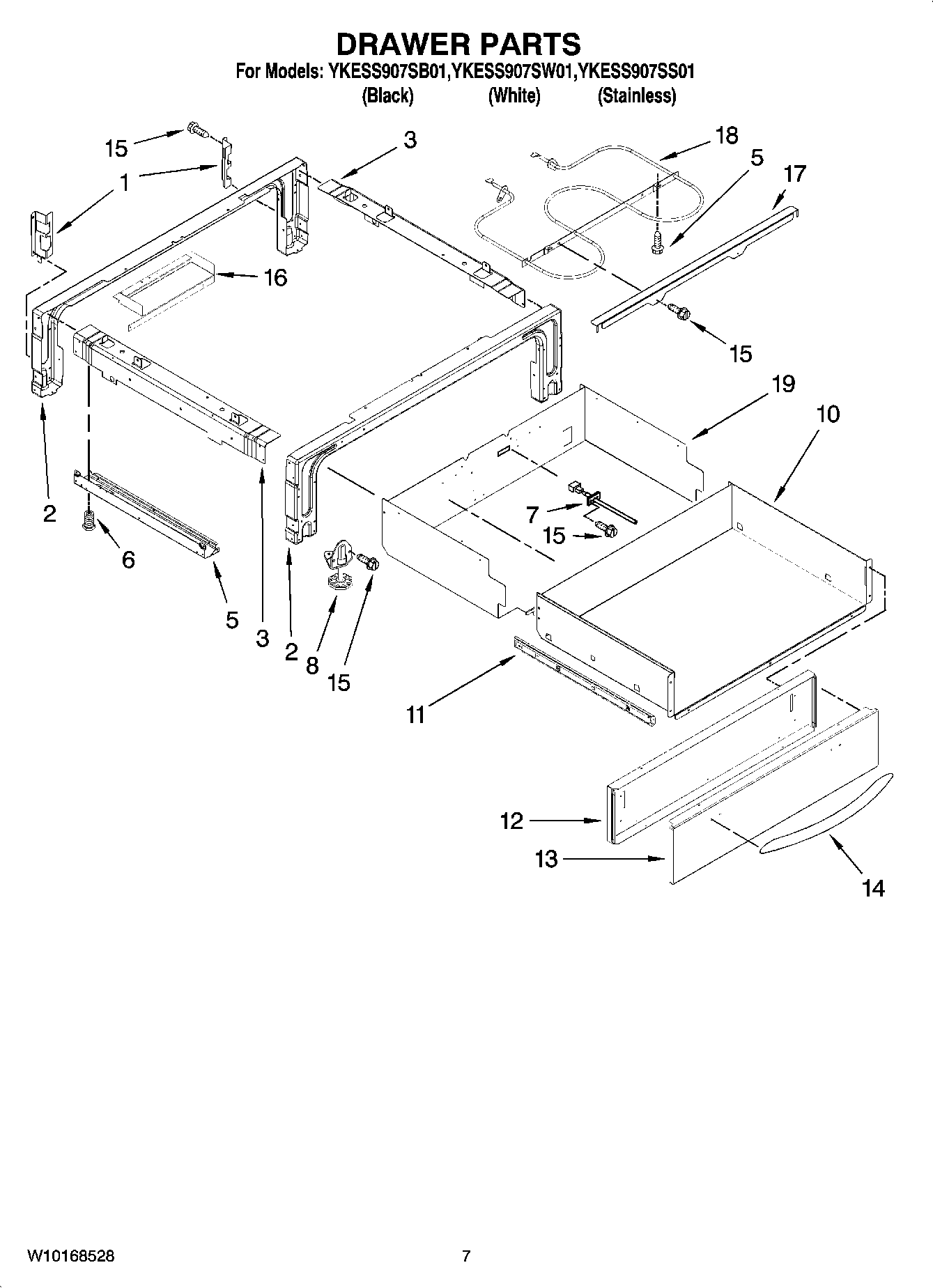

YKESS907SB01 04 – DRAWER PARTS

Products

Position	Product
1	Support (R.Hand)
1	Support (L.Hand)
2	Support, Front & Rear
3	Brace, Drawer (Left)
3	Brace, Drawer (Right)
5	Side, Base (R.Side)
5	Side, Base (L.Side)
6	WPW10058460 Whirlpool Appliance Levelling Leg
7	WP8274149 Whirlpool Sensor Assembly
8	WP3196037 Whirlpool Leveling Foot
10	Drawer
11	WPW10155633 Whirlpool Drawer Slide Rail
11	WPW10155632 Whirlpool Slide Drawer Assembly
12	Panel, Drawer
13	Front, Drawer (White)
13	Front, Drawer (Black)
13	Front, Drawer (Stainless)
14	Handle, Drawer (White)
14	Handle, Drawer (Stainless)
14	Handle, Drawer (Black)
15	WP3196557 Whirlpool Screw
16	Cover, Terminal
17	Support, Element
18	9760775 Whirlpool Oven Warm Element
19	Enclosure, Warming Drawer
