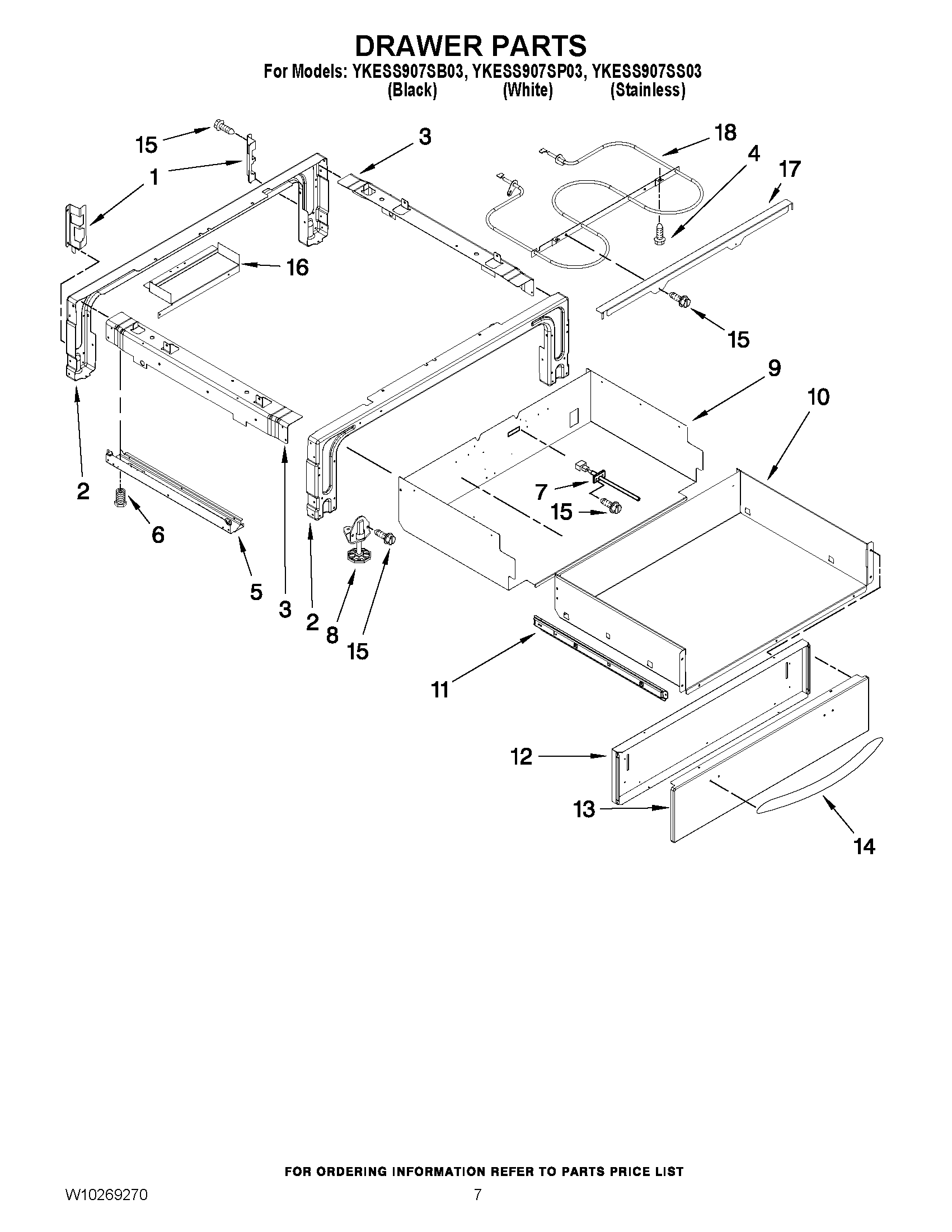

YKESS907SB03 04 – DRAWER PARTS

Products

Position	Product
1	Support (R.Hand)
1	Support (L.Hand)
2	Support, Front & Rear
3	Brace, Drawer (Left)
3	Brace, Drawer (Right)
4	SCREW
5	Side, Base (L.Side)
5	Side, Base (R.Side)
6	WPW10058460 Whirlpool Appliance Levelling Leg
7	WP8274149 Whirlpool Sensor Assembly
8	WP3196037 Whirlpool Leveling Foot
9	Enclosure, Warming Drawer
10	DRAWER
11	WPW10155632 Whirlpool Slide Drawer Assembly
11	WPW10155633 Whirlpool Drawer Slide Rail
12	PANEL, DRAWER
13	Front, Drawer (White)
13	Front, Drawer (Black)
13	Front, Drawer (Stainless)
14	HANDLE, DRAWER (WHITE)
14	HANDLE, DRAWER
14	HANDLE, DRAWER (BLACK)
15	WP3196557 Whirlpool Screw
16	Cover, Terminal
17	Support, Element
18	ELEMENT, WARMING DRAWER
