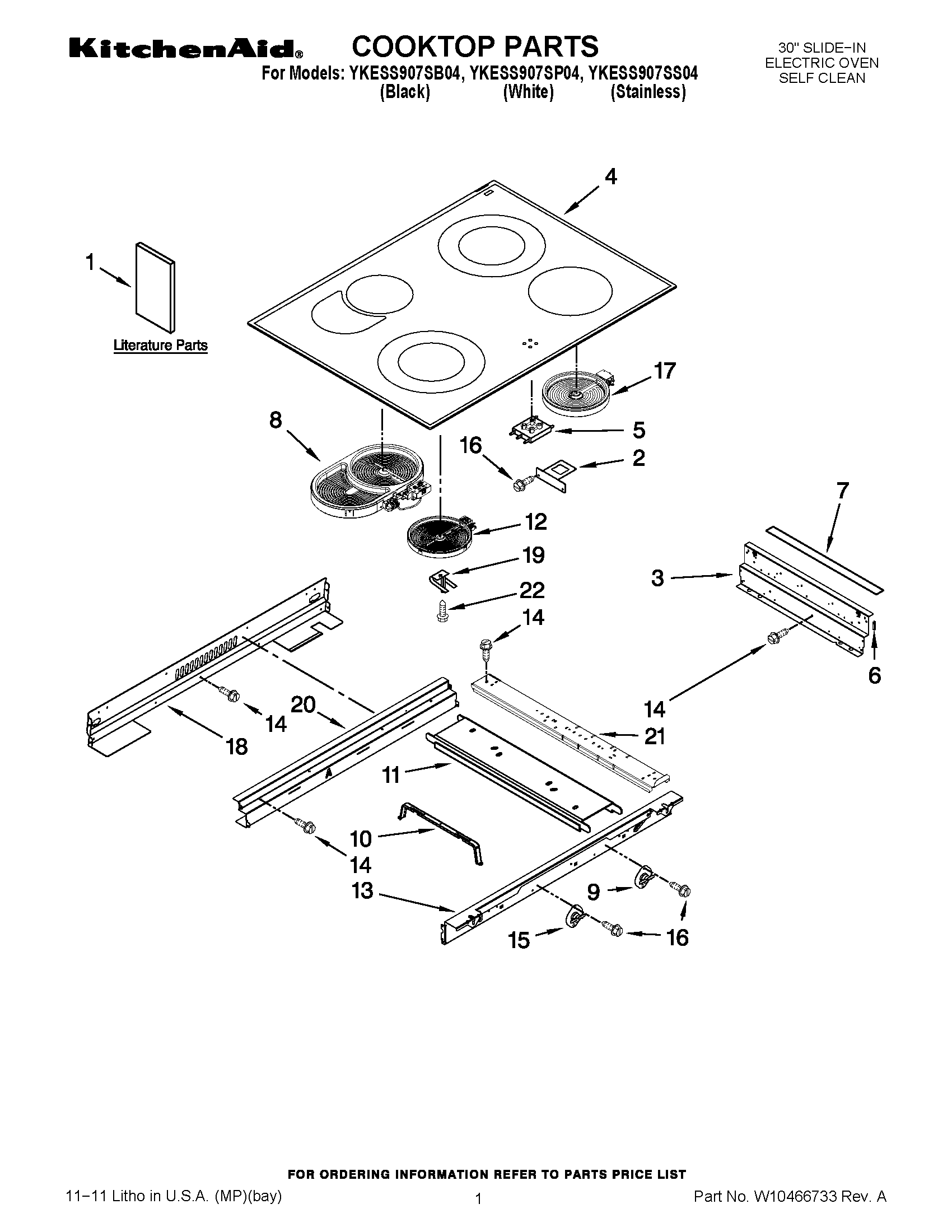

YKESS907SB04 01 – COOKTOP PARTS

Products

Position	Product
1	TECH SHEET (FRENCH)
1	TECH SHEET
1	INSTALLATION INSTRUCTIIONS
1	Easy Set Guide
1	USE & CARE GUIDE
1	Anti-Tip Instruct.
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Use & Care Guide (French)
2	Bracket, Ind. Lamp
3	Frame, Cooktop Side
4	W10297305 Whirlpool Cooktop
4	W10297306 Whirlpool Glass Cooktop Assembly
5	Light, Indicator (Hot Surface)
6	Edge Protector (19mm)
6	PROCTECTOR, EDGE
7	Gasket (2)
8	WPW10248257 Whirlpool Surface Element
9	WP9759944 Whirlpool Thermostat
10	WP9756821 Whirlpool Support
11	Rail, Element (2) (Center (1))
12	ELMNT-SURF
13	Frame, Cooktop Front
14	WP3196557 Whirlpool Screw
15	Thermostat SPST (205)
16	W10491985 Whirlpool Screw
17	WP8273993 Whirlpool Surface Element
18	Cover, Cktp Rear
19	9759094 Whirlpool Spring
20	Frame, Cooktop Rear
21	Rail, Element (3)
22	WP486754 Whirlpool Compactor Screw
