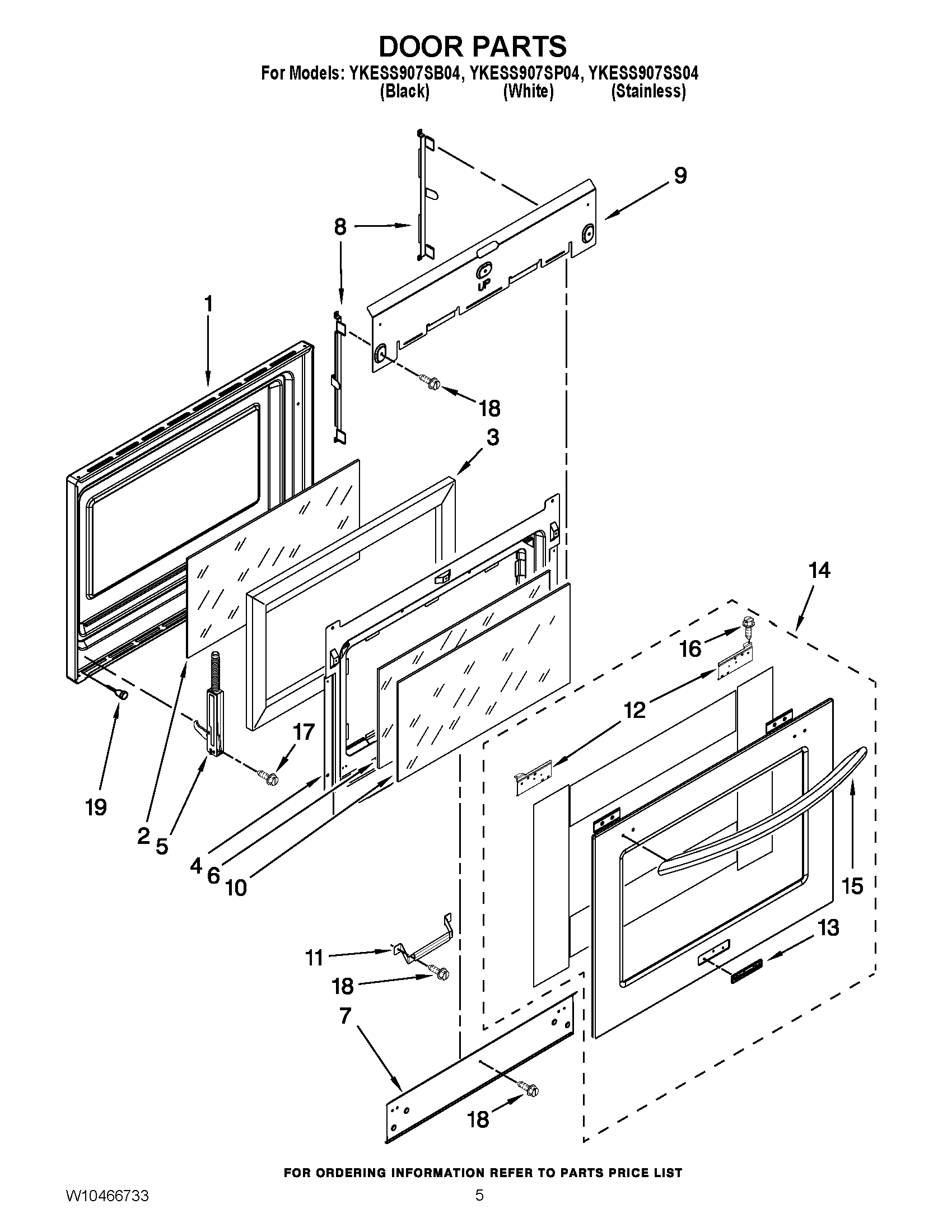

YKESS907SB04 03 – DOOR PARTS

Products

Position	Product
1	PANEL, DOOR
2	WP9757706 Whirlpool Door Inner Glass
3	WP4451722 Whirlpool Door Insulation Assembly
4	WP4457132 Whirlpool Retainer
5	WP9760579 Whirlpool Right Door Hinge
5	HINGE-DOOR LH/SS DOOR SPRING
7	4457114 Whirlpool Oven Heat Shield
8	WP9759229 Whirlpool Mounting Bracket
9	SHIELD, HEAT TOP
10	WP9759225 Whirlpool Inner Door Glass
11	Bracket (3rd Glsss)
12	BRACKET, HANDLE (RIGHT)
12	BRACKET, HANDLE (LEFT)
13	WPW10243393 Whirlpool Dishwasher Nameplate
13	WPW10243392 Whirlpool Dishwasher Nameplate
13	WPW10243391 Whirlpool Refrigerator Nameplate
14	W10155557 Whirlpool Glass Door
14	Assembly, Door Kit (Black)
14	Assembly, Door Kit (White)
15	HANDLE, DOOR (BLACK)
15	DOOR HANDLE
15	HANDLE, DOOR (WHITE)
16	WPW10132940 Whirlpool Dishwasher Screw
17	WPW10292297 Whirlpool Screw
18	SCREW
19	4448520 Whirlpool Oven Bumper
