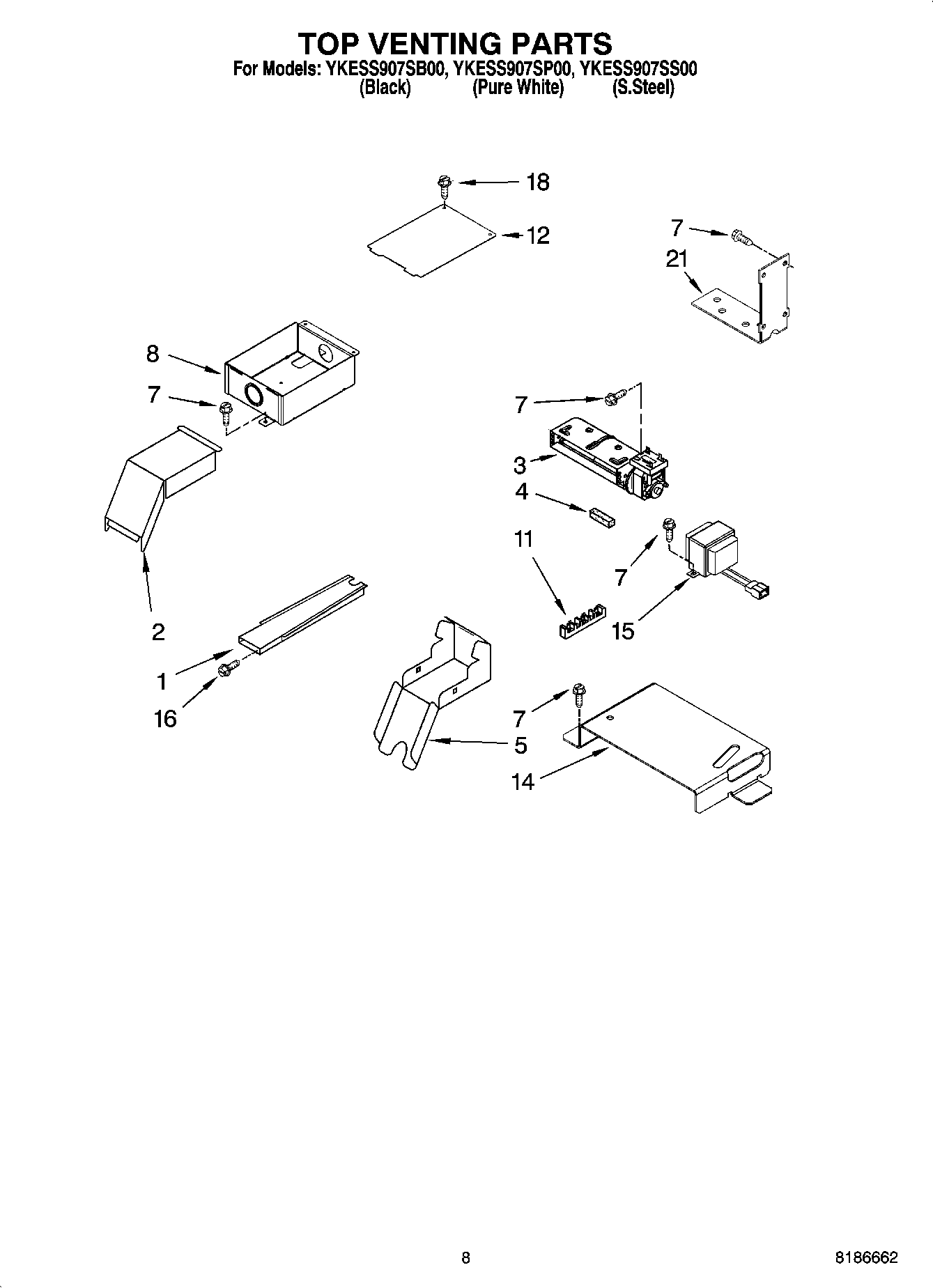

YKESS907SP00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI138375A
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	261900 Whirlpool Microwave Spray
	9763481 Whirlpool Oven Wire Harness
	HARNESS, COMMUNICATION
	WPL ARI138374A
	WPL ARI138373A
	WPL ARI138372A
	WPL W10109280
	Conduit
	Cord, Power
	WP9759877 Whirlpool Retainer
	W10118728 Whirlpool Wire Harness
	Harness,
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	285006 Whirlpool Spray
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	72032 Whirlpool Touch Up Paint Black
	W11209404 Whirlpool Wire Harness
	Clip, Ground Wire
	WP4448950 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
	Spacer, Harness
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	242831 Whirlpool Oven Wire
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
8	Box, Terminal
11	WP8203546 Whirlpool Terminal Block
12	Cover, Terminal Box
14	WP9757829 Whirlpool Mounting Bracket
15	WPW10111628 Whirlpool Transformer
16	Screw
18	W10491985 Whirlpool Screw
21	WP4455352 Whirlpool Mounting Bracket
