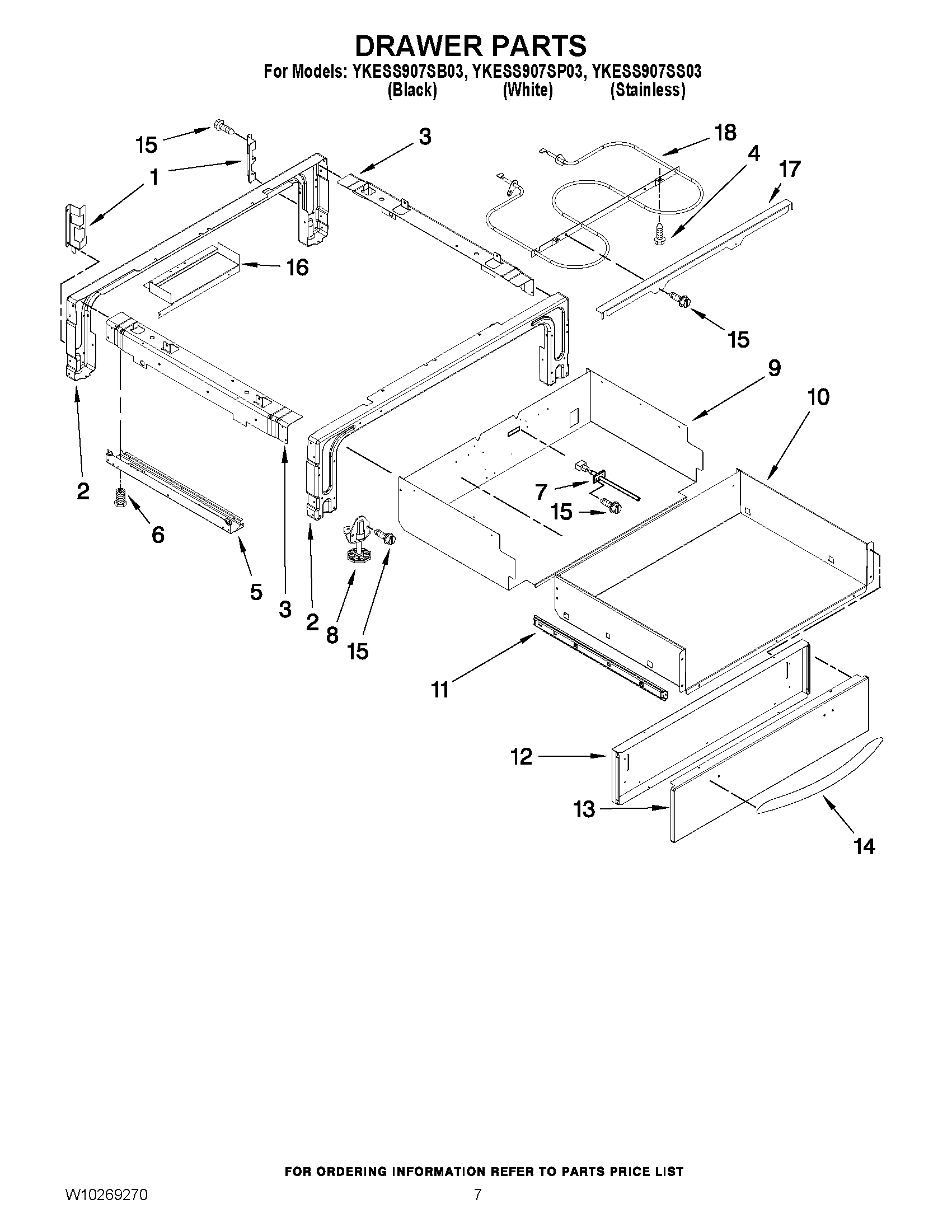

YKESS907SP03 04 – DRAWER PARTS

Products

PositionProduct
1Support (R.Hand)
1Support (L.Hand)
2Support, Front & Rear
3Brace, Drawer (Left)
3Brace, Drawer (Right)
4SCREW
5Side, Base (L.Side)
5Side, Base (R.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7WP8274149 Whirlpool Sensor Assembly
8WP3196037 Whirlpool Leveling Foot
9Enclosure, Warming Drawer
10DRAWER
11WPW10155632 Whirlpool Slide Drawer Assembly
11WPW10155633 Whirlpool Drawer Slide Rail
12PANEL, DRAWER
13Front, Drawer (White)
13Front, Drawer (Black)
13Front, Drawer (Stainless)
14HANDLE, DRAWER (WHITE)
14HANDLE, DRAWER
14HANDLE, DRAWER (BLACK)
15WP3196557 Whirlpool Screw
16Cover, Terminal
17Support, Element
18ELEMENT, WARMING DRAWER
