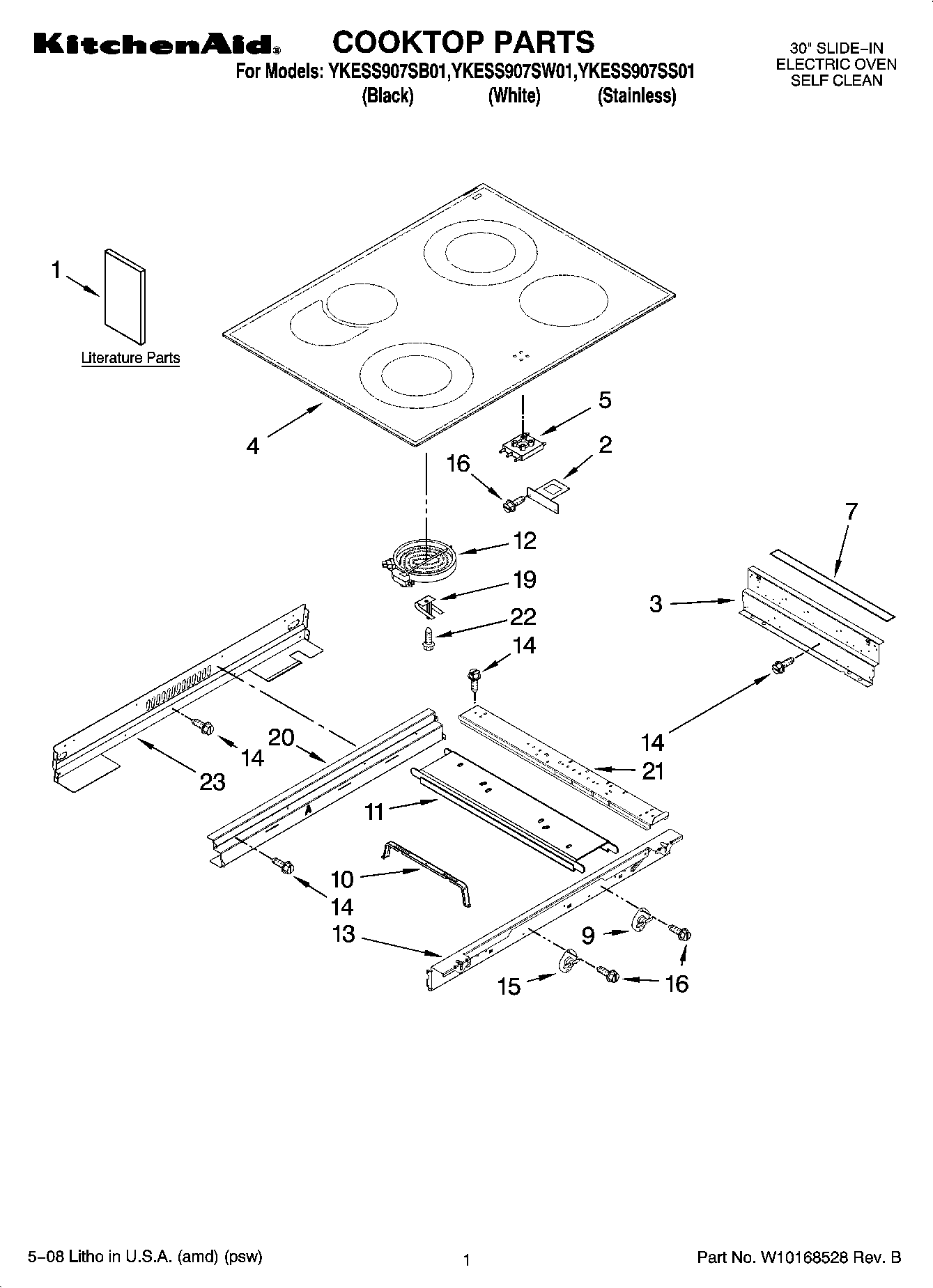

YKESS907SS01 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide (French)
1Tech Sheet
1Easy Set Guide
1INSTALLATION INSTRUCTIIONS
1Safe Cooking Tips (French)
1Anti-Tip Instruct.
1Safe Cooking Tips
1Use & Care Guide
1Tech Sheet (French)
2Bracket, Ind. Lamp
3Frame, Cooktop Side
4W10297306 Whirlpool Glass Cooktop Assembly
4W10297305 Whirlpool Cooktop
5Light, Indicator (Hot Surface)
7Gasket (2)
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
11Rail, Element (2) (Center (1))
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
12Element, Surface (1800/1000W)
13Frame, Cooktop Front
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
16W10491985 Whirlpool Screw
199759094 Whirlpool Spring
20Frame, Cooktop Rear
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
