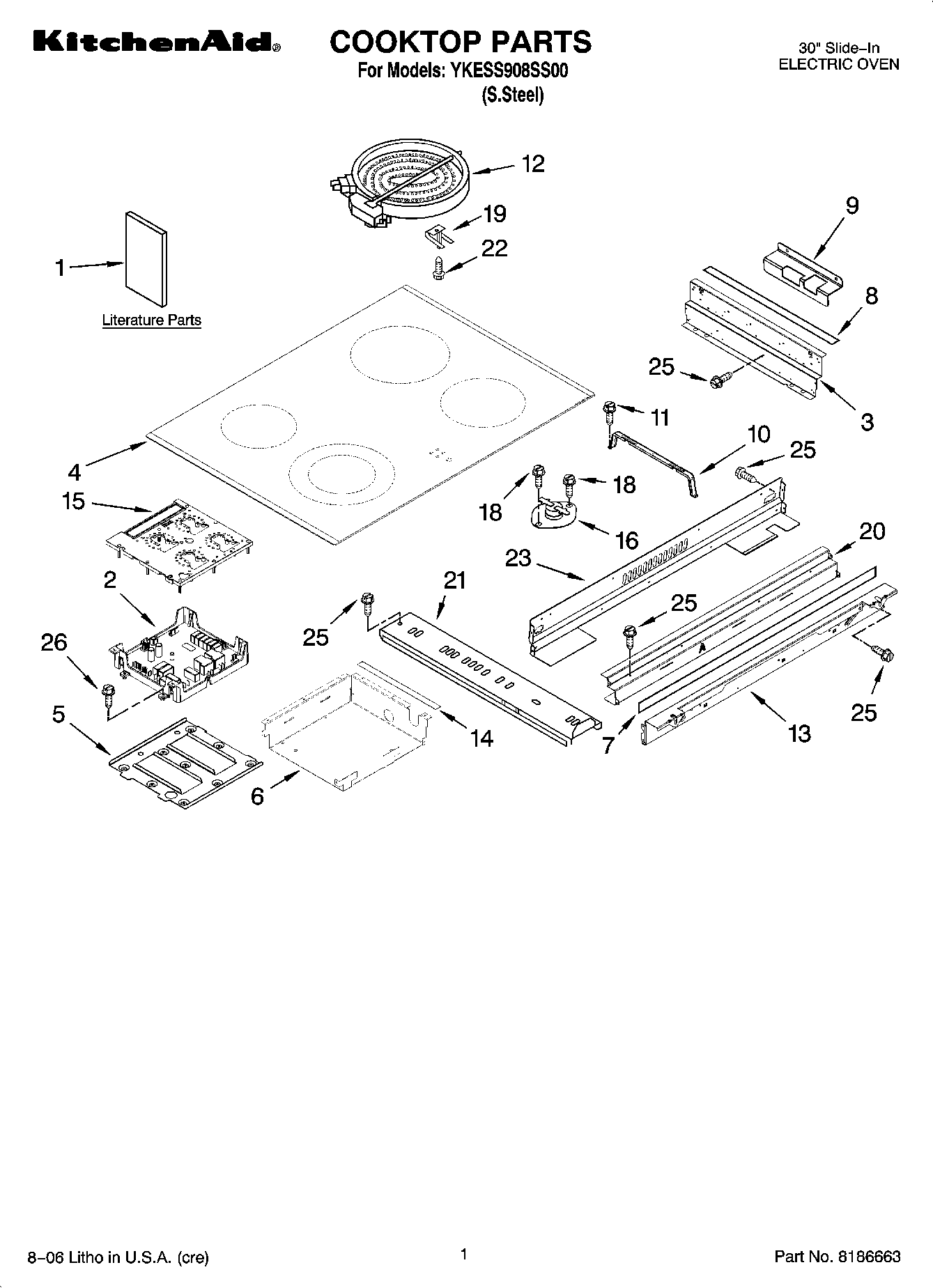

YKESS908SS00 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet (French)
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips (French)
1Anti-Tip Instruct.
1Safe Cooking Tips
1Tech Sheet
1Use & Care Guide (French)
1Easy Set Guide
2Central, Appliance
3Frame, Cooktop Side
4Cooktop (Black/Stainless)
5Support, Module
6Box, Touch Control
7Gasket
8Gasket (2)
9Support (R.Hand)
9Support (L.Hand)
10WP9756821 Whirlpool Support
11WP4449809 Whirlpool Screw
12WP8285232 Whirlpool Surface Element Assembly
12Element, Surface (RR)
12Element, Surface (LF)
12WP4453907 Whirlpool Surface Element
13Frame, Cooktop Front
14Seal, Heat
15WP9757063 Whirlpool Electronic Control Board
16WP9759944 Whirlpool Thermostat
18W10491985 Whirlpool Screw
199759094 Whirlpool Spring
20Frame, Cooktop Rear
21Rail, Element (2) (Center (1))
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
25WP3196557 Whirlpool Screw
26WP4449745 Whirlpool Screw
