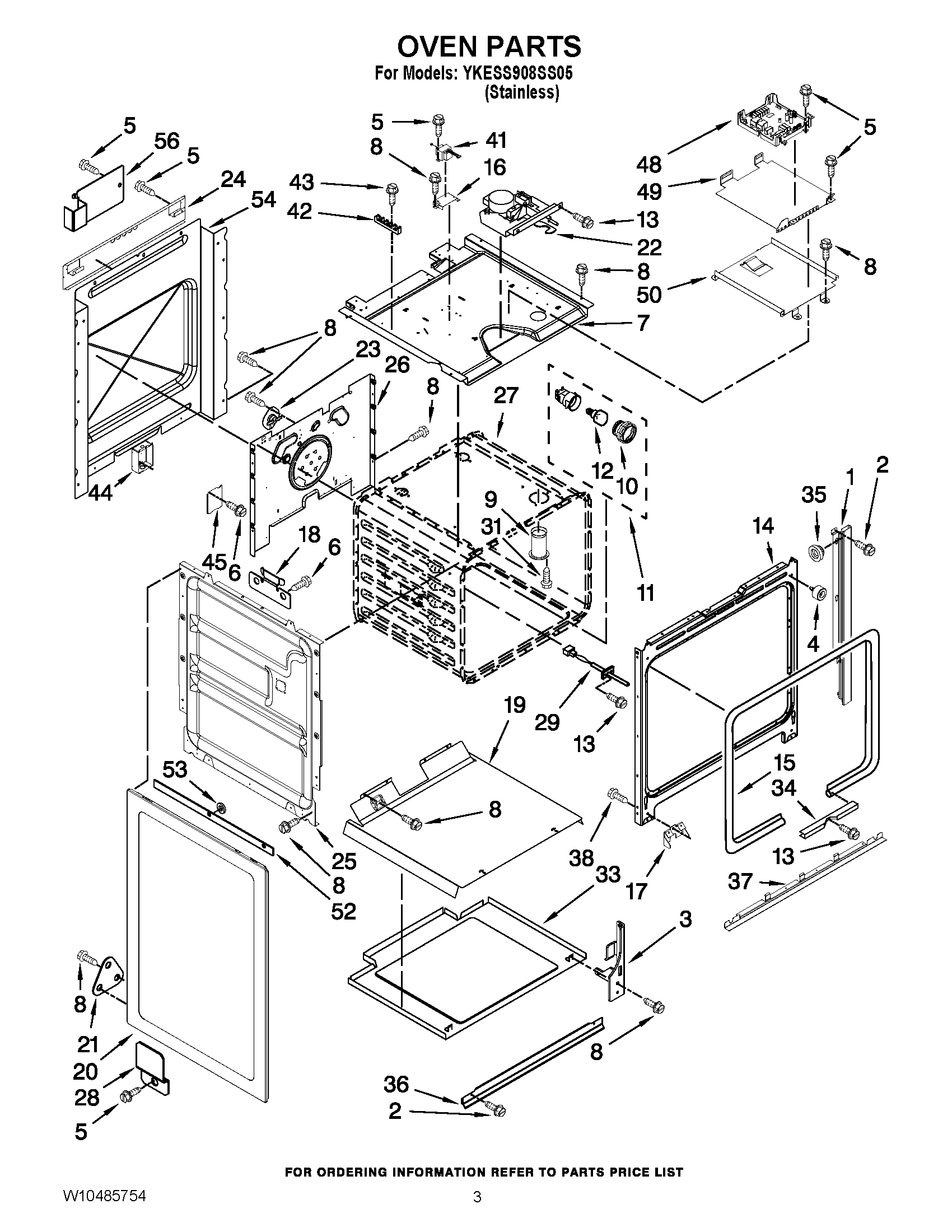

YKESS908SS05 02 – OVEN PARTS

Products

Position	Product
NI	WPL 9756470
NI	WPL 9756817
1	TRIM, SIDE (RIGHT STAINLESS)
1	TRIM, SIDE (LEFT STAINLESS)
2	WP3400832 Whirlpool Screw
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP3196557 Whirlpool Screw
6	W10491985 Whirlpool Screw
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4449154 Whirlpool Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	WP9757829 Whirlpool Mounting Bracket
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	Support, Insulation
20	BODY, SIDE BLACK
21	BRACKET,SIDE PANEL
22	WPW10195934 Whirlpool Door Latch
23	WP9759242 Whirlpool Thermostat
24	Brace, Side Panel
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	Clip, Side Panel
29	WPW10131825 Whirlpool Oven Temperature Sensor
31	SCREW
33	Base, Chassis
34	WP4448933 Whirlpool Retainer
35	WP4448444 Whirlpool Grommet
36	Vent, Bottom Upper (Stainless)
37	Vent, Bottom Lower (Stainless)
38	WP4449743 Whirlpool Screw
41	WPW10111628 Whirlpool Transformer
42	BLOCK, TERMINAL
43	Screw
44	Box, Terminal
45	Cover, Terminal Box
48	APPLIANCE, MANAGER
49	W10083460 Whirlpool Slide Assembly
50	Bracket, GOC
52	WPL 9759722
53	WPL 9760481
54	WPL 9758583
56	Cover, Rear Standoff
