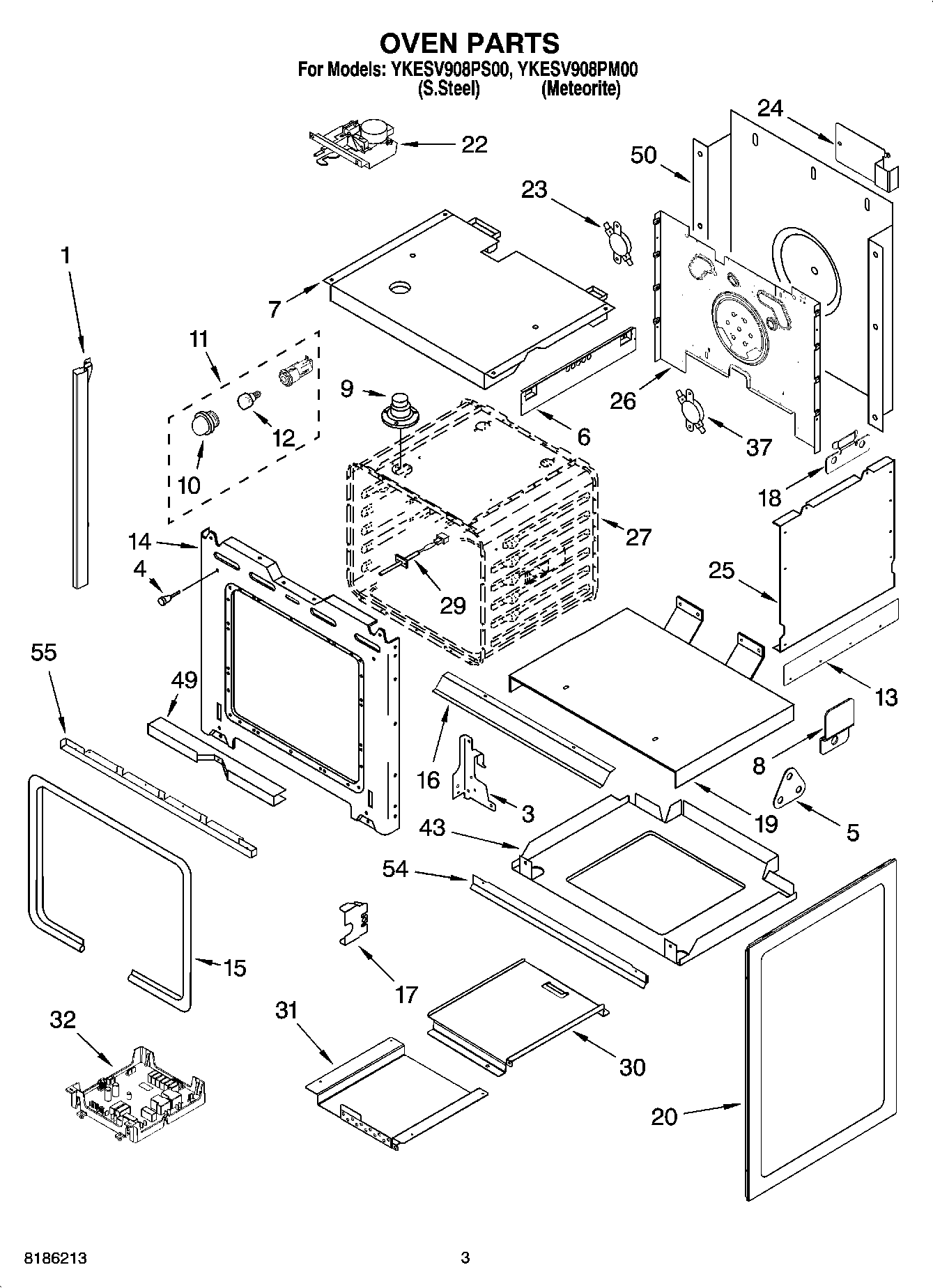

YKESV908PM00 03 – OVEN PARTS

YKESV908PM00 03 – OVEN PARTS

Written by

in

YKESV908PM00 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side (Left Hand) (S.Steel)
1Trim, Side (Left Hand) (Black)
1Trim, Side (Right Hand) (S.Steel)
1Trim, Side (Right Hand) (Black)
1WP3400832 Whirlpool Screw
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5BRACKET,SIDE PANEL
6Brace, Side Panel
7Top, Chassis
8Clip, Side Panel
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Shield, Heat
13WP4449743 Whirlpool Screw
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20Body, Side (Black)
22WP9760889 Whirlpool Door Latch
23Thermostat SPST (205)
24Cover, Rear Standoff
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30Bracket, GOC
31WP3196557 Whirlpool Screw
31W10083460 Whirlpool Slide Assembly
32Central, Appliance
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
54Insulation, Bottom Vent
54Vent, Bottom Upper (Meteorite)
54Vent, Bottom Upper (S. Steel)
54WP3400805 Whirlpool Screw Assembly
55Trim, Btm Vent (Meteorite)
55WPL 9756817
55WPL 9756485SS
55WPL 9756470
55FOLLOWING PARTS NOT ILLUSTRATED INSULATION
