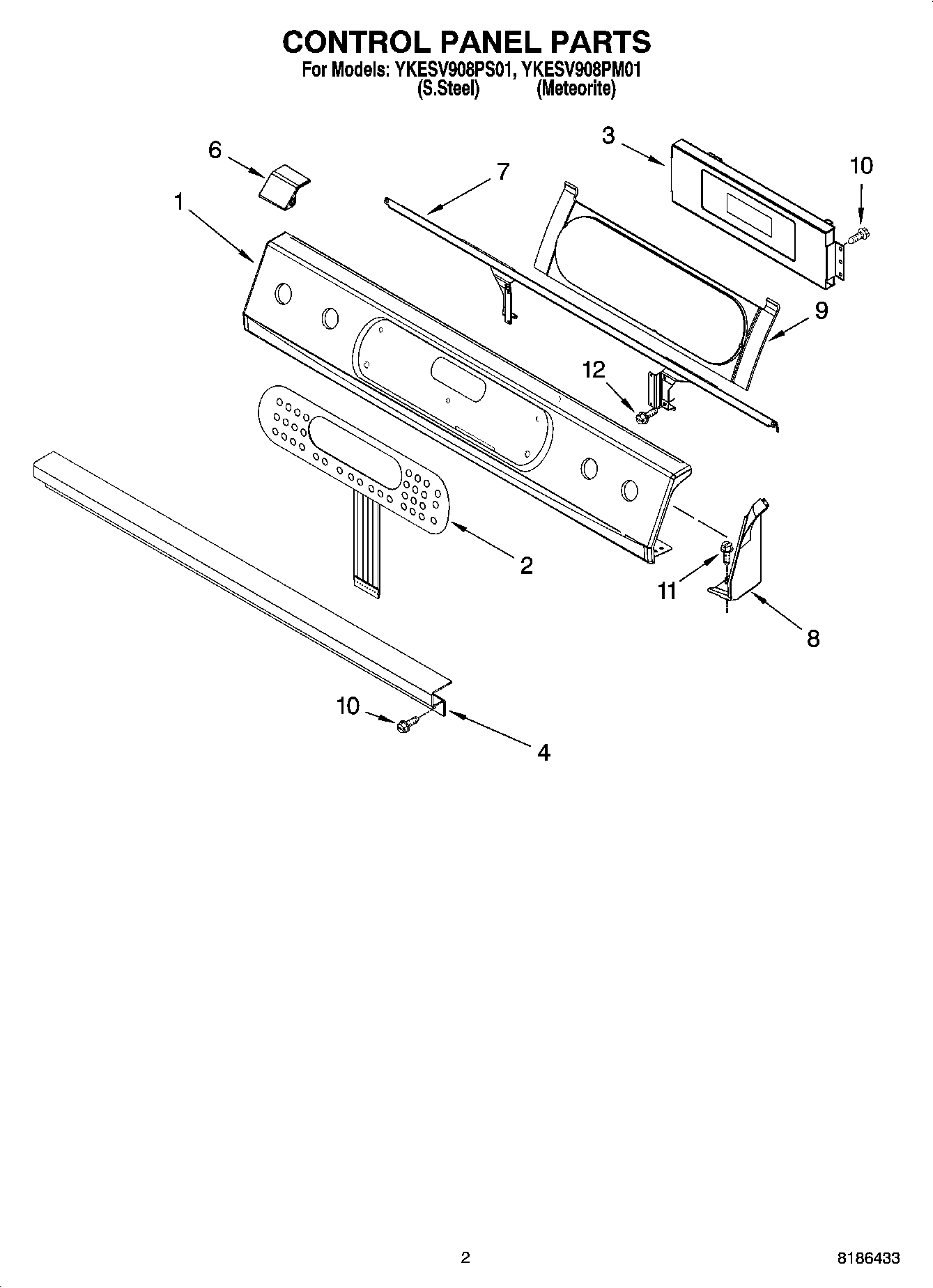

YKESV908PM01 02 – CONTROL PANEL PARTS

YKESV908PM01 02 – CONTROL PANEL PARTS

Written by

in

YKESV908PM01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Meteorite)
1Control Panel (S.Steel)
2Membrane Switch (Etched Stainless)
2Membrane Switch (Cashmere Metal)
3Control, Interface
4Bracket, Console
6Insert, Console (L.Hand)
6Insert, Console (R.Hand)
7Bracket, User Interface
7WP486579 Whirlpool Air Conditioner Screw
8Endcap (Meteorite RH)
8Endcap (Cashmere Metal LH)
8Endcap (Cashmere Metal RH)
8Endcap (Meteorite LH)
9Insert, Membrane
10WP3196557 Whirlpool Screw
113196172 Whirlpool Oven Screw
12WP3400832 Whirlpool Screw
