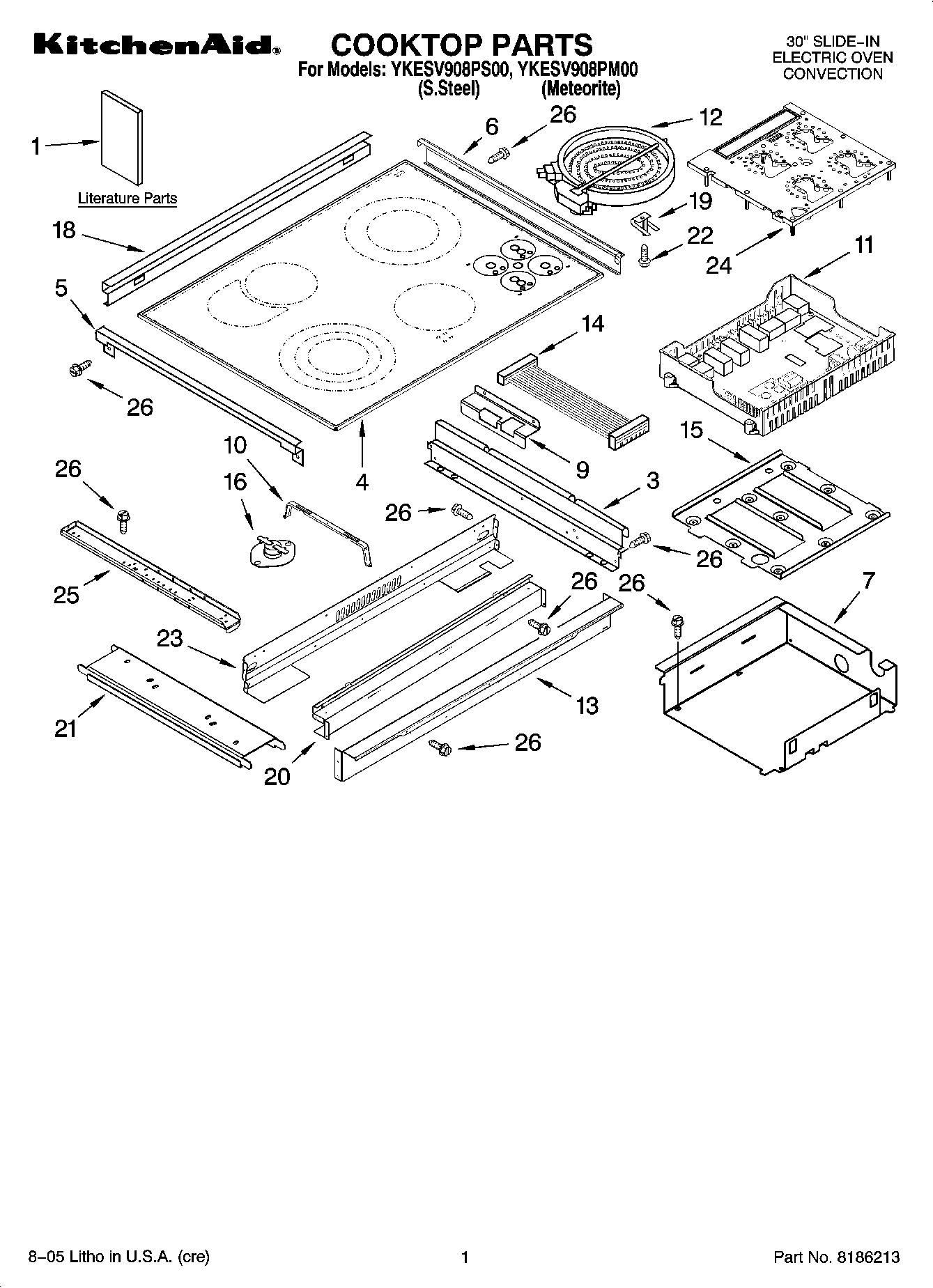

YKESV908PS00 01 – COOKTOP PARTS

YKESV908PS00 01 – COOKTOP PARTS

Written by

in

YKESV908PS00 01 – COOKTOP PARTS

Products

PositionProduct
1Guide, Easy Set
1Tech Sheet
1Guide, Easy Set (French)
1Installation Instructions
1Safe Cooking Tips (French)
1Anti-Tip Instruct.
1Safe Cooking Tips
1Use & Care Guide
1Use & Care Guide (French)
3Bracket, Mounting
4Gasket
4Cooktop (S.Steel)
5Clip, Ceran (2)
6Trim-CkTop, SI (Meteorite RH)
6Trim-CkTop, SI (Meteorite LH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (S.Steel LH)
7Box, Touch Control
9Support (R.Hand)
9Support (L.Hand)
10WP9756821 Whirlpool Support
10WP4449809 Whirlpool Screw
11Central, Appliance
11WP4449745 Whirlpool Screw
11Seal, Foam
12WP8285232 Whirlpool Surface Element Assembly
12Element, Surface (RR)
12WP4453907 Whirlpool Surface Element
12Element, Surface (LF)
13Bracket, Front Support
14W10155097 Whirlpool Wire Harness
15Support, Module
16WP9759944 Whirlpool Thermostat
18Trim. Cooktop Rear (S.Steel)
18Trim. Cooktop Rear (Meteorite)
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (2) (Center (1))
21W10491985 Whirlpool Screw
21Rail, Element (Side (2))
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
24WP9757063 Whirlpool Electronic Control Board
25Rail, Element (2) (Side (3))
26WP3196557 Whirlpool Screw
