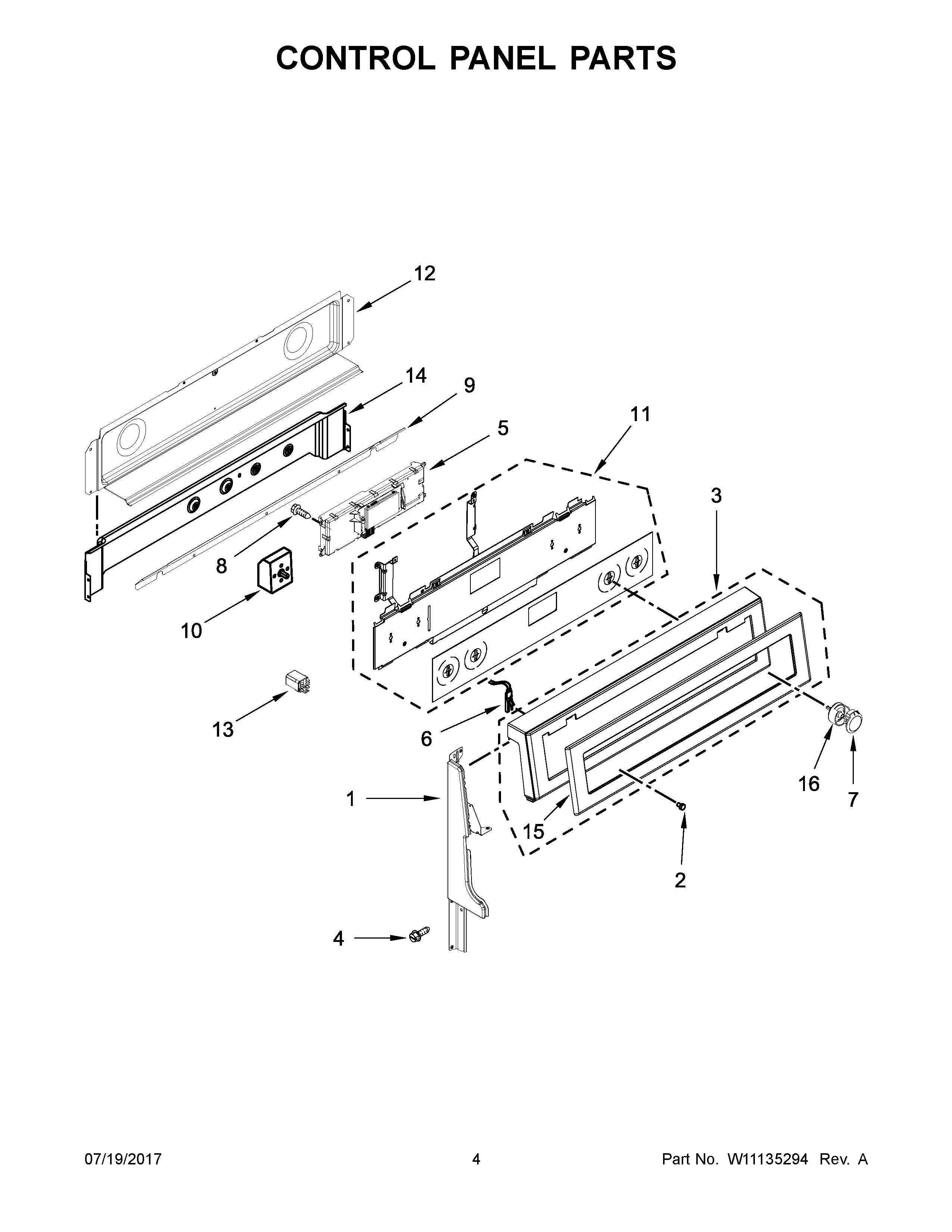

YKFED500EBS0 03 – CONTROL PANEL PARTS

YKFED500EBS0 03 – CONTROL PANEL PARTS

Written by

in

YKFED500EBS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASUPPORT, BACK GUARD (RIGHT HAND)
1W10319109 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3W11084228 Whirlpool Control Panel
4SCREW (BLACK)
5W11180263-includeCORE Whirlpool W11180263 Electronic Control Board + Core
6Light, Indicator
7KNOB
8SCREW
10WPW10296657 Whirlpool Infinite Switch (Left Front)
10CSWITCH, INFINITE (RIGHT REAR)
10BWPW10441696 Infinite Switch (Right) Front)
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
11W10692155 Whirlpool Control Panel
12W10776098 Whirlpool Rear Cover
13RELAY (12V)
14W10278697 Whirlpool Vent Shield Assembly
15CABINET (NOT A SERVICEABLE PART)
16W11368920 Whirlpool Knob Bezel
