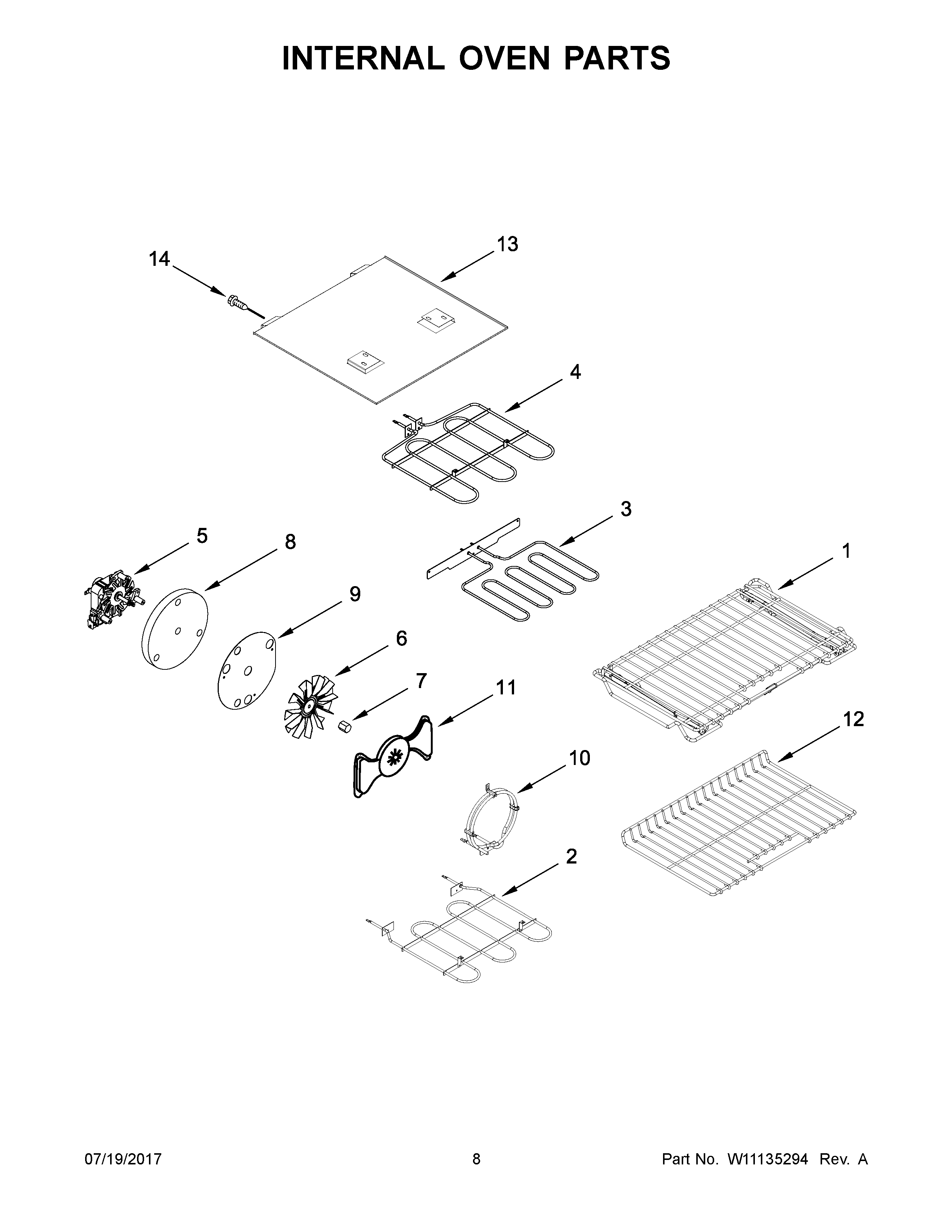

YKFED500EBS0 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	WPW10570870 Whirlpool Oven Rack
2	W11101534 Whirlpool Range Broil Element
3	W11662148 Whirlpool Bake Element
4	W10317476 Whirlpool Broil Element
5	W11235883 Whirlpool Fan Motor
6	W10819914 Whirlpool Convection Fan
7	W10794042 Whirlpool Nut
8	W10274268 Whirlpool Insulation
9	W10339476 Whirlpool Bracket Mounting
10	W10271639 Whirlpool Element
11	W10860133 Whirlpool Convection Baffle
12	W11550107 Whirlpool Oven Rack
13	W10319762 Whirlpool Heat Shield
14	SCREW
