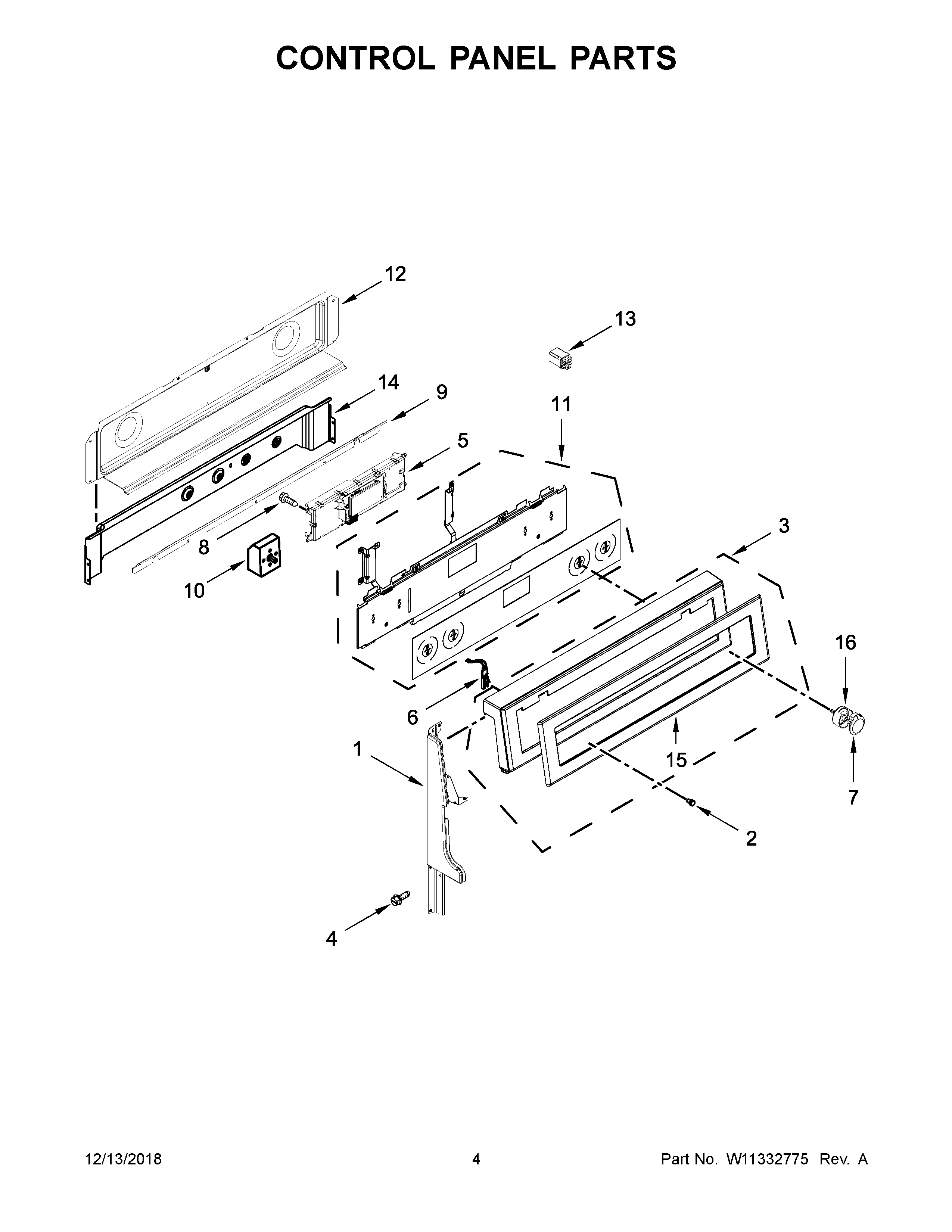

YKFED500EBS3 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1A	SUPPORT, BACK GUARD (RIGHT HAND)
2	WP3196068 Whirlpool Light Lens
3	W11084228 Whirlpool Control Panel
4	SCREW (BLACK)
5	W11180263-includeCORE Whirlpool W11180263 Electronic Control Board + Core
6	Light, Indicator
7	KNOB
8	SCREW
10	WPW10296657 Whirlpool Infinite Switch (Left Front)
10C	SWITCH, INFINITE (RIGHT REAR)
10A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10B	WPW10312185 Whirlpool Infinite Switch
11	W10692155 Whirlpool Control Panel
12	W10776098 Whirlpool Rear Cover
13	RELAY (12V)
14	W10278697 Whirlpool Vent Shield Assembly
15	CABINET (NOT A SERVICEABLE PART)
16	W11368920 Whirlpool Knob Bezel
