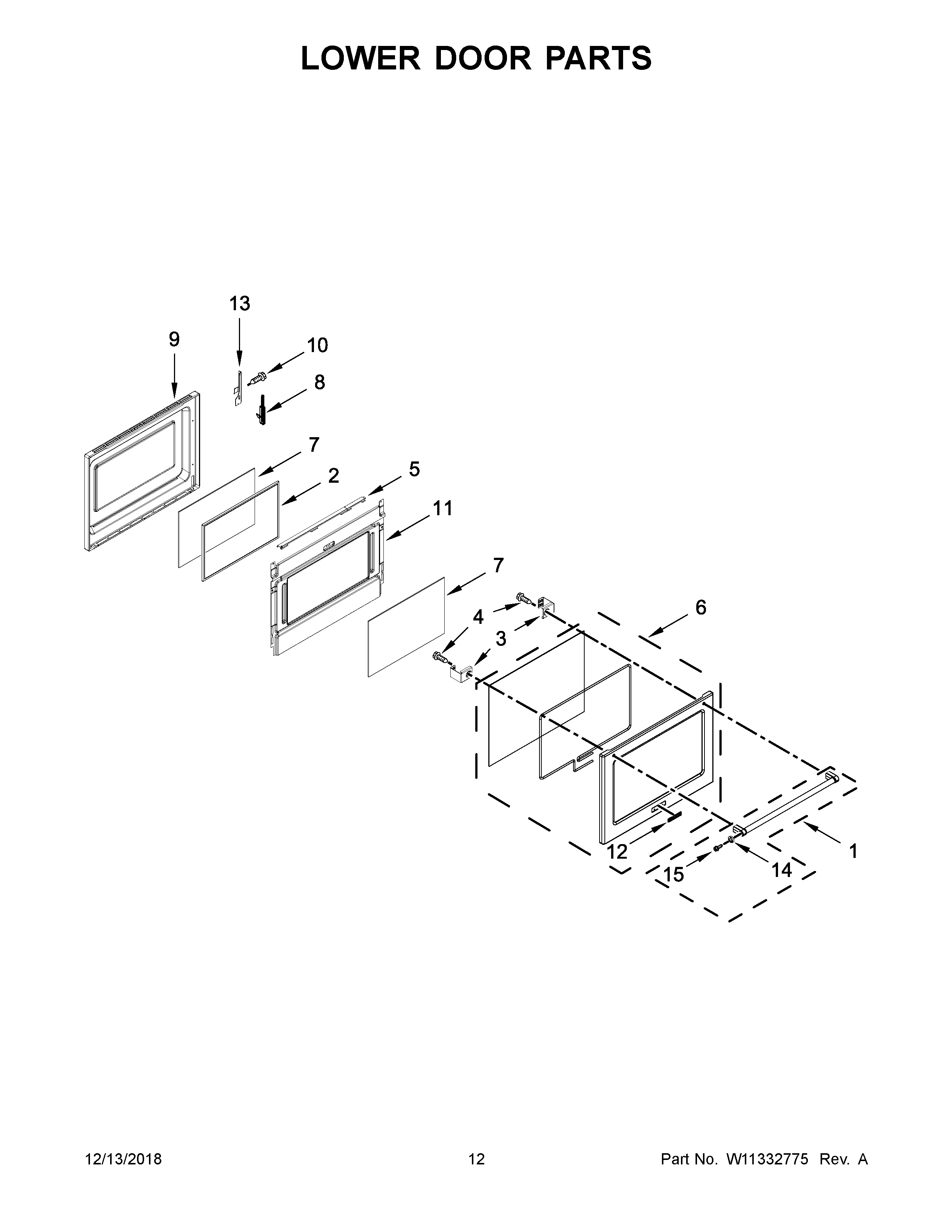

YKFED500EBS3 07 – LOWER DOOR PARTS

YKFED500EBS3 07 – LOWER DOOR PARTS

Written by

in

YKFED500EBS3 07 – LOWER DOOR PARTS

Products

PositionProduct
1W10674700 Whirlpool Door Handle
2INSULATION, DOOR
3W10575689 Whirlpool Mounting Bracket
4W10831019 Whirlpool Stove Door Screw
5WPW10272594 Whirlpool Window Frame
6W11156497 Whirlpool Door Glass
7WP9757706 Whirlpool Door Inner Glass
8WPW10335434 Whirlpool Door Hinge
8AWPW10335433 Whirlpool Door Hinge
9WPW10272698 Whirlpool Dishwasher Door Liner
10Screw
11W10340464 Whirlpool Retainer
12W10839793 Whirlpool Refrigerator Nameplate
13AWPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
14W10846207 Whirlpool KA Handle MEDALLIONS-RED
15W10920281 Whirlpool Screw
