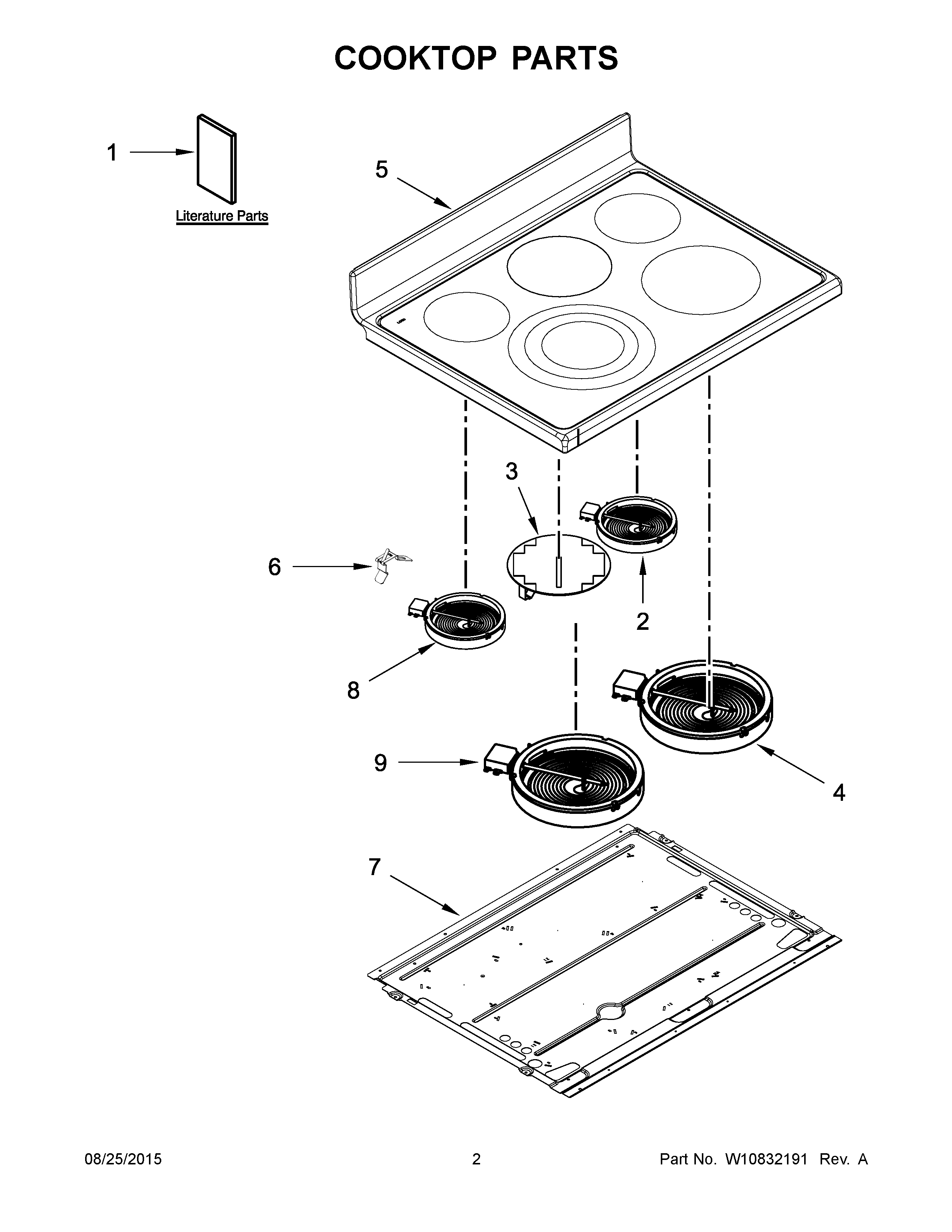

YKFED500ESS1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11171874 Whirlpool Wire Harness
NIW10406512 Whirlpool Refrigerator Infinite Switch Wire Harness (Left)
NIW10406501 Whirlpool Wire Harness Harness, Infinite Switch (Right)
NIW11172531 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NIHARNESS, MAIN
NIWIRING HARNESS PARTS, SCREW, GROUND
NIWPL 8019P01360
1CSAFER COOKING TIPS (ENGLISH
1BSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
2ELMNT-SURF
3WP9762851 Whirlpool Surface Element
4WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5W10780927 Whirlpool Cooktop
6WPW10225448 Whirlpool Spring Assembly
7WPW10260946 Whirlpool Panel
8WPW10270604 Whirlpool Surface Element
9W11101459 Whirlpool Surface Element
