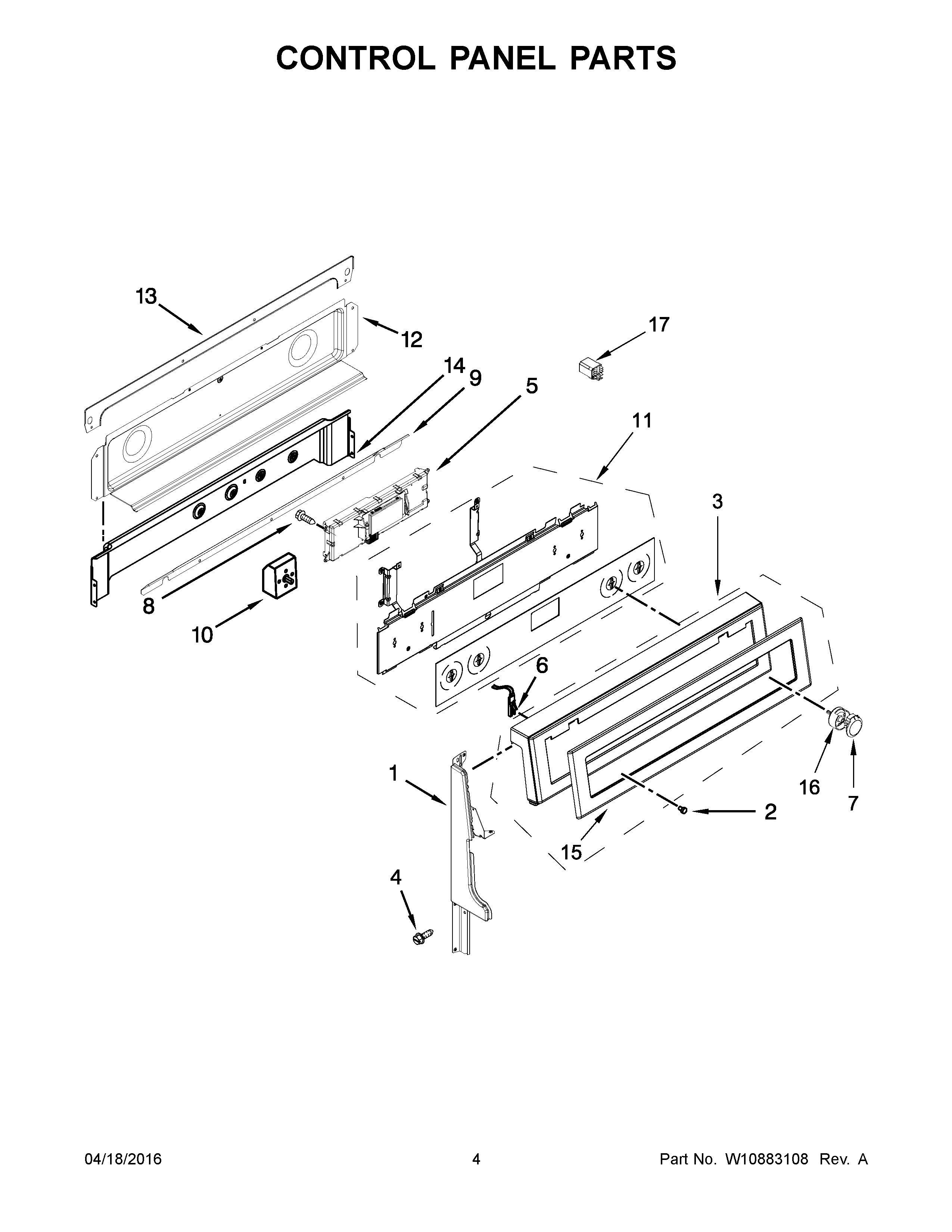

YKFED500ESS2 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	SUPPORT, BACK GUARD (RIGHT HAND)
1	W10319109 Whirlpool Endcap Panel
2	WP3196068 Whirlpool Light Lens
4	SCREW (BLACK)
5	WPW10778305-includeCORE Whirlpool WPW10778305 Refrigerator Electronic Control Board + Core
6	Light, Indicator
7	W11230929 Whirlpool Knob
8	SCREW
10	WPW10296657 Whirlpool Infinite Switch (Left Front)
10B	WPW10312185 Whirlpool Infinite Switch
10C	SWITCH, INFINITE (RIGHT REAR)
10A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
11	W10692155 Whirlpool Control Panel
12	W10776098 Whirlpool Rear Cover
13	WPW10292689 Whirlpool Wire Cover
14	W10278697 Whirlpool Vent Shield Assembly
15	W11164063 Whirlpool Control Panel
16	W11368920 Whirlpool Knob Bezel
17	RELAY (12V)
