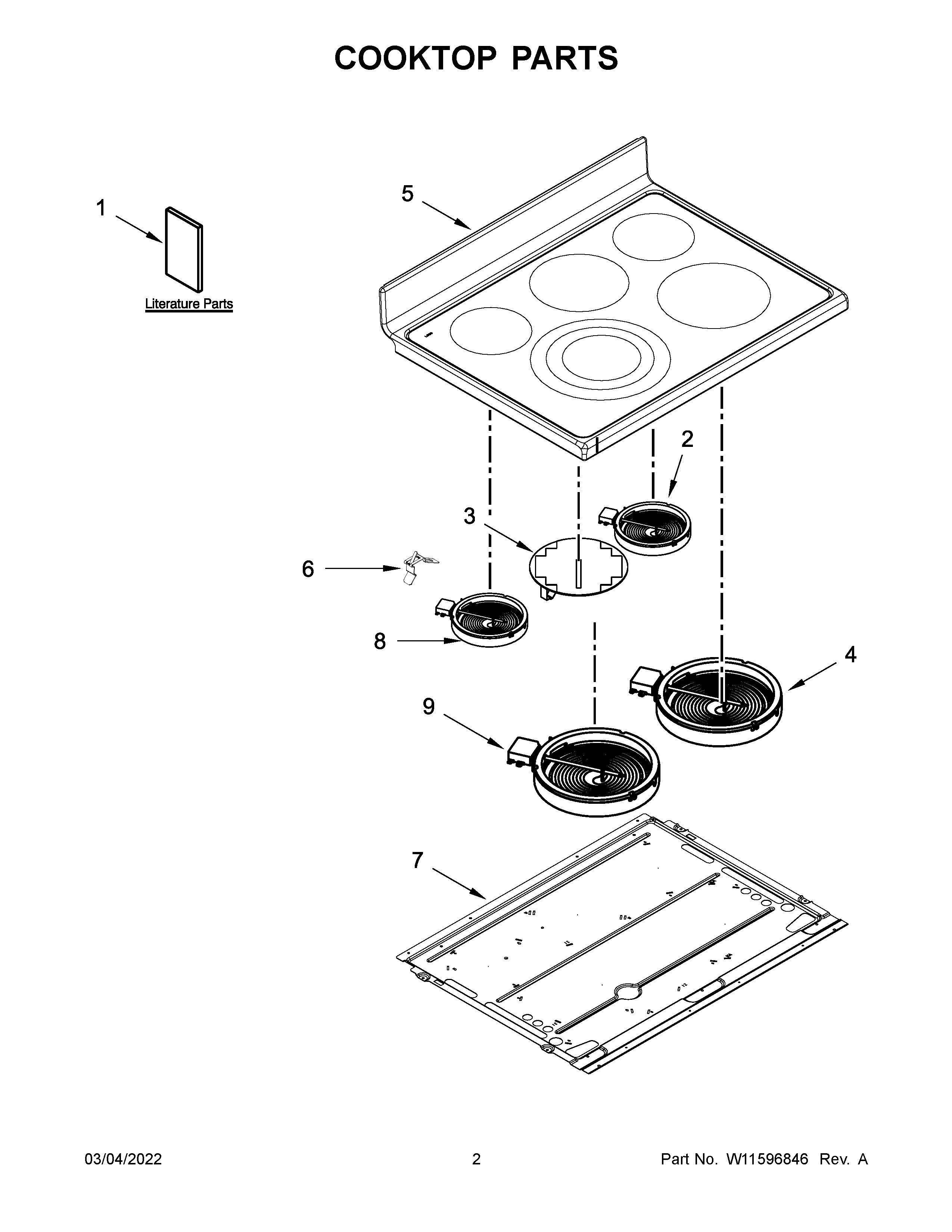

YKFED500ESS5 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIW11172425 Whirlpool Wire Harness
NIW11171874 Whirlpool Wire Harness
NIW11172428 Whirlpool Wire Harness
NIW11172427 Whirlpool Wire Harness
NIW11172531 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NIWIRING HARNESS PARTS, CLIP, WIRE
NIWIRING HARNESS PARTS, SCREW, GROUND
NIWPL 8019P01360
1BTECH SHEET
1AQUICK START GUIDE
1OWNER'S MANUAL
2ELMNT-SURF
3W11041453 Whirlpool Surface Element
4WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5W10780927 Whirlpool Cooktop
6WPW10225448 Whirlpool Spring Assembly
7WPW10260946 Whirlpool Panel
8WPW10270604 Whirlpool Surface Element
9W11101459 Whirlpool Surface Element
