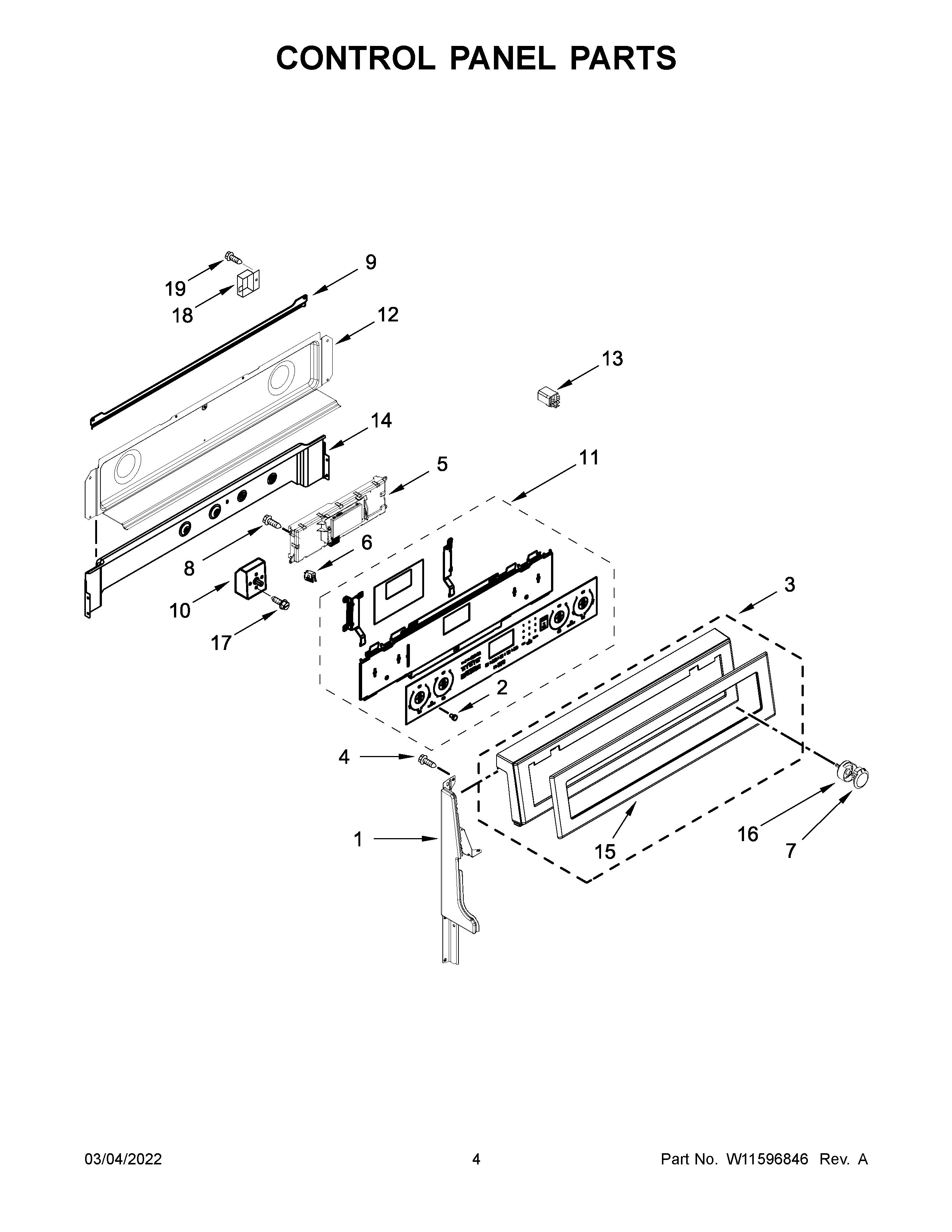

YKFED500ESS5 03 – CONTROL PANEL PARTS

YKFED500ESS5 03 – CONTROL PANEL PARTS

Written by

in

YKFED500ESS5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASUPPORT, BACK GUARD (RIGHT HAND)
1W10319109 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3W11164063 Whirlpool Control Panel
4SCREW
5W11594150-includeCORE Whirlpool W11594150 Refrigerator Electronic Control Board with Core
6Light, Indicator
7KNOB
8SCREW
10WPW10296657 Whirlpool Infinite Switch (Left Front)
10BWPW10312185 Whirlpool Infinite Switch
10CSWITCH, INFINITE (RIGHT REAR)
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
11W11527486 Whirlpool Control Panel
12W10776098 Whirlpool Rear Cover
13RELAY (12V)
14W10278697 Whirlpool Vent Shield Assembly
15CABINET (NOT A SERVICEABLE PART)
16W11368920 Whirlpool Knob Bezel
17W10674068 Whirlpool Screw
188285593 Whirlpool Oven Wire Cover
19SCREW
