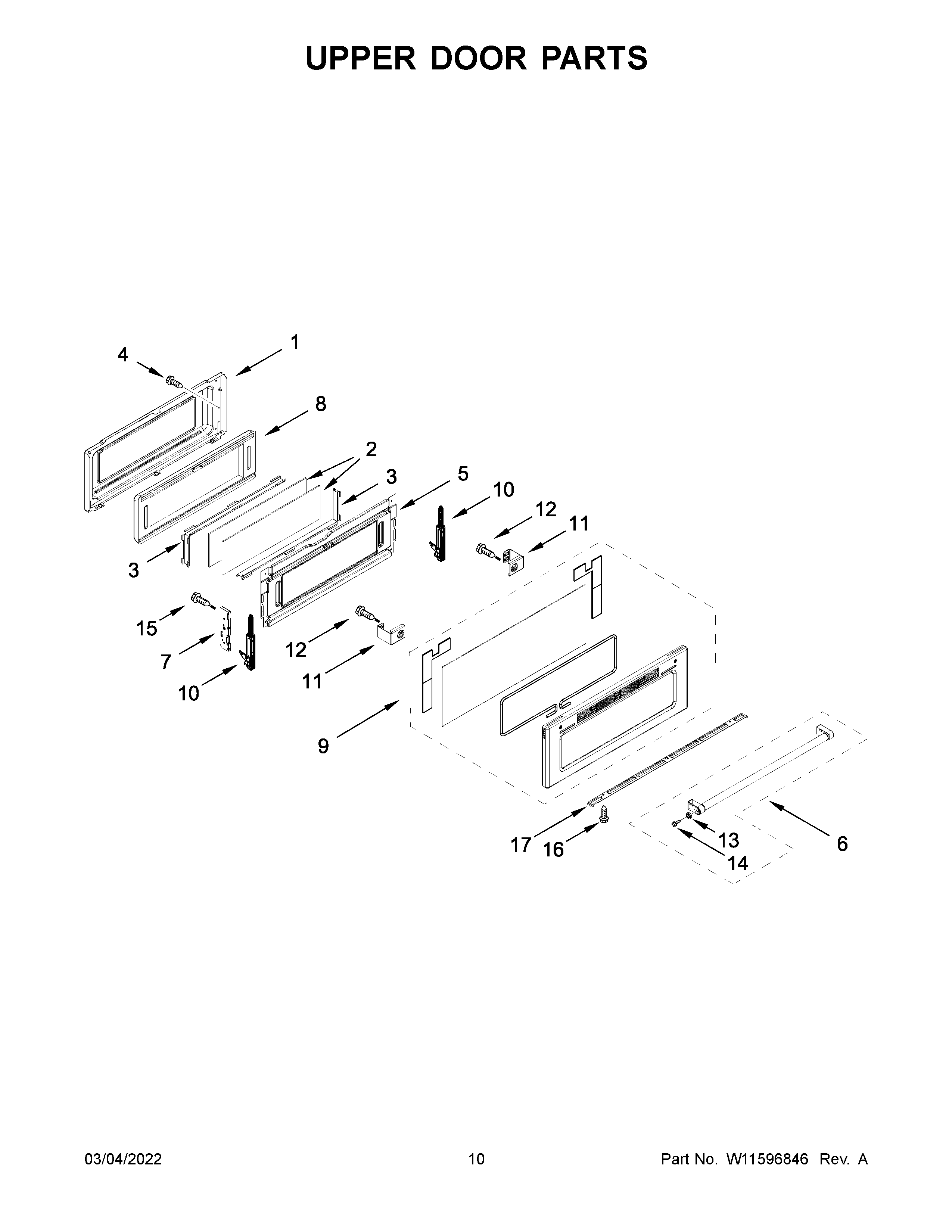

YKFED500ESS5 06 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	W11305108 Whirlpool Door Handle
7	W10647259 Whirlpool Hinge Receiver
8	WPW10321271 Whirlpool Insulation Assembly
9	W11600202 Whirlpool Door Glass
10A	WPW10485732 Whirlpool Door Hinge
10	WPW10485733 Whirlpool Door Hinge
11	W10645182 Whirlpool Mounting Bracket
12	W10831019 Whirlpool Stove Door Screw
13	W10846207 Whirlpool KA Handle MEDALLIONS-RED
14	W10920281 Whirlpool Screw
15	W10777162 Whirlpool Screw
16	W11690596 Whirlpool Screw
17	W11448964 Whirlpool Mounting Bracket
