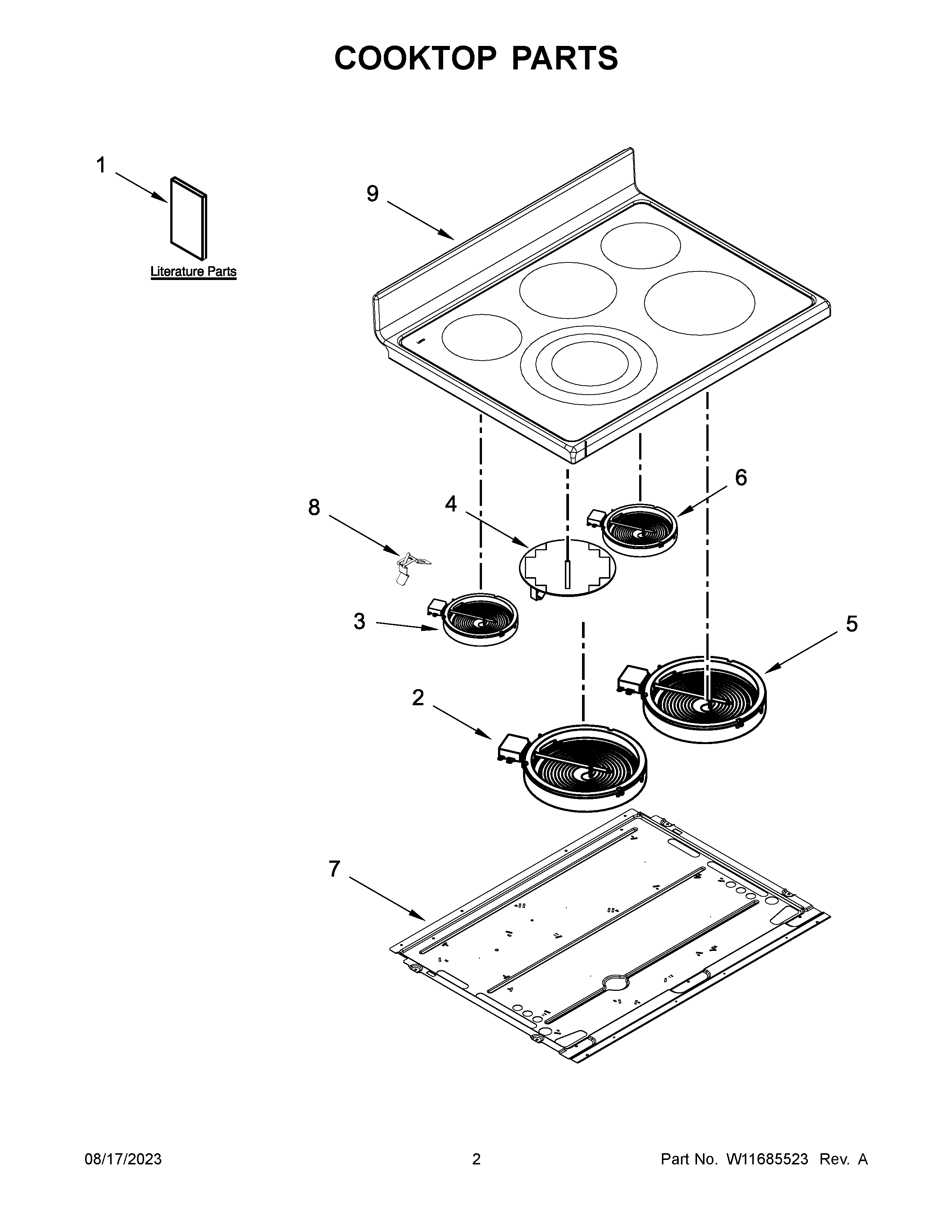

YKFED500ESS6 02 – COOKTOP PARTS

Products

Position	Product
NI	Nut
NI	W11172427 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	W11171874 Whirlpool Wire Harness
NI	W11172425 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
NI	W11226497 Whirlpool Power Cord
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, MAIN
NI	W11172428 Whirlpool Wire Harness
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2	W11101459 Whirlpool Surface Element
3	WPW10270604 Whirlpool Surface Element
4	W11041453 Whirlpool Surface Element
5	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6	ELMNT-SURF
7	WPW10260946 Whirlpool Panel
8	WPW10225448 Whirlpool Spring Assembly
9	W10780927 Whirlpool Cooktop
