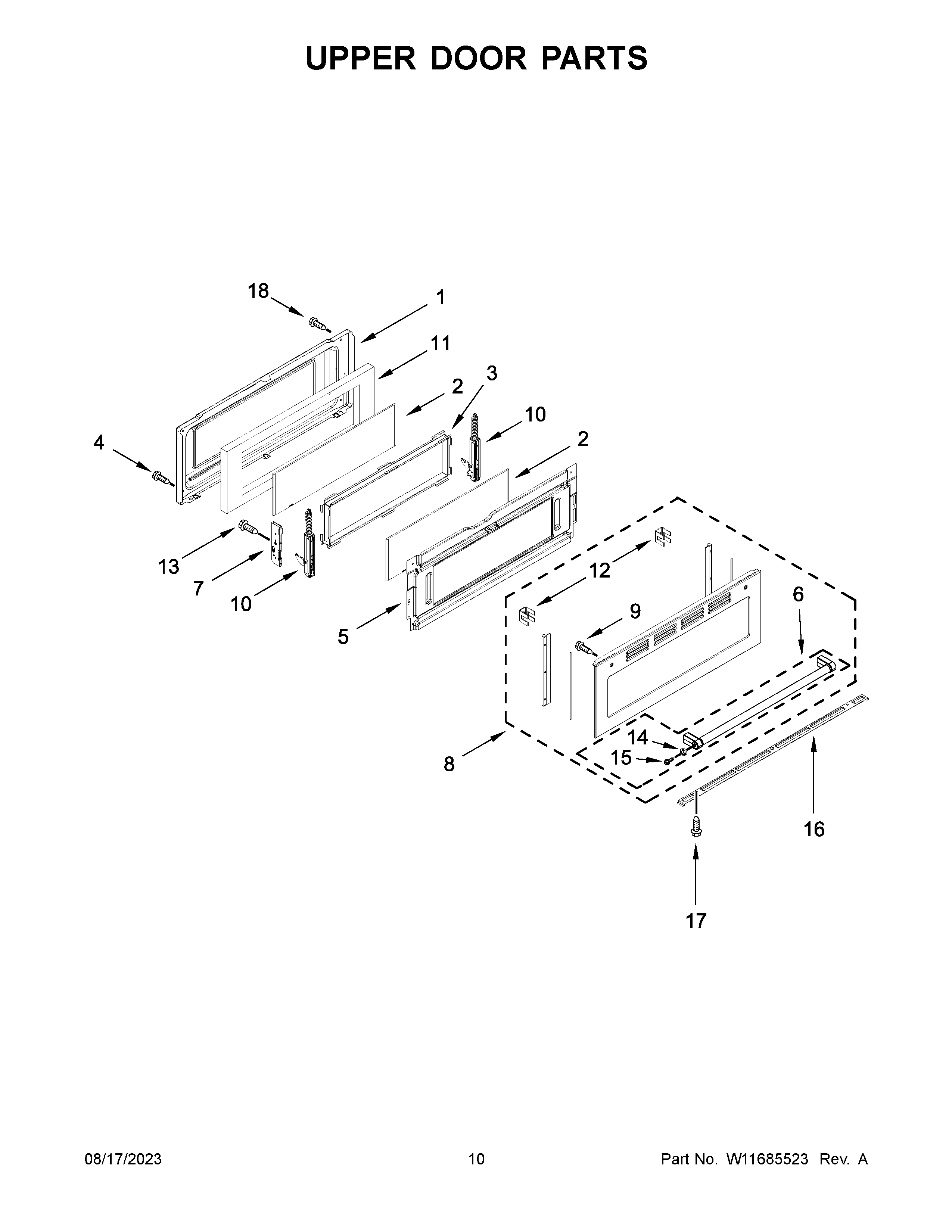

YKFED500ESS6 06 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	HNDLE-DOOR
7	W10647259 Whirlpool Hinge Receiver
8	W11132193 Whirlpool Glass Door
9	W10831019 Whirlpool Stove Door Screw
10A	WPW10485732 Whirlpool Door Hinge
10	WPW10485733 Whirlpool Door Hinge
11	WPW10321271 Whirlpool Insulation Assembly
12	W10575917 Whirlpool Spacer
13	W10777162 Whirlpool Screw
14	W10846207 Whirlpool KA Handle MEDALLIONS-RED
15	W10920281 Whirlpool Screw
16	W11448964 Whirlpool Mounting Bracket
17	W11690596 Whirlpool Screw
18	WPW10317886 Whirlpool Screw
