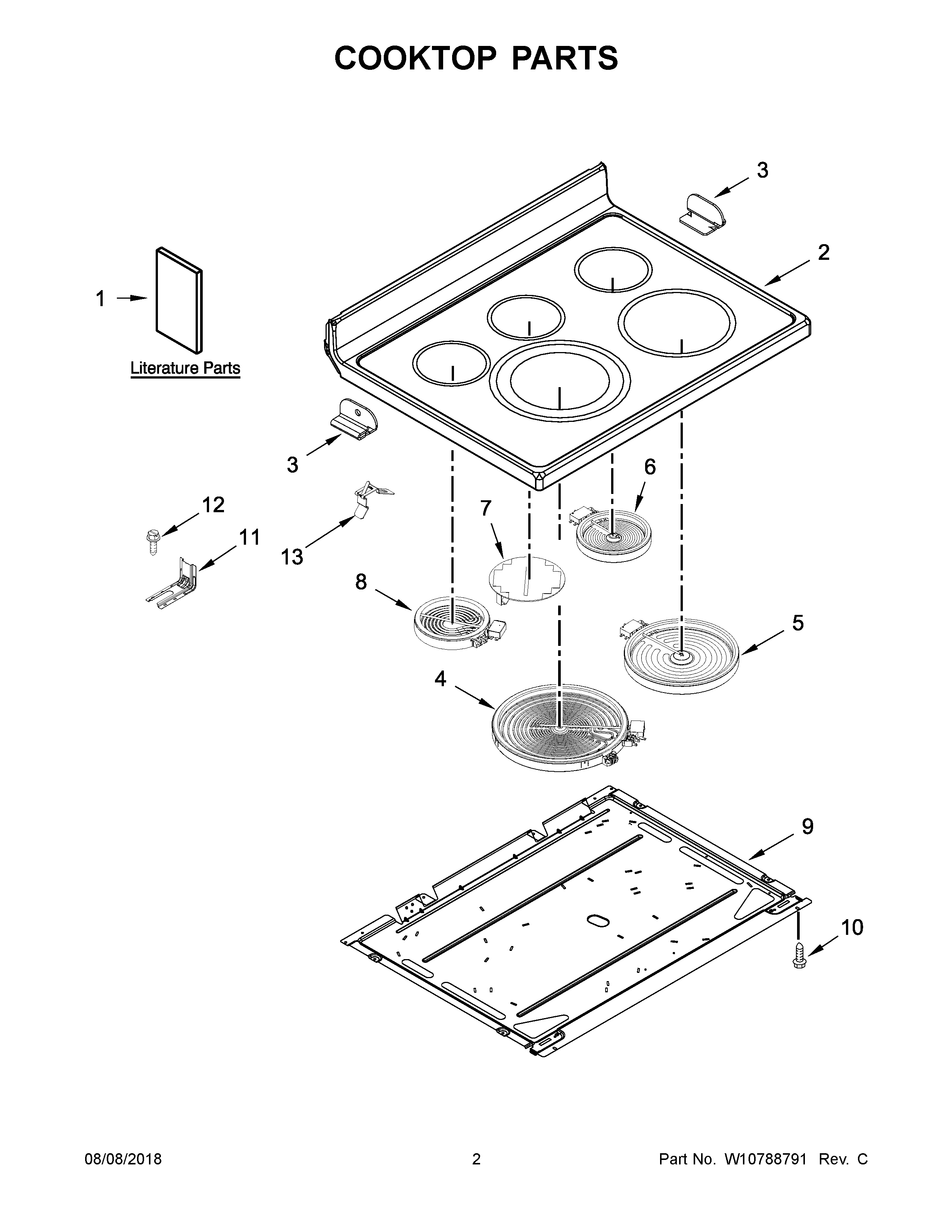

YKFEG500EBL0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
1D	QUICK START GUIDE
1E	QUICK START GUIDE (FRENCH)
1C	INSTALL, INSTRUCTIONS
1B	TECH SHEET (FRENCH)
1A	TECH SHEET
1	USE AND CARE GUIDE
2A	W10794932 Whirlpool Oven Cooktop
2	W10794931 Whirlpool Cooktop Assembly
2B	W10804319 Whirlpool Cooktop
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	PAN
10	WP3196557 Whirlpool Screw
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
13	WPW10225448 Whirlpool Spring Assembly
