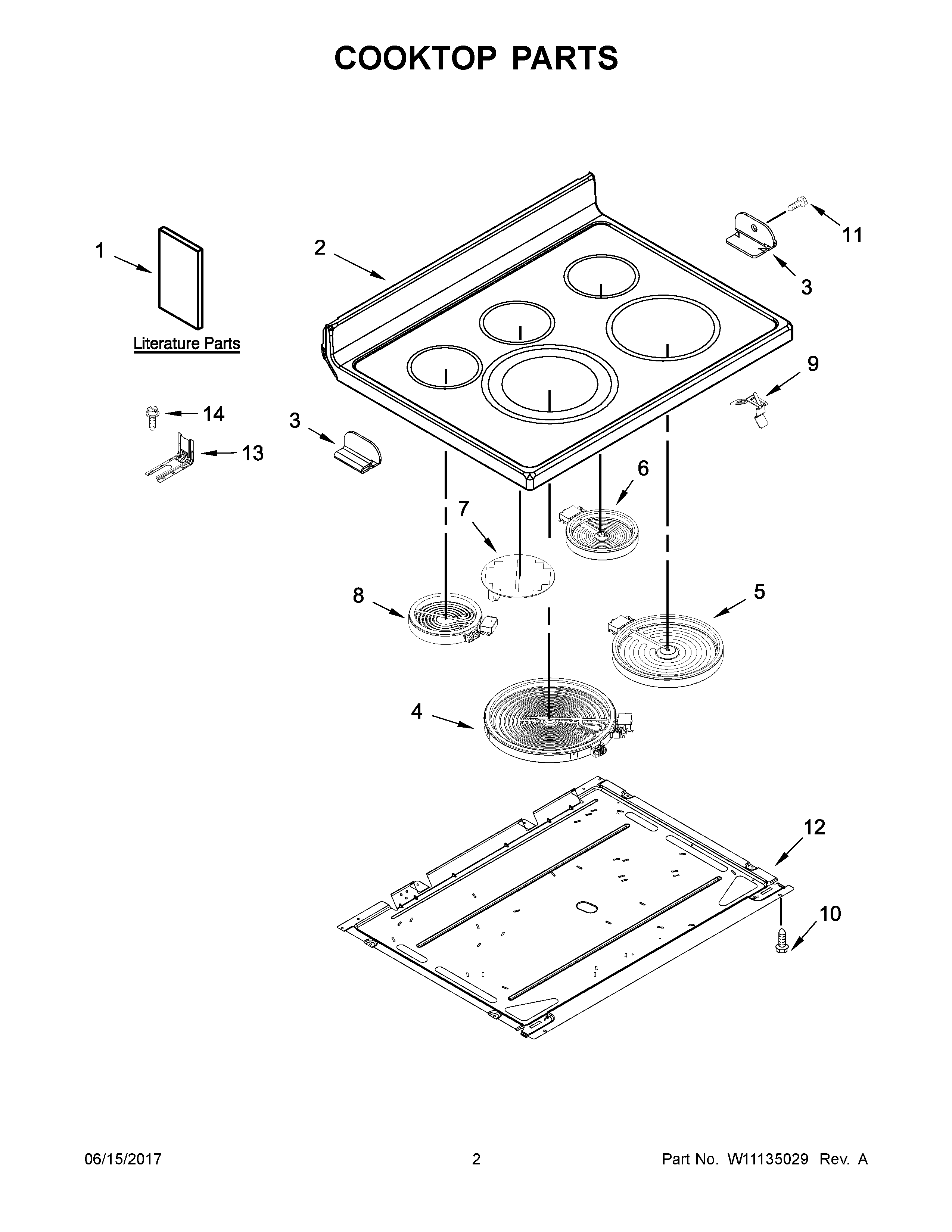

YKFEG500EBS2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11212183 Whirlpool Wire Harness
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, MAIN
NI	W11134592 Whirlpool Wire Harness
1C	TECH SHEET
1	USE AND CARE GUIDE
1D	TECH SHEET (FRENCH)
1E	INSTALL, INSTRUCTIONS
1A	QUICK START GUIDE
1B	QUICK START GUIDE (FRENCH)
1G	Safer Cooking Tips (French)
1F	SAFER COOKING TIPS (ENGLISH
2	W10794932 Whirlpool Oven Cooktop
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196557 Whirlpool Screw
11	3196172 Whirlpool Oven Screw
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
14	SCREW, ANTI-TIP KIT
