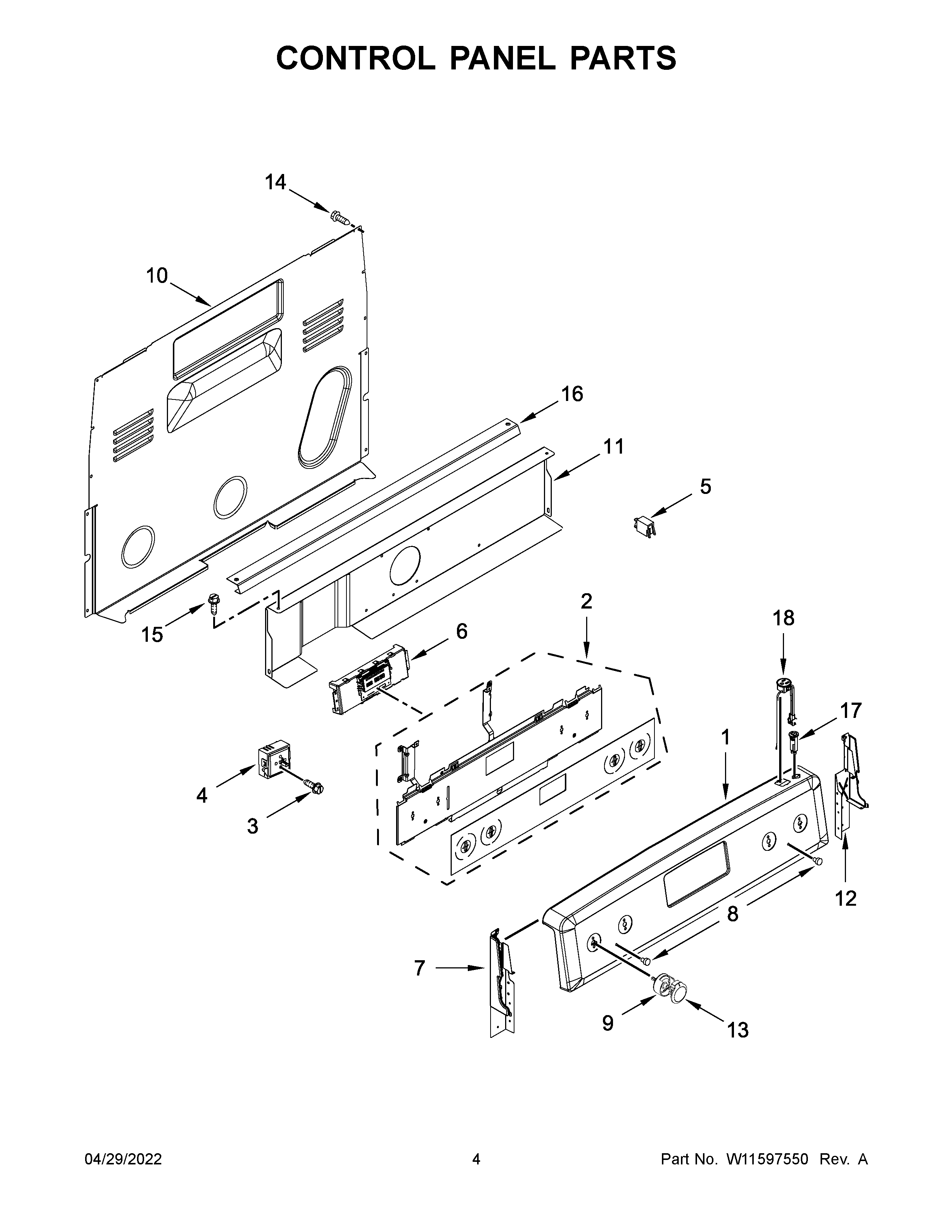

YKFEG500EBS7 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11084228 Whirlpool Control Panel
2	W11527488 Whirlpool Membrane Switch
3	SCREW
4A	W10917724 Whirlpool Infinite Switch
4B	W10911303 Whirlpool Infinite Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	W11088877 Whirlpool Electronic Control Board + Core
7	W11219664 Whirlpool Endcap Panel
8	WP3196068 Whirlpool Light Lens
9	W11368920 Whirlpool Knob Bezel
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12	W11219665 Whirlpool Panel Endcap
13	W10915061 Whirlpool Knob
14	W11245710 Whirlpool Refrigerator Screw
16	W10525121 Whirlpool Control Bracket
17	WP9757602 Whirlpool Breaker
18	RECEPTACLE (BLACK)
