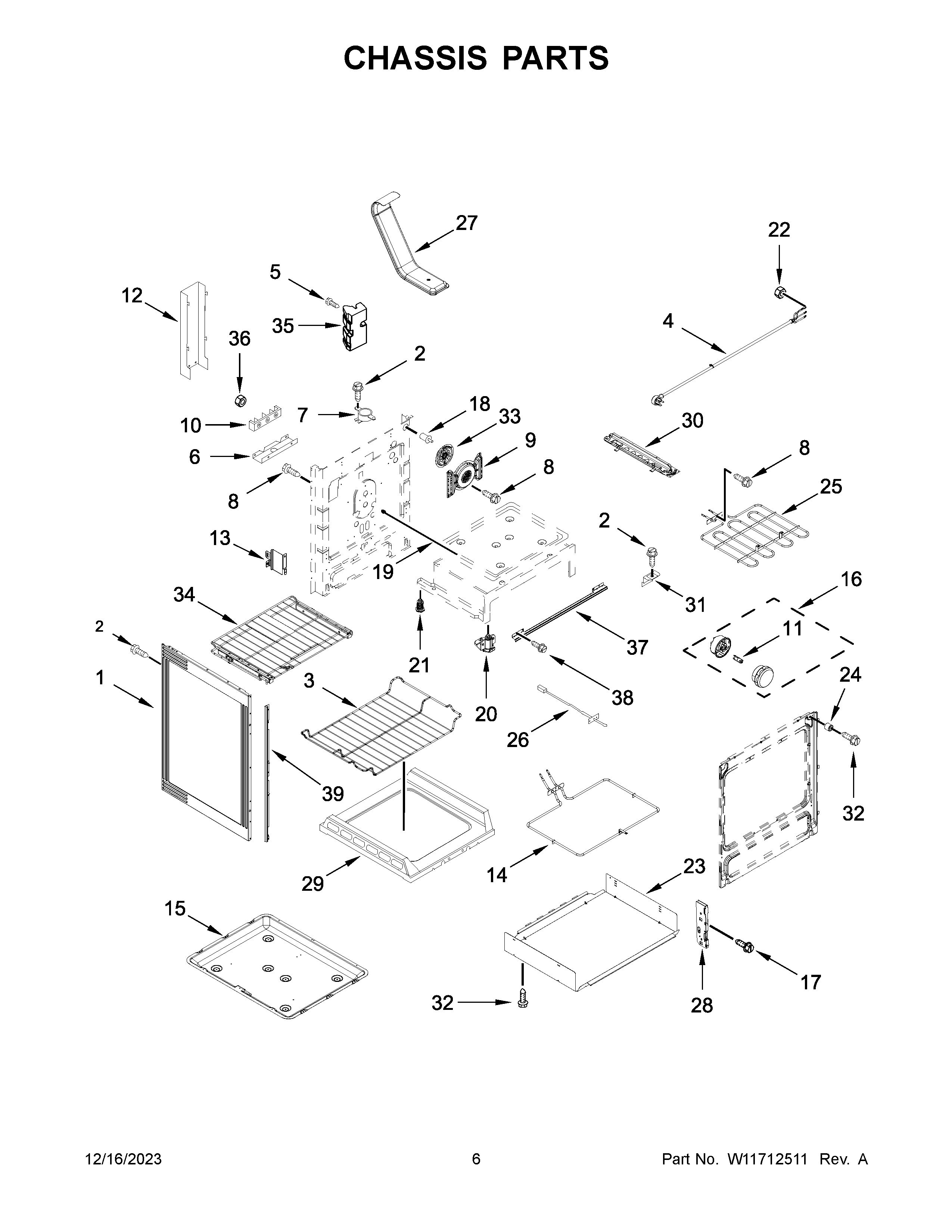

YKFEG500EBS8 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10225523 Whirlpool Insulation
NI	WPW10225524 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	WPW10194393 Whirlpool Insulation
NI	INSULATION, STRAP
1	W11730303 Whirlpool Side Panel
2	3196172 Whirlpool Oven Screw
3	WPW10289145 Whirlpool Oven Rack
4	W11226497 Whirlpool Power Cord
5	W11135756 Whirlpool Screw Torx
6	W11728255 Whirlpool Service Bracket
7	WP3196548 Whirlpool Thermal Fuse
8	SCREW
9	W11676564 Whirlpool Baffle Conveyor
10	WP8203546 Whirlpool Terminal Block
11	BULB-LIGHT
12	WPW10326122 Whirlpool Black Cover
13	W10273002 Whirlpool Support Bracket
14	W10779716 Whirlpool Oven Bake Element
15	W11379357 Whirlpool Overflow Pan
16	W11707255 Whirlpool Light
17	W10777162 Whirlpool Screw
18	SWTCH-LITE
19	W11370463 Whirlpool Door Rod Assembly
20	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
21	WPW10058460 Whirlpool Appliance Levelling Leg
22	Nut
23	W10726740 Whirlpool Heat Shield
24	W10877054 Whirlpool Spacer Assembly
25	W11321472 Whirlpool Broil Element
26	SENSOR-RANGE
27	WPW10134285 Whirlpool Vent Tube
28	W10647259 Whirlpool Hinge Receiver
29	W10777210 Whirlpool Oven Bottom
30A	WPW10306546 Whirlpool Base Rail
31	W10035900 Whirlpool Support Bracket
32	WPW10067840 Whirlpool Screw
33	W10903746 Whirlpool Convection Fan
34	WPW10531060 Whirlpool Oven Rack
35	W11135752 Whirlpool Anchor Tip
36	WP3400029 Whirlpool Dishwasher Nut
37	BRACKET, FRONT FRAME
38	W11169708 Whirlpool Screw
39	W11594227 Whirlpool Rail Mounting
