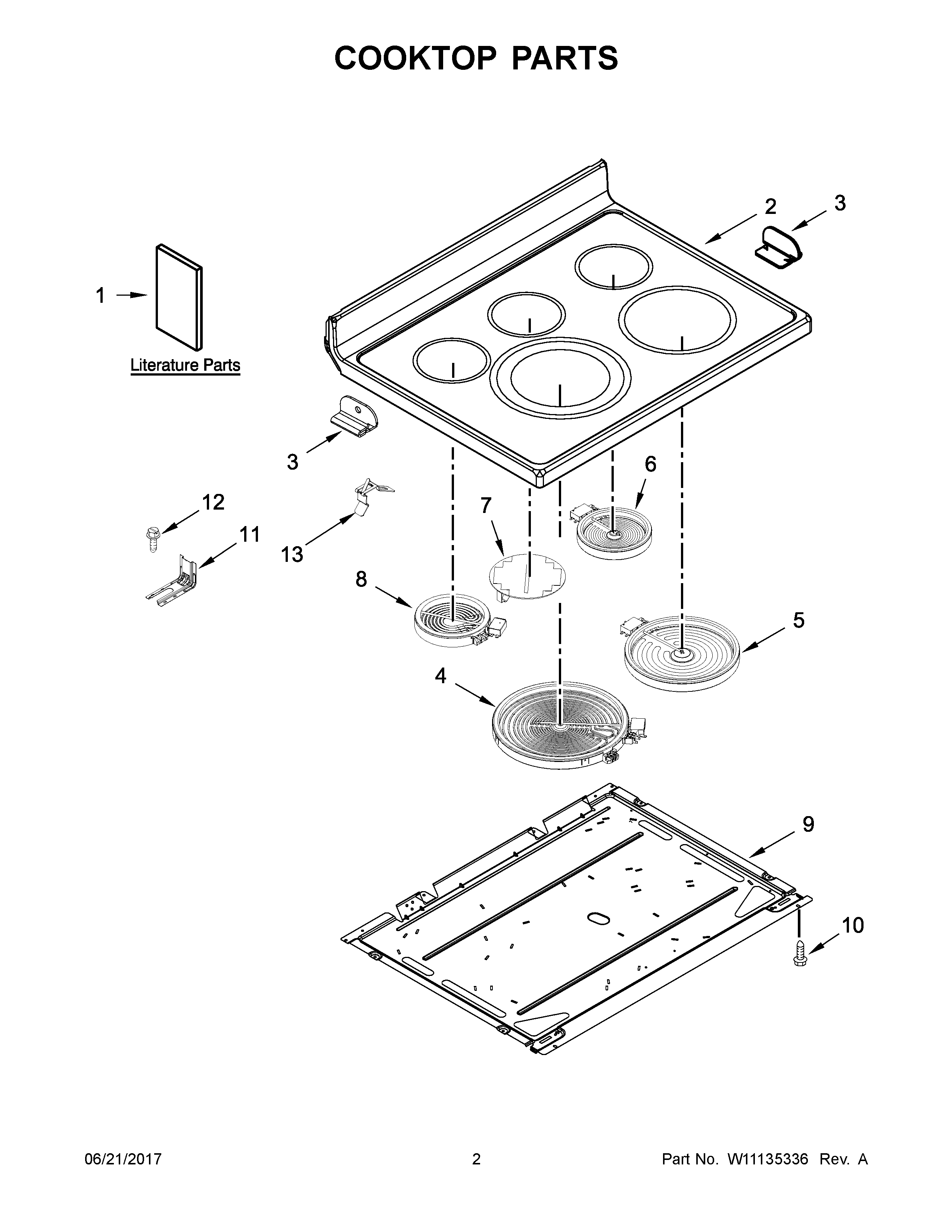

YKFEG500ESS2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
1	USE AND CARE GUIDE
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
1A	TECH SHEET
1B	TECH SHEET (FRENCH)
1C	INSTALL, INSTRUCTIONS
1G	QUICK START GUIDE (FRENCH)
1F	QUICK START GUIDE
2A	W10794932 Whirlpool Oven Cooktop
2B	W10804319 Whirlpool Cooktop
2	W10794931 Whirlpool Cooktop Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	PAN
10	WP3196557 Whirlpool Screw
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
13	WPW10225448 Whirlpool Spring Assembly
