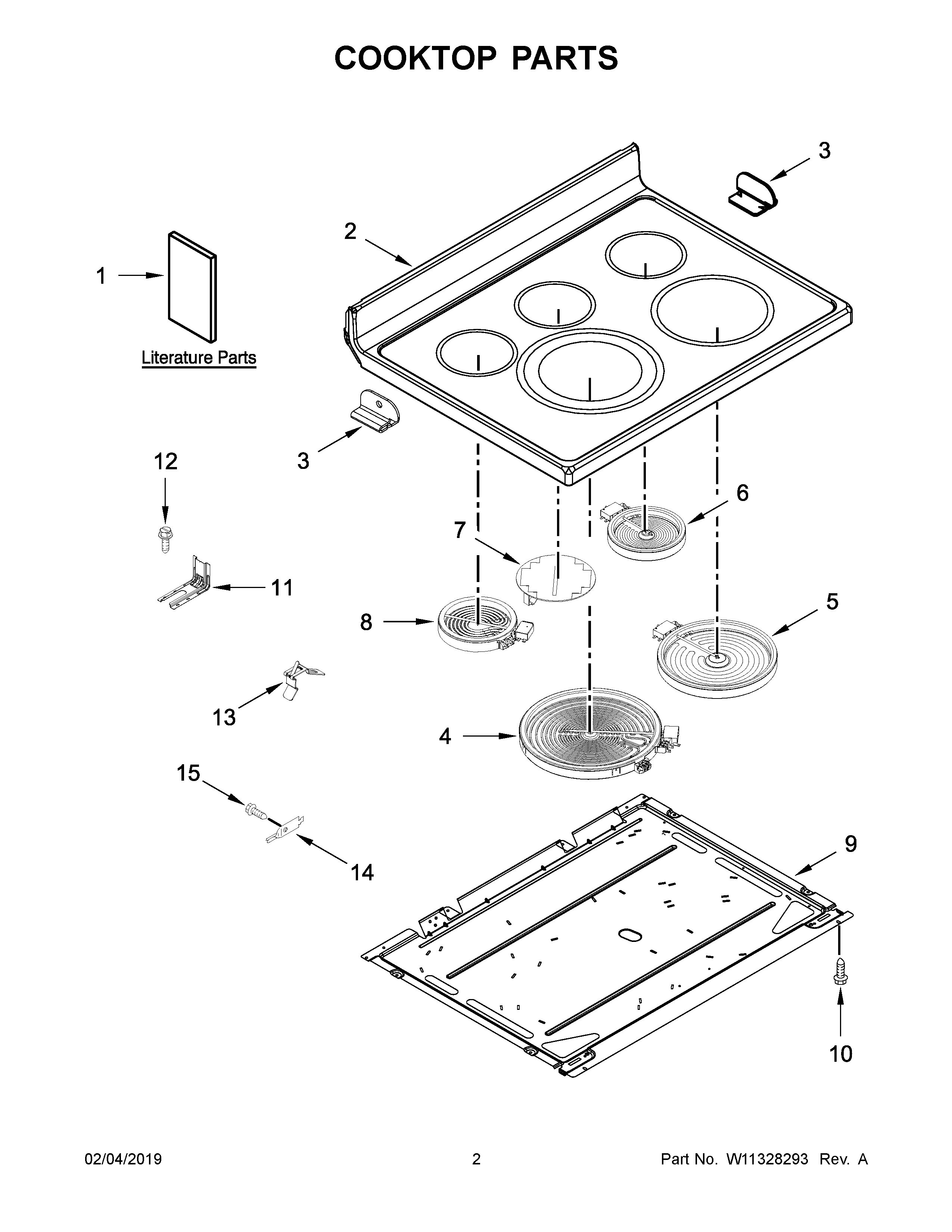

YKFEG500ESS3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11134592 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP (LEFT)
NI	W11212183 Whirlpool Wire Harness
NI	HARNESS, COOKTOP (RIGHT)
1E	QUICK START GUIDE (FRENCH)
1D	QUICK START GUIDE
1	USE AND CARE GUIDE
1A	TECH SHEET
1B	TECH SHEET (FRENCH)
1C	INSTALL, INSTRUCTIONS
2	W10804319 Whirlpool Cooktop
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	PAN
10	WP3196557 Whirlpool Screw
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
13	WPW10225448 Whirlpool Spring Assembly
14	WP3195060 Whirlpool Cooktop Pin
15	SCREW
