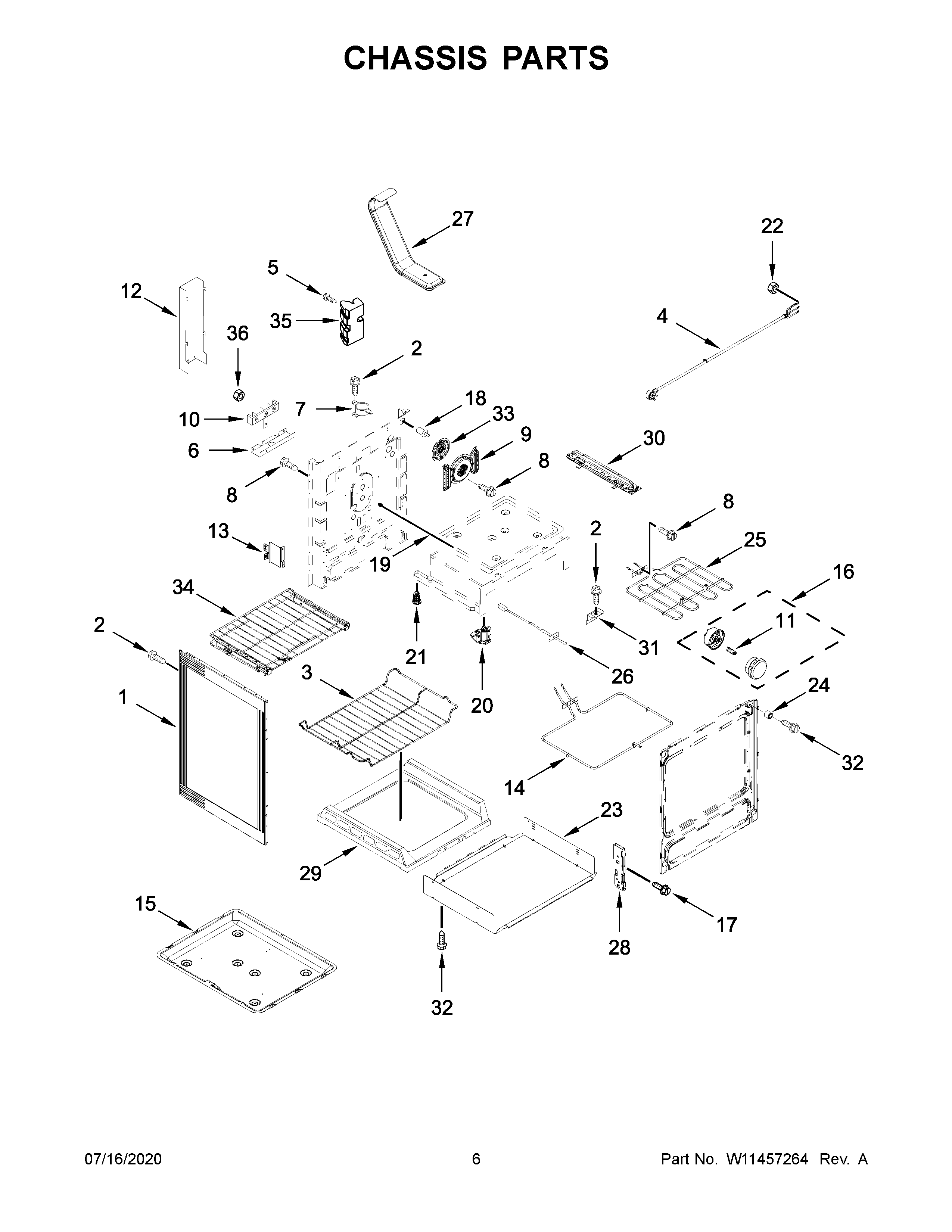

YKFEG500ESS4 04 – CHASSIS PARTS

YKFEG500ESS4 04 – CHASSIS PARTS

Written by

in

YKFEG500ESS4 04 – CHASSIS PARTS

Products

PositionProduct
NIWPW10194393 Whirlpool Insulation
NIINSULATION, STRAP
NIWPW10225523 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIWPW10225524 Whirlpool Insulation
1W11730303 Whirlpool Side Panel
23196172 Whirlpool Oven Screw
3WPW10289145 Whirlpool Oven Rack
4W11226497 Whirlpool Power Cord
5W11135756 Whirlpool Screw Torx
6W11728255 Whirlpool Service Bracket
7WP3196548 Whirlpool Thermal Fuse
8SCREW
9W11676564 Whirlpool Baffle Conveyor
10WP8203546 Whirlpool Terminal Block
11BULB-LIGHT
12WPW10326122 Whirlpool Black Cover
13W10273002 Whirlpool Support Bracket
14W10779716 Whirlpool Oven Bake Element
15W11379357 Whirlpool Overflow Pan
16W11594027 Whirlpool Range Oven Light Socket
17W10777162 Whirlpool Screw
18WP9757262 Whirlpool Light Switch
19W11370463 Whirlpool Door Rod Assembly
20WPW10341186 Whirlpool Refrigerator Front Levelling Leg
21WPW10058460 Whirlpool Appliance Levelling Leg
22Nut
23W10726740 Whirlpool Heat Shield
24W10877054 Whirlpool Spacer Assembly
25W11321472 Whirlpool Broil Element
26SENSOR-RANGE
27WPW10134285 Whirlpool Vent Tube
28W10647259 Whirlpool Hinge Receiver
29W10777210 Whirlpool Oven Bottom
30AWPW10306546 Whirlpool Base Rail
31W10035900 Whirlpool Support Bracket
32WPW10067840 Whirlpool Screw
33W10903746 Whirlpool Convection Fan
34WPW10531060 Whirlpool Oven Rack
35W11135752 Whirlpool Anchor Tip
36WP3400029 Whirlpool Dishwasher Nut
