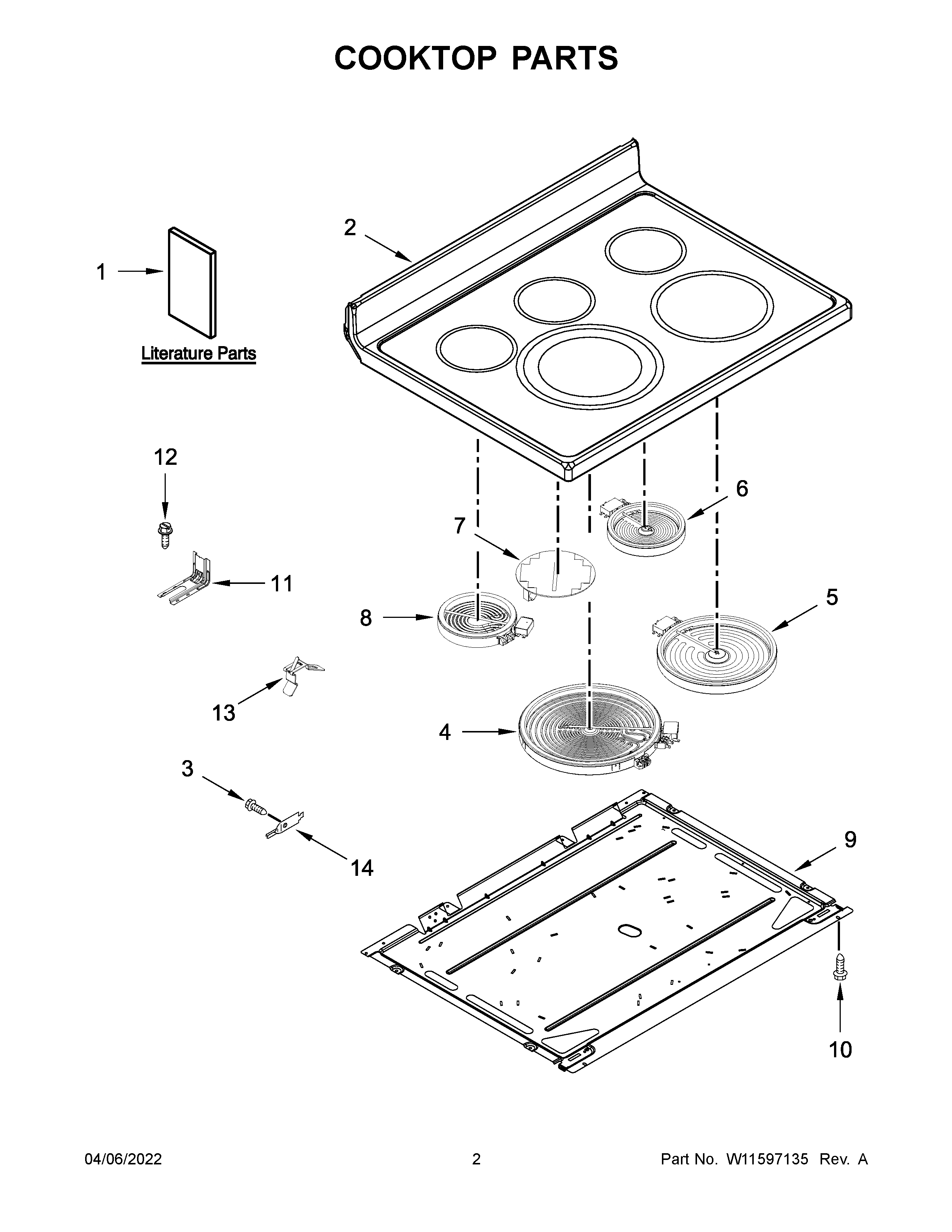

YKFEG500ESS7 02 – COOKTOP PARTS

Products

Position	Product
NI	W11212183 Whirlpool Wire Harness
NI	HARNESS, COOKTOP (RIGHT)
NI	3196200 Whirlpool Clip
NI	HARNESS, COOKTOP (LEFT)
NI	W11134592 Whirlpool Wire Harness
NI	MAIN HARNESS
NI	CABINET (NOT A SERVICEABLE PART)
1	USE AND CARE GUIDE
1C	QUICK START GUIDE
1A	TECH SHEET WEB
1B	TECH SHEET
2	W10804319 Whirlpool Cooktop
3	SCREW
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	PAN
10	WP3196557 Whirlpool Screw
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
13	WPW10225448 Whirlpool Spring Assembly
14	WP3195060 Whirlpool Cooktop Pin
