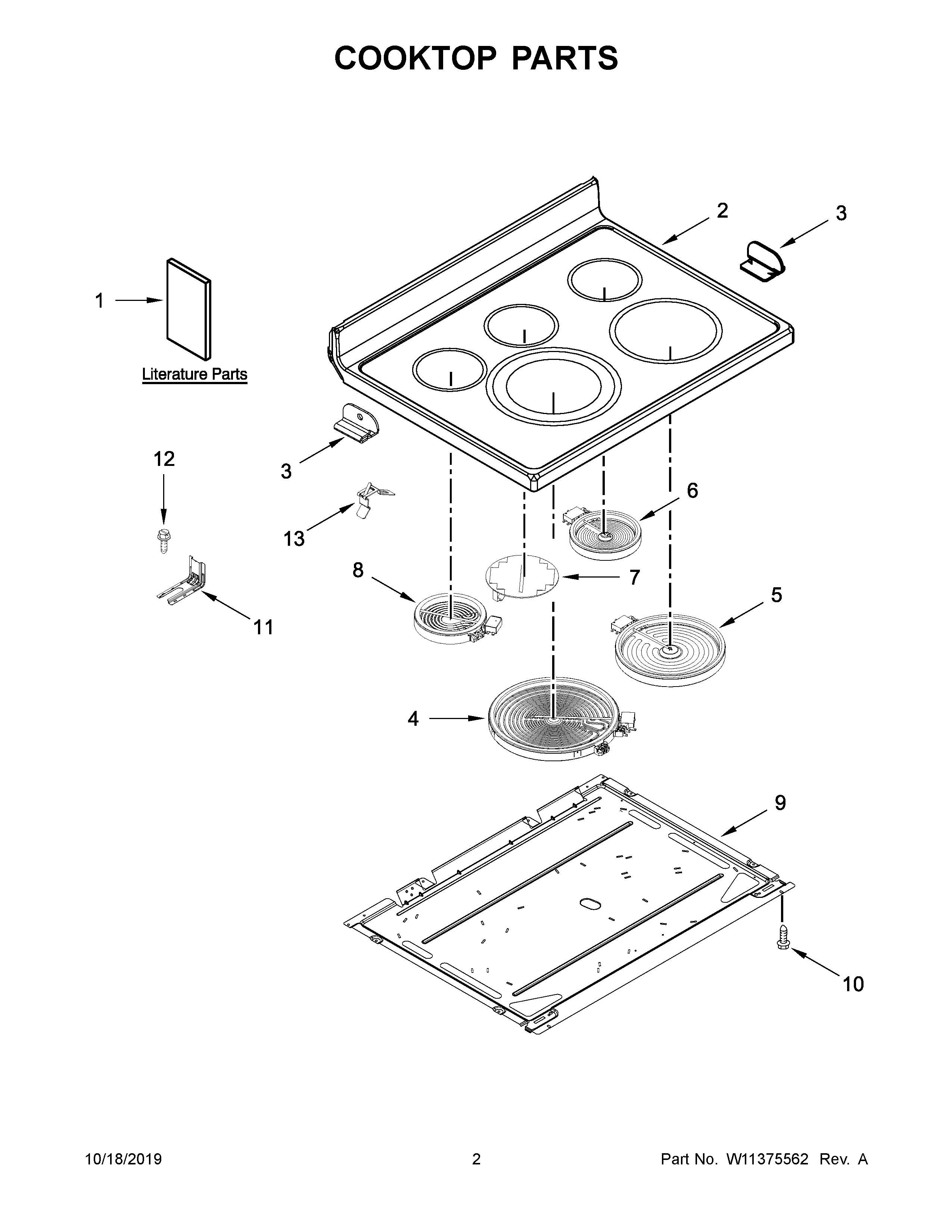

YKFEG500EWH3 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, MAIN
1A	TECH SHEET
1B	TECH SHEET (FRENCH)
1C	INSTALL, INSTRUCTIONS
1	USE AND CARE GUIDE
1E	QUICK START GUIDE (FRENCH)
1D	QUICK START GUIDE
2	W10794931 Whirlpool Cooktop Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	PAN
10	WP3196557 Whirlpool Screw
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
13	WPW10225448 Whirlpool Spring Assembly
