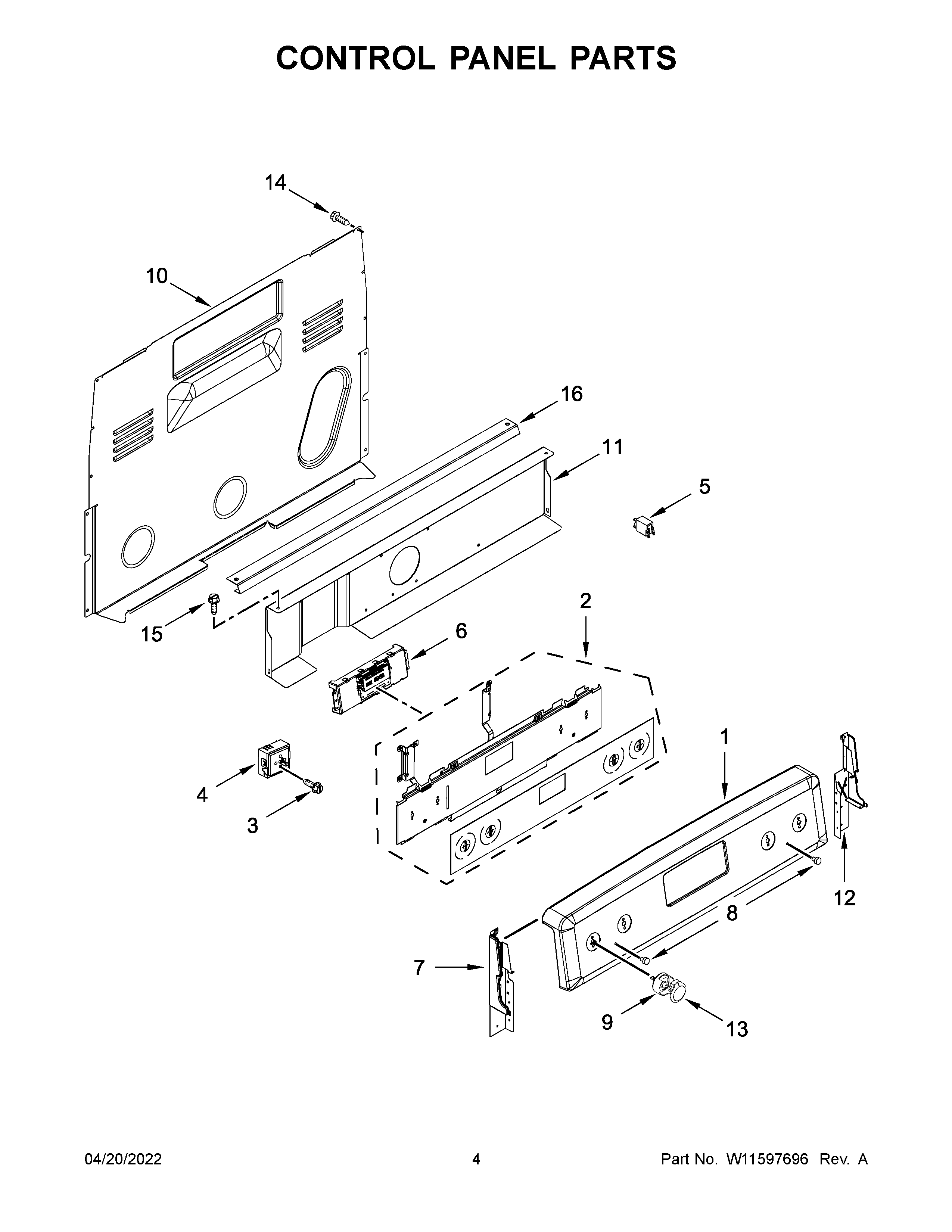

YKFEG500EWH7 03 – CONTROL PANEL PARTS

YKFEG500EWH7 03 – CONTROL PANEL PARTS

Written by

in

YKFEG500EWH7 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10645847 Whirlpool Control Panel
2W11527493 Whirlpool Membrane Switch
3SCREW
4SWITCH-INF
4BW10911303 Whirlpool Infinite Switch
4AW10917724 Whirlpool Infinite Switch
5WP8523265 Whirlpool Indicator Light
6W11088877 Whirlpool Electronic Control Board + Core
7W11219365 Whirlpool Panel Endcap
8WP3196068 Whirlpool Light Lens
9W11368920 Whirlpool Knob Bezel
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W11219370 Whirlpool Endcap Panel
13W10915061 Whirlpool Knob
14W11245710 Whirlpool Refrigerator Screw
16W10525121 Whirlpool Control Bracket
