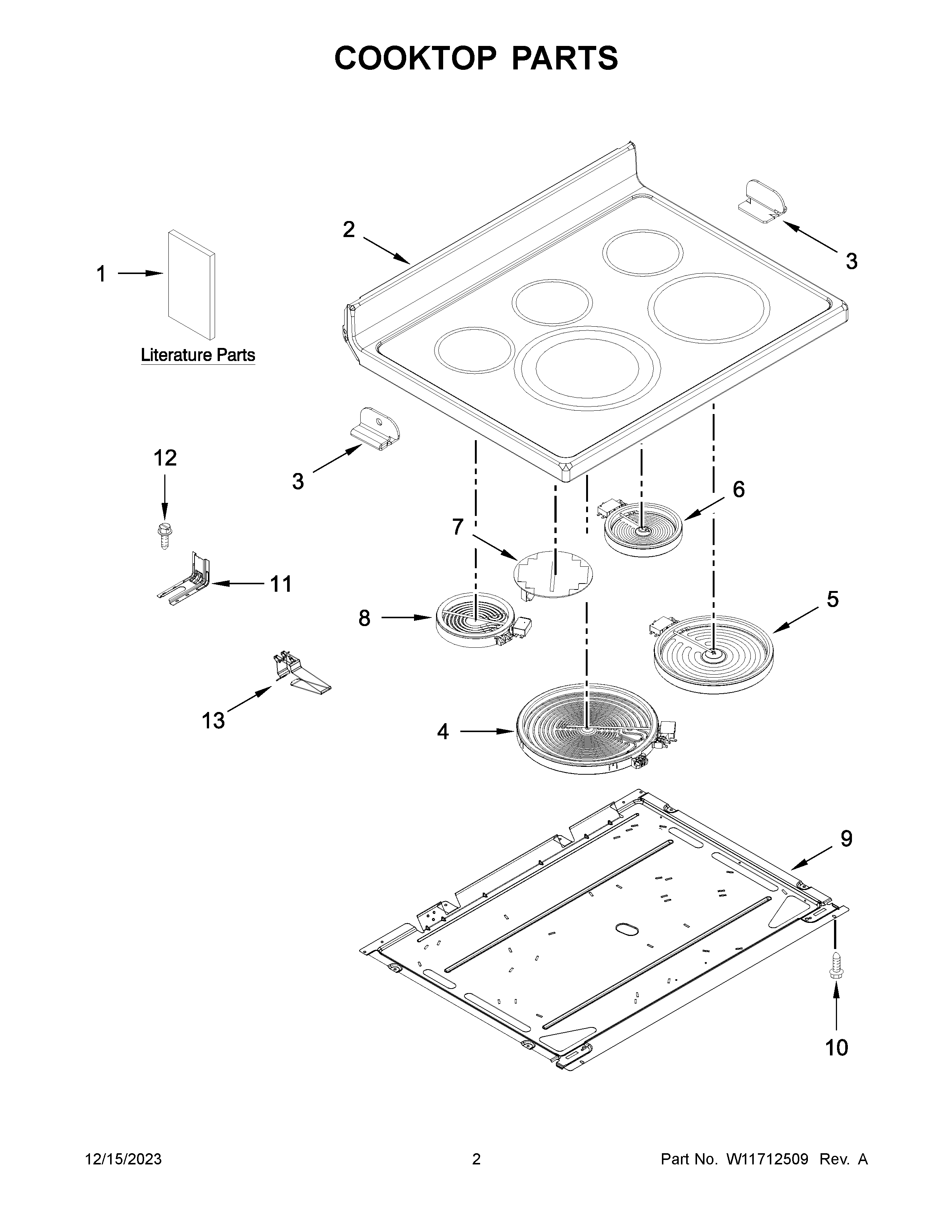

YKFEG500EWH8 02 – COOKTOP PARTS

Products

PositionProduct
NIW11212183 Whirlpool Wire Harness
NIHARNESS, COOKTOP (RIGHT)
NIHARNESS, COOKTOP (LEFT)
NIW11134592 Whirlpool Wire Harness
NIMAIN HARNESS
NIFOLLOWING PARTS NOT ILLUSTRATED
1USE AND CARE GUIDE
1BQUICK START GUIDE
1CTECH SHEET WEB
1ATECH SHEET
2W10794931 Whirlpool Cooktop Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W10823727 Whirlpool Stove Right Front Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11041453 Whirlpool Surface Element
8WPW10342780 Whirlpool Surface Element
9PAN
10WP3196557 Whirlpool Screw
11W11447673 Whirlpool Range Tip Anchor
12SCREW, ANTI-TIP KIT
13W11663556 Whirlpool Spring Assembly
