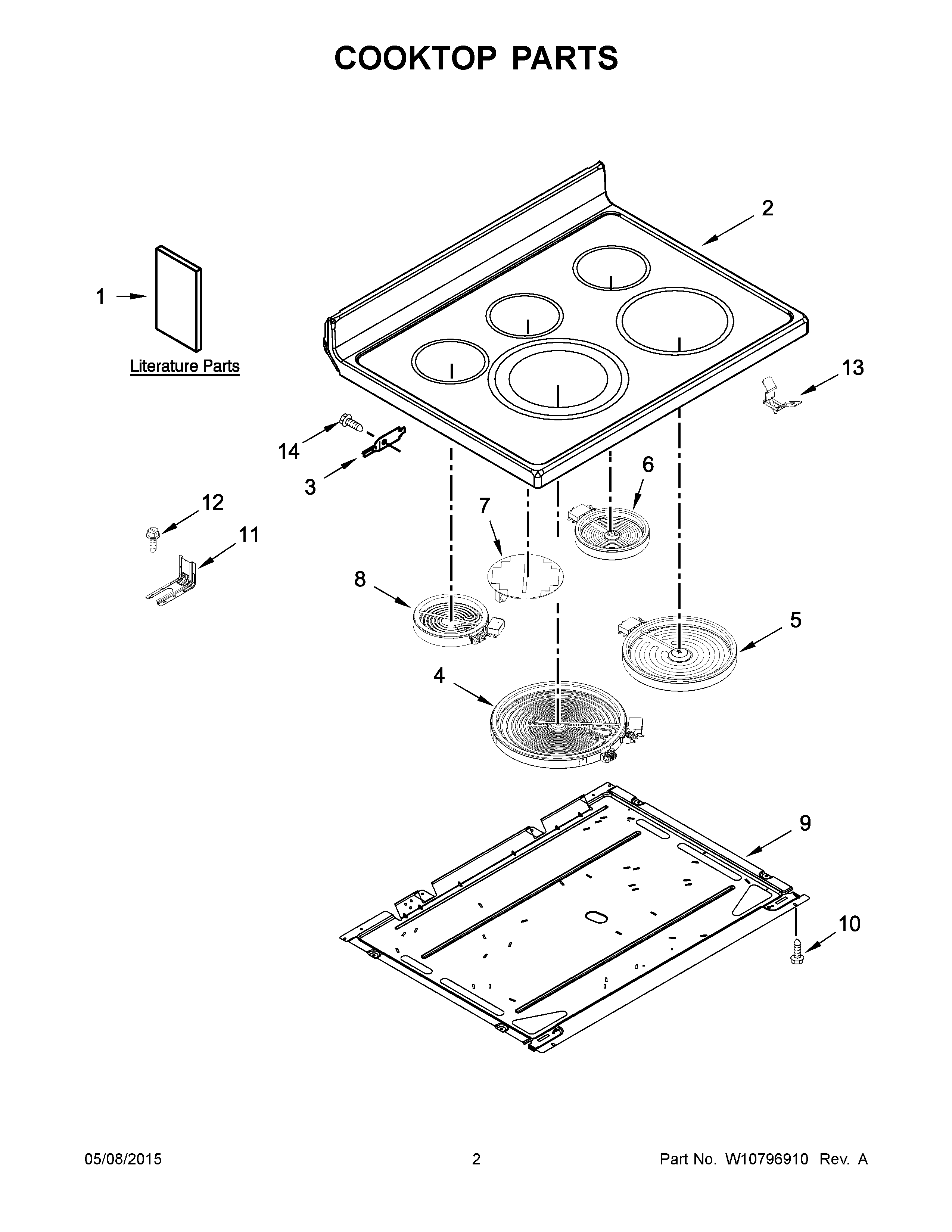

YKFEG510ESS0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	3400964 Whirlpool Oven Clip
NI	W10324946 Whirlpool Wire Harness
NI	W10324944 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	CABINET (NOT A SERVICEABLE PART)
1A	TECH SHEET
1G	QUICK START GUIDE (FRENCH)
1F	QUICK START GUIDE
1B	TECH SHEET (FRENCH)
1C	INSTALL, INSTRUCTIONS
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
1	USER AND CARE GUIDE
2	W10804319 Whirlpool Cooktop
3	WP3195060 Whirlpool Cooktop Pin
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11047668 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	PAN
10	WP3196557 Whirlpool Screw
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
13	WPW10225448 Whirlpool Spring Assembly
14	SCREW
