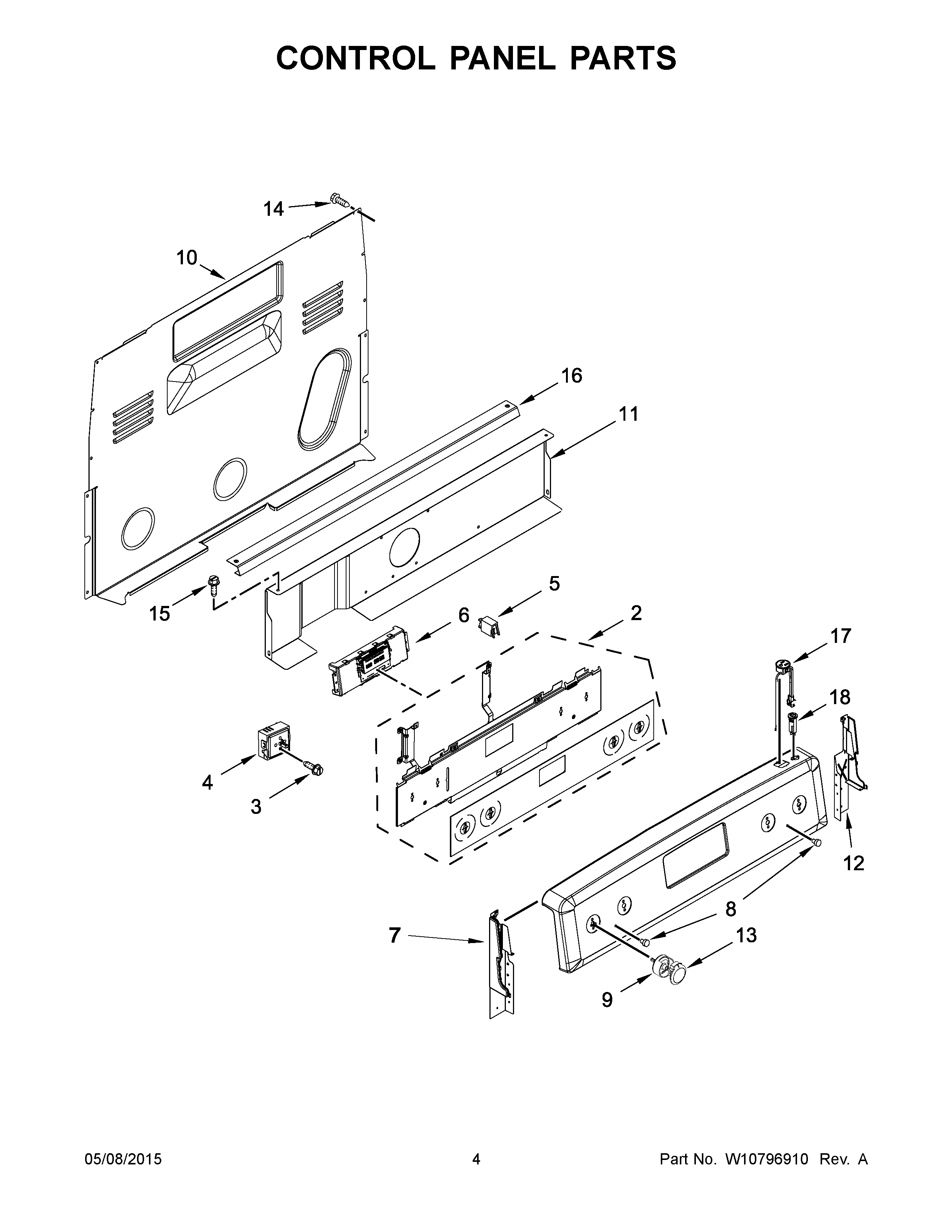

YKFEG510ESS0 03 – CONTROL PANEL PARTS

YKFEG510ESS0 03 – CONTROL PANEL PARTS

Written by

in

YKFEG510ESS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (STAINLESS)
2ACTIVE OVERLAY ASSEMBLY (BLACK)
3WP3400882 Whirlpool Screw
4BW10917724 Whirlpool Infinite Switch
4W10911303 Whirlpool Infinite Switch
4ASWITCH-INF
5WP8523265 Whirlpool Indicator Light
6CONTROL. MAXWELL
7W11404310 Whirlpool Panel Endcap
8WP3196068 Whirlpool Light Lens
9W11368920 Whirlpool Knob Bezel
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W11219665 Whirlpool Panel Endcap
13W10645810 Whirlpool Knob
14W11245710 Whirlpool Refrigerator Screw
15SCREW
16W10525121 Whirlpool Control Bracket
17W10861164 Whirlpool Electrical Outlet
18WP9757602 Whirlpool Breaker
