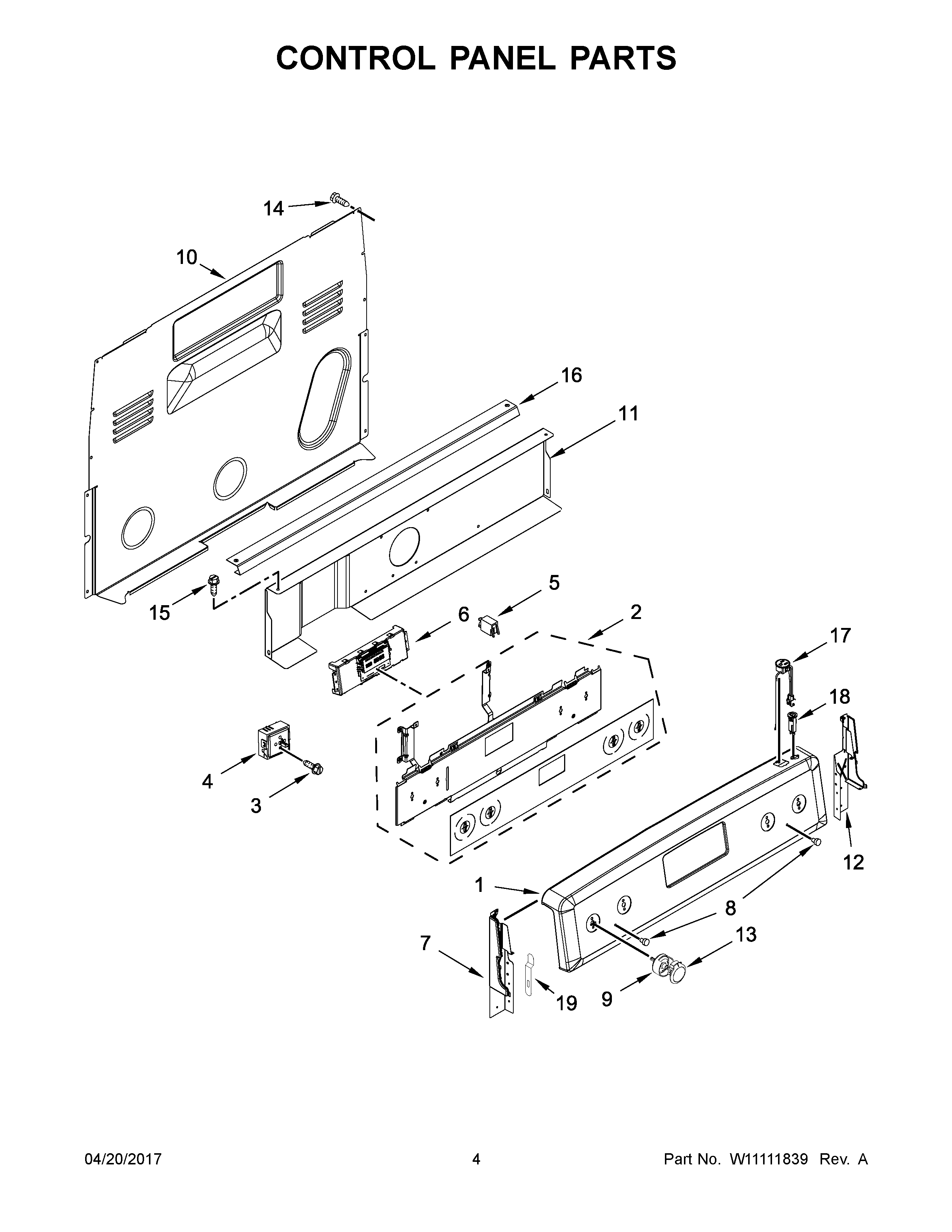

YKFEG510ESS2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE (STAINLESS)
2	ACTIVE OVERLAY ASSEMBLY (BLACK)
3	WPW10067840 Whirlpool Screw
4B	W10917724 Whirlpool Infinite Switch
4	W10911303 Whirlpool Infinite Switch
4A	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	CONTROL. MAXWELL
7	W11404310 Whirlpool Panel Endcap
8	WP3196068 Whirlpool Light Lens
9	W11368920 Whirlpool Knob Bezel
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12	W10409003 Whirlpool Endcap Panel
13	W10915061 Whirlpool Knob
14	W11245710 Whirlpool Refrigerator Screw
15	SCREW
16	W10525121 Whirlpool Control Bracket
17	RECEPTACLE (BLACK)
18	WP9757602 Whirlpool Breaker
19	3196200 Whirlpool Clip
